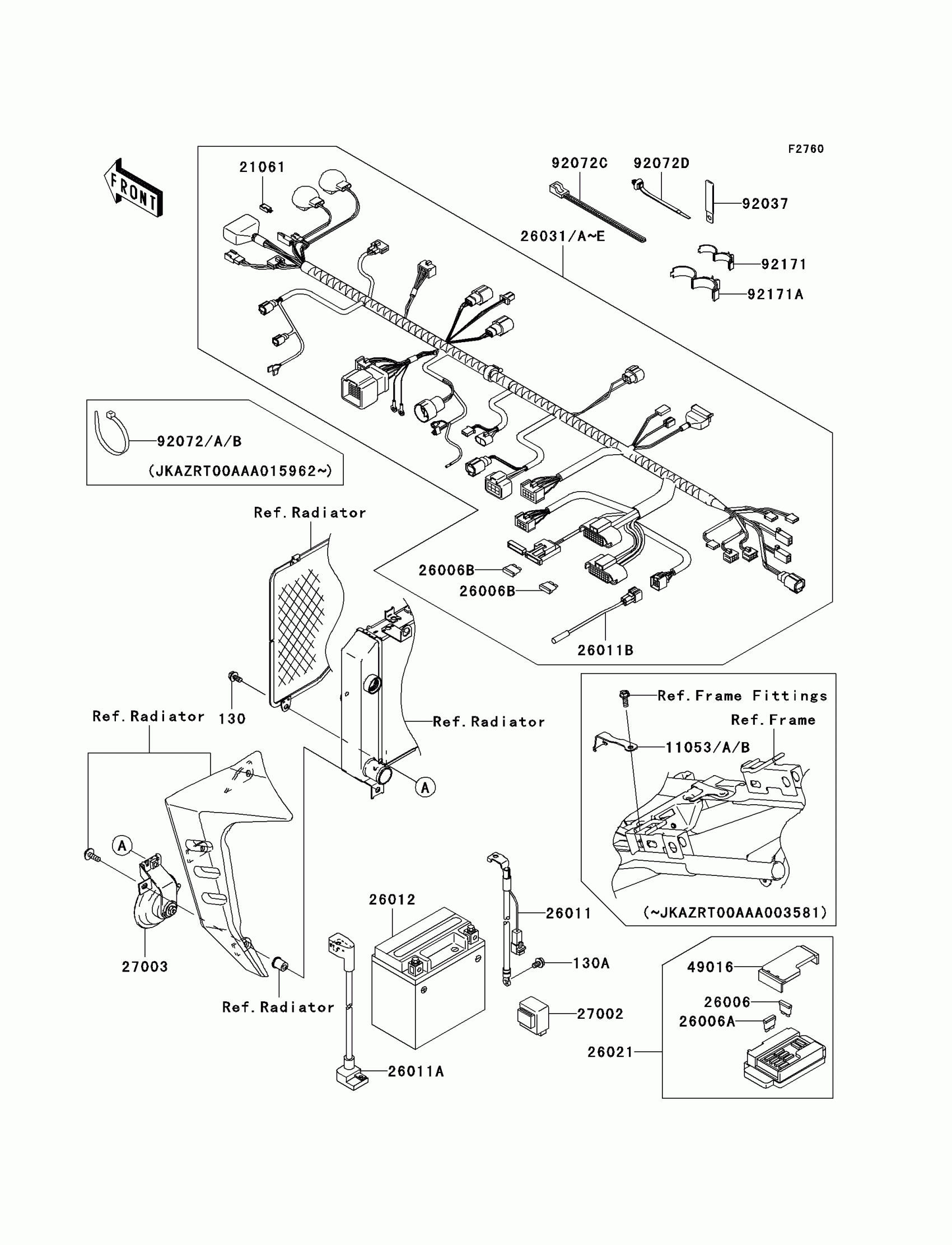

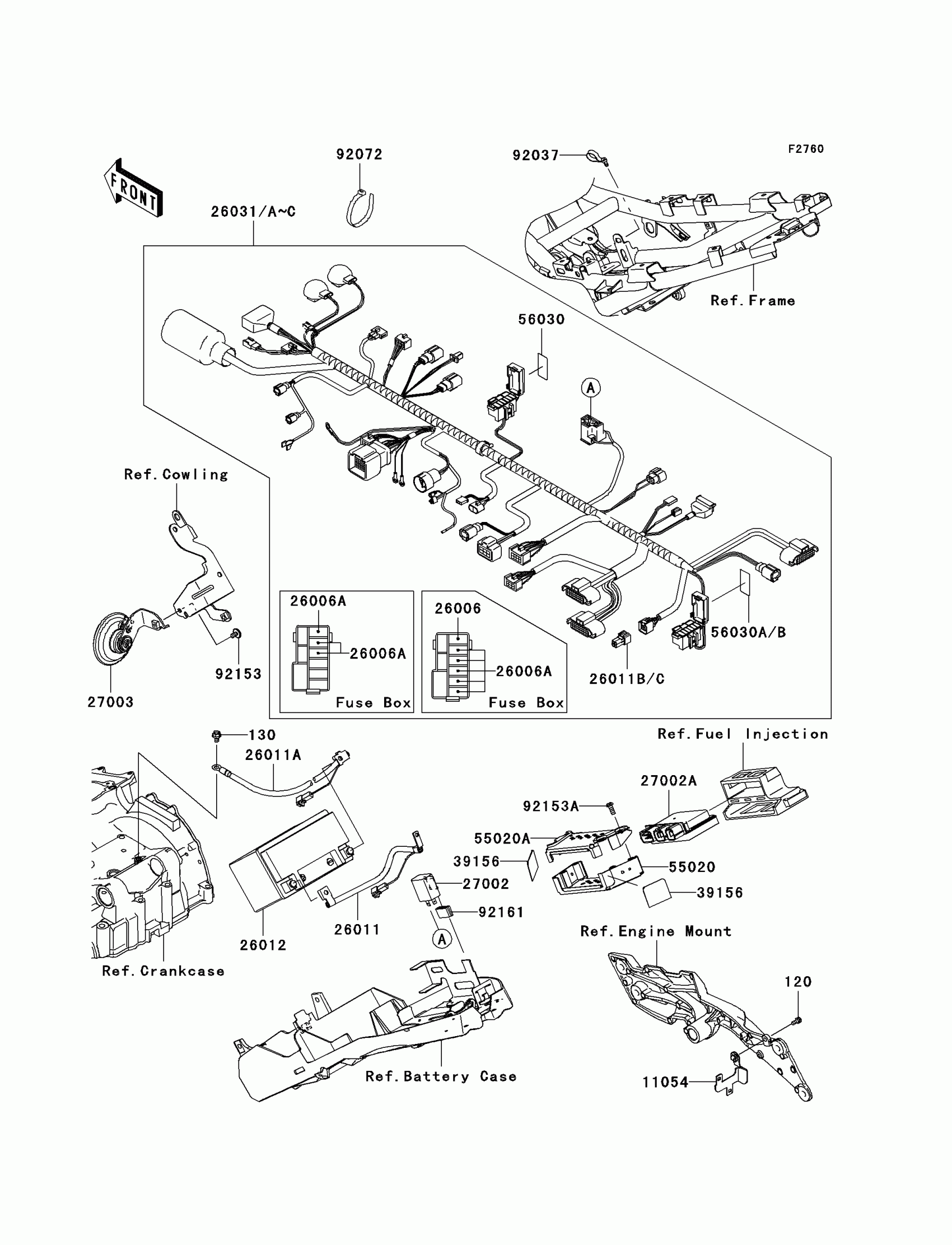

Kawasaki Z1000 (European) Chassis Electrical Equipment Diagram

Description

Price

21061

RECTIFIER

21061-0001

$29.81

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26006B

FUSE,15A

26006-1075

$4.86

26011

WIRE-LEAD,BATTERY(-)

26011-0005

$49.29

26011A

WIRE-LEAD,BATTERY(+)

26011-0006

$47.97

26011B

WIRE-LEAD,DIAGNOSIS

26011-1774

$15.02

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

$145.53

26021

JUNCTION BOX

26021-0001

$166.72

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN

27003-0002

$95.53

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072A

BAND,L=202

92072-1195

$1.16

92072B

BAND,L=202

92072-1195

$1.16

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

92072C

BAND,L=250

92072-1237

$1.55

92072D

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92171

CLAMP,DIA=15

92171-1424

$3.19

92171A

CLAMP,25MM DIA.

92171-1559

$5.39

26031B

HARNESS,MAIN

26031-0092

Unavailable

26031C

HARNESS,MAIN

26031-0095

Unavailable

26031D

HARNESS,MAIN

26031-0096

Unavailable

92072

BAND,L=202

92072-1195

$1.16
