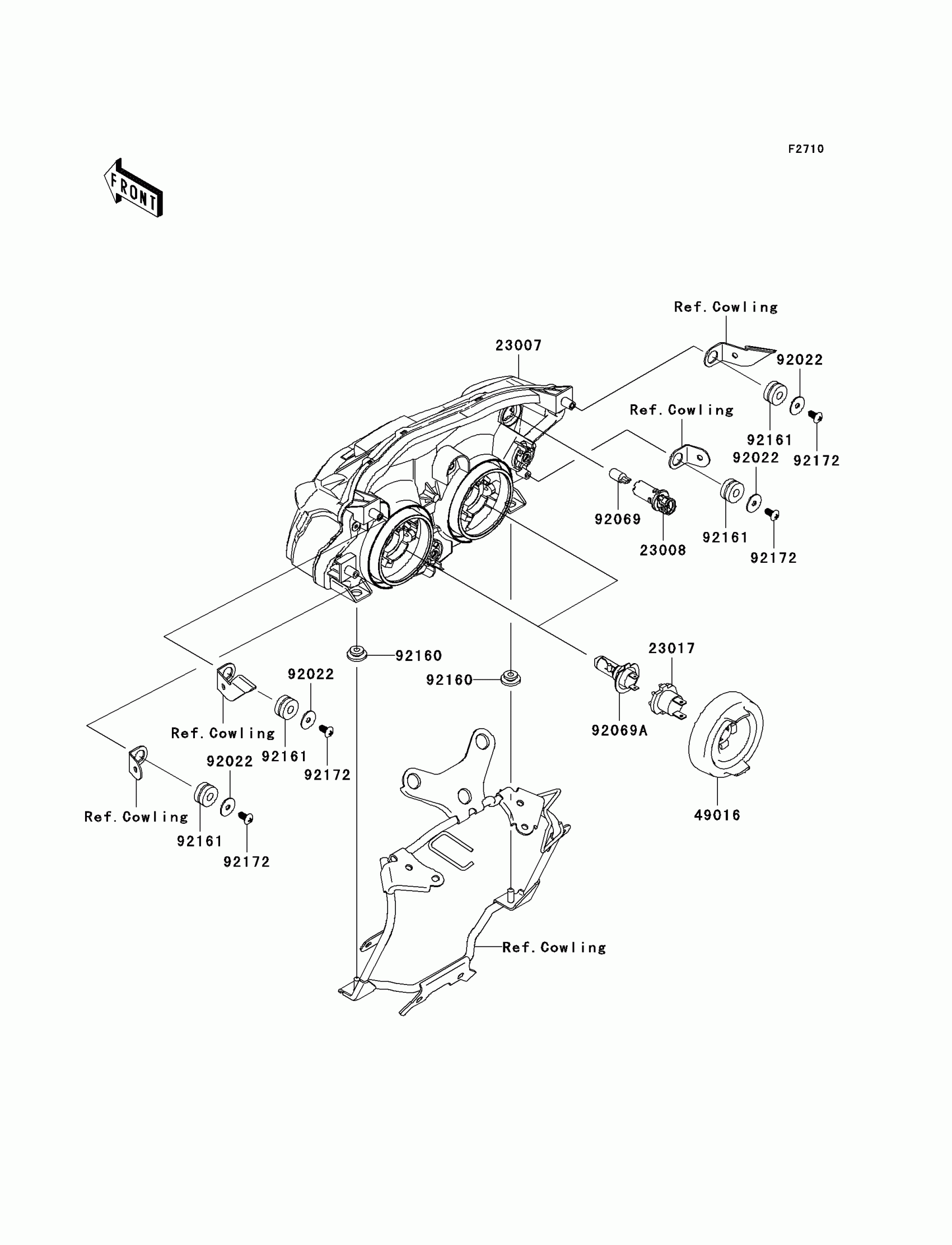

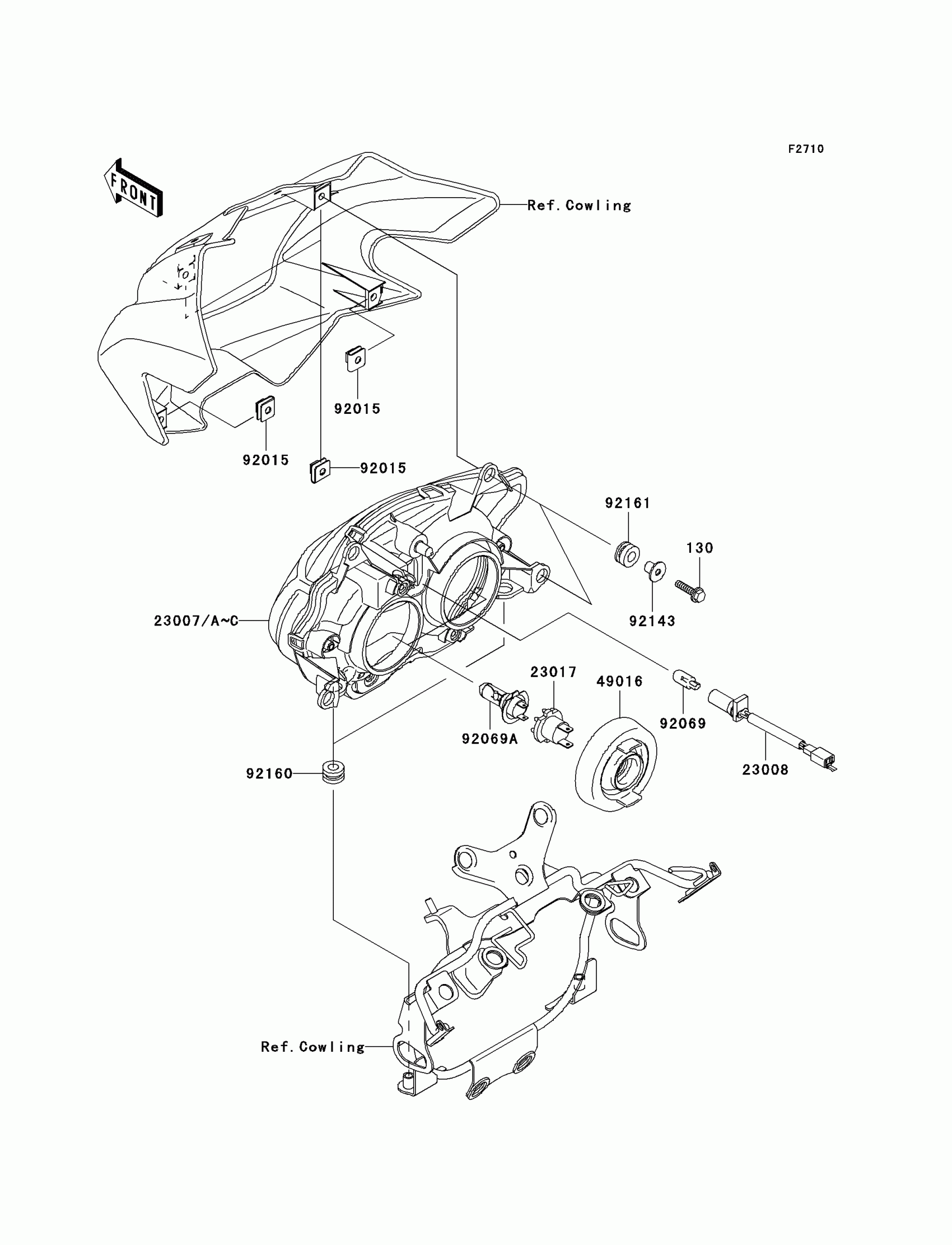

Kawasaki Z1000 (European) Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130J0625

$2.62

23008

SOCKET-ASSY,HEAD LAMP

23008-1686

$24.38

23017

SOCKET,HEAD LAMP

23017-1067

$90.48

49016

COVER-SEAL,HEAD LAMP

49016-1209

$16.38

92015

NUT,6MM

92015-1094

$8.58

92069

BULB,12V 5W

92069-1016

$6.52

92069A

BULB,12V 55W,H7

92069-1126

Unavailable

92143

COLLAR

92143-1353

$8.58

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER

92161-0036

$2.80

23007

LENS-COMP,HEAD LAMP

23007-0017

Unavailable

23007A

LENS-COMP,HEAD LAMP

23007-0043

Unavailable
