2005 Kawasaki Z1000 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

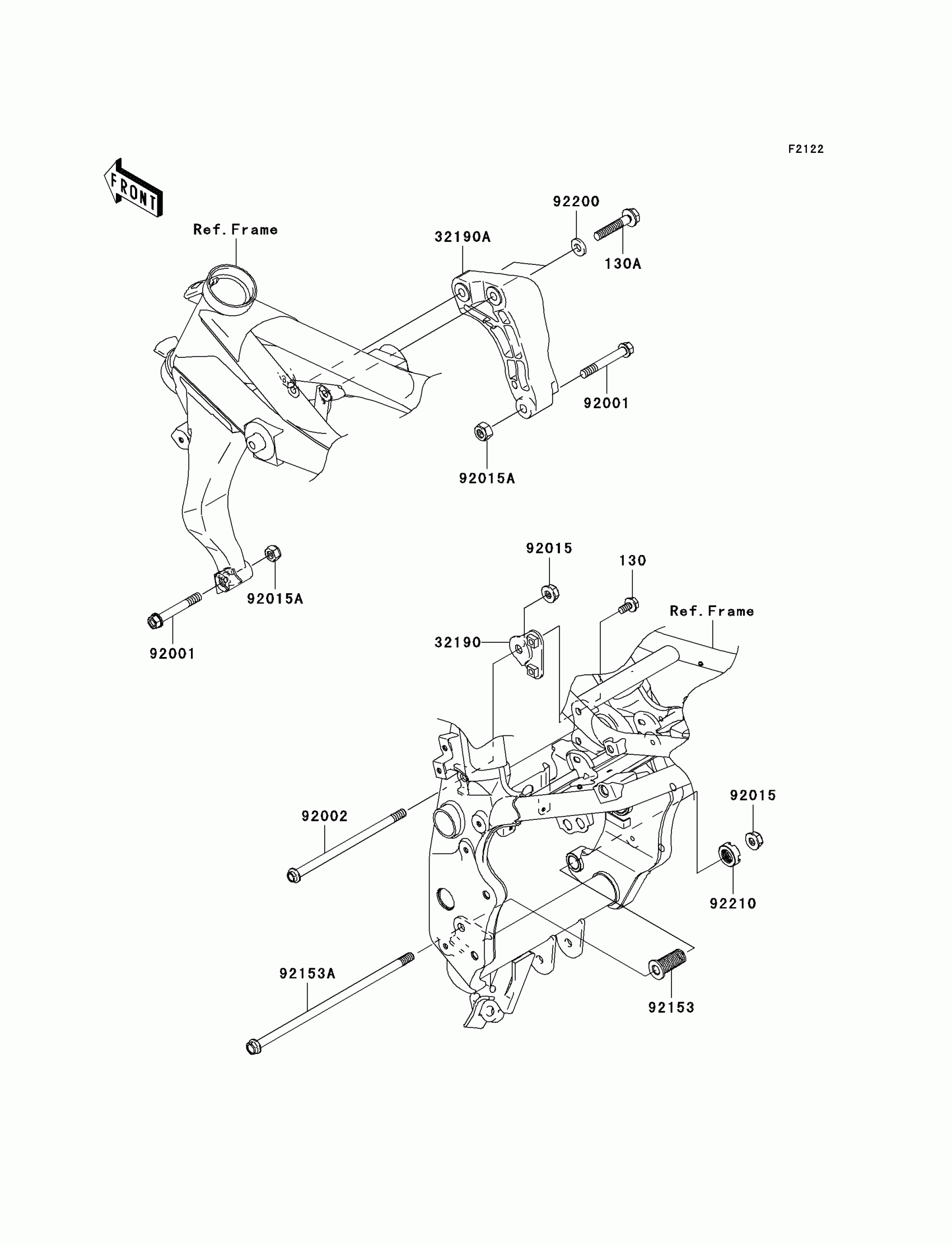

2005 Kawasaki Z1000 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

130A

BOLT-FLANGED,10X55

130J1055

1
Out of stock

32190

1

$12.15

In stock

32190A

1

$73.63

In stock

92001

BOLT,FLANGED,10X70

92001-1618

1

$8.23

In stock

92002

BOLT,10X183

92002-1337

1

$14.88

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92153

BOLT,ENGINE MOUNT,18MM

92153-1098

1
Out of stock

92153A

BOLT,FLANGED,10X240

92153-1271

1
Out of stock

92200

WASHER,10X22X3.2

92200-0121

1
Out of stock

92210

NUT,18MM

92210-1203

1
Out of stock
