2005 Kawasaki Z1000 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

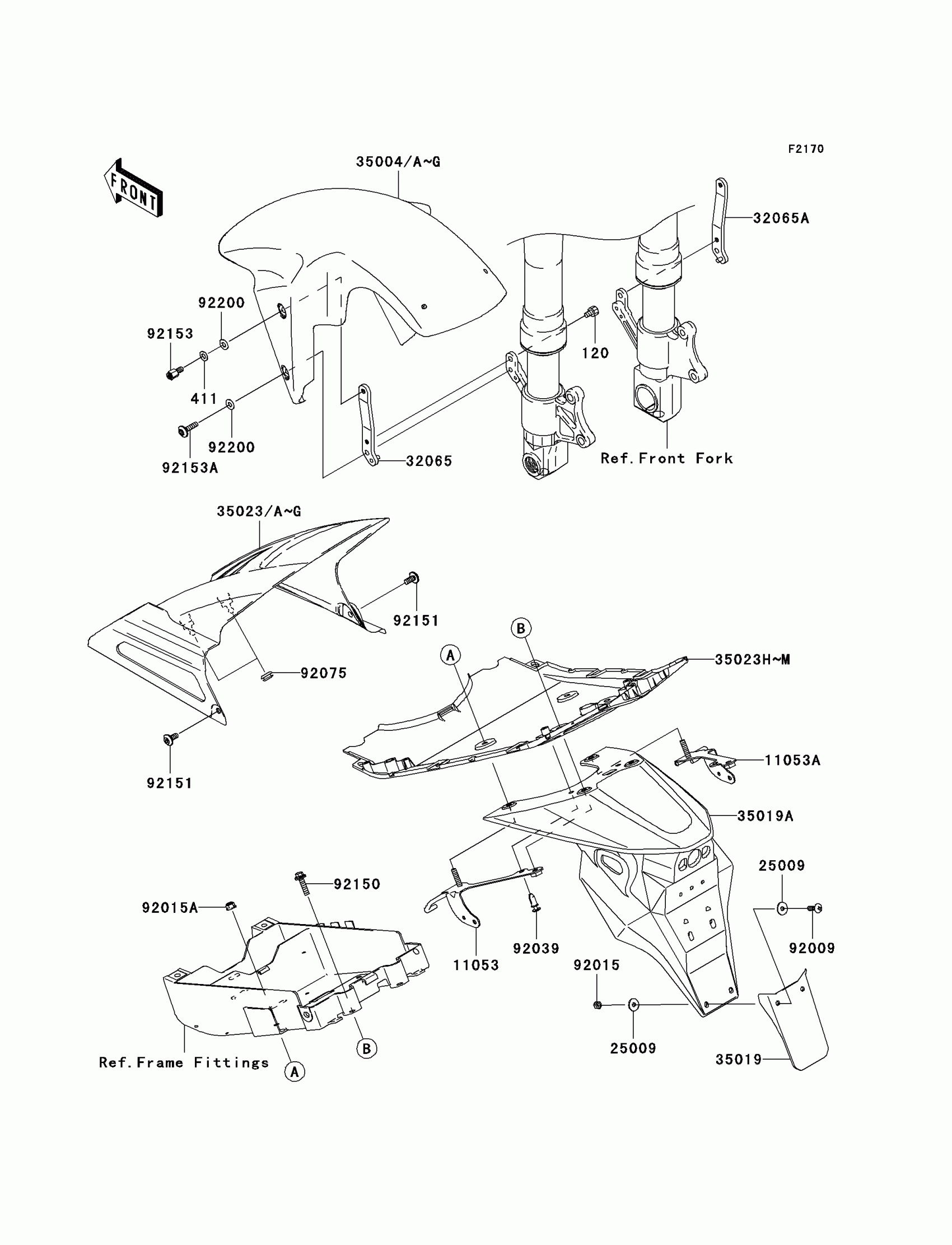

2005 Kawasaki Z1000 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,FLAP,LH

11053-0060

1
Out of stock

11053A

BRACKET,FLAP,RH

11053-0061

1

$17.31

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

32065

BRACKET-FENDER,LH

32065-1376

1
Out of stock

32065A

BRACKET-FENDER,RH

32065-1377

1
Out of stock

35004C

FENDER-FRONT,TITANIUM

35004-0024-725

1

$215.69

In stock

35019

FLAP

35019-0006

1

$11.92

In stock

35019A

FLAP,REAR FENDER

35019-0007

1

$70.70

In stock

35023D

1

$256.54

In stock

35023L

FENDER-REAR,CNT,TITANIUM

35023-1602-725

1

$167.54

In stock

92009

SCREW,5X14

92009-1653

1
Out of stock

92015

NUT,LOCK,5MM

92015-1221

1
Out of stock

92015A

1

$3.72

In stock

120

BOLT-SOCKET,6X10

120S0610

1
Out of stock

411

WASHER PLAIN

411F0600

1

$1.08

In stock

92039

RIVET

92039-1286

1

$2.53

In stock

92075

DAMPER,6X16X7

92075-1011

1

$5.84

In stock

92150

BOLT,6X25

92150-1829

1

$3.43

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92153

BOLT,6MM

92153-0335

1
Out of stock

92153A

BOLT,SOCKET,6X23

92153-1267

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

35004B

FENDER-FRONT,M.S.BLACK

35004-0024-660

1

$212.58

In stock

35023E

FENDER-REAR,INNER,EBONY

35023-1597-6C

1

$257.72

In stock

35023K

FENDER-REAR,CNT,M.S.BLACK

35023-1602-660

1
Out of stock
