2006 Kawasaki Z1000 Cowling Diagram

← All diagrams

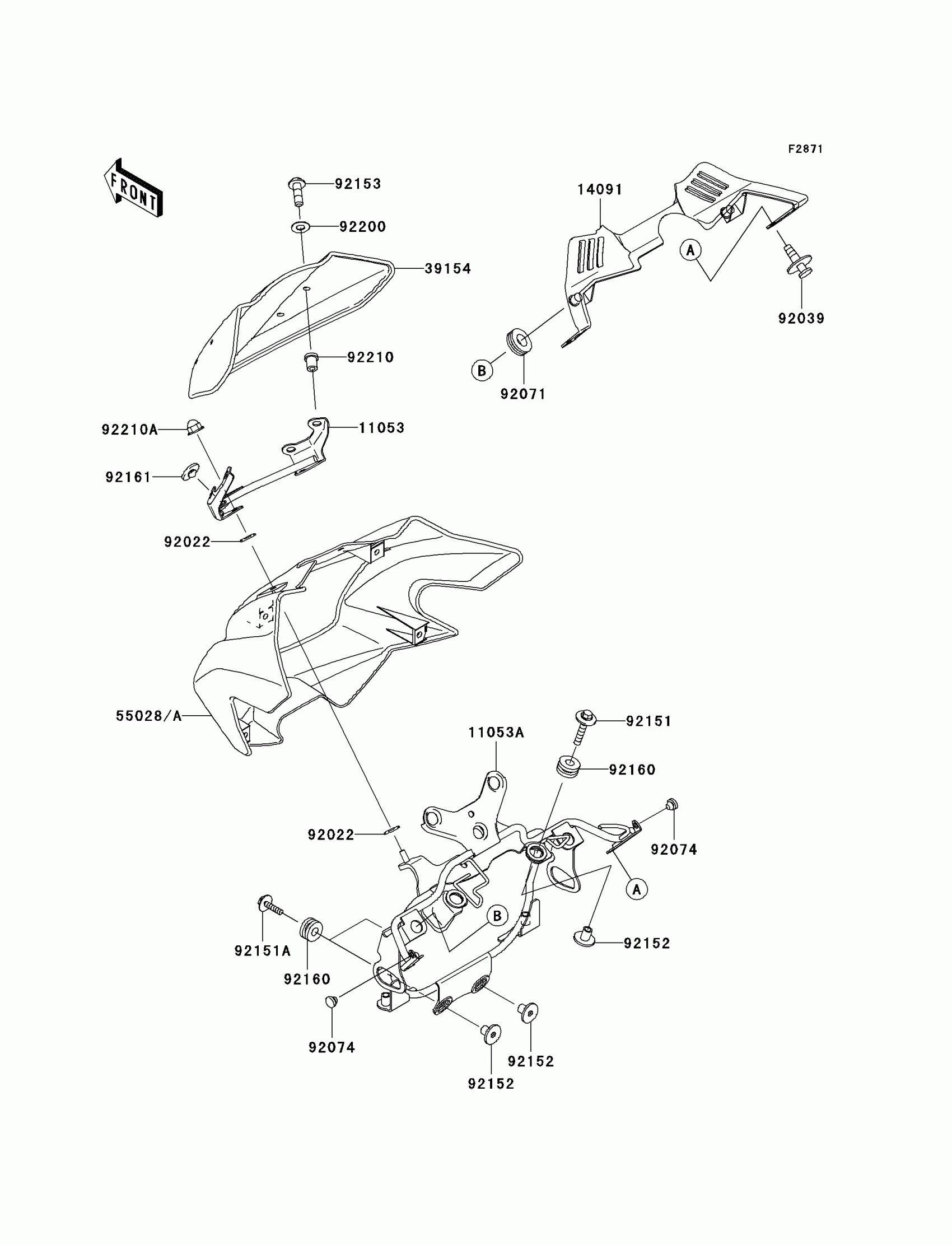

Find the part on the Cowling diagram for your 2006 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki Z1000 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,WINDSHIELD

11053-1161

1

$94.33

In stock

11053A

1

$482.78

In stock

14091

COVER,COWLING,INNER

14091-1549

1

$76.82

In stock

39154

WINDSHIELD

39154-1160

1

$202.27

In stock

55028

COWLING,UPP,BLUE

55028-1459-10E

1

$691.81

In stock

92022

WASHER,6.5X16X1

92022-1143

1

$3.12

In stock

92039

RIVET

92039-1227

1

$1.54

In stock

92071

GROMMET

92071-3737

1

$4.85

In stock

92074

PLUG,7X2

92074-028

1

$3.81

In stock

92151

BOLT,FLANGED,6X30

92151-1105

1

$3.92

In stock

92151A

BOLT,6X25

92151-1241

1

$3.97

In stock

92152

COLLAR

92152-0048

1

$2.29

In stock

92153

BOLT,SOCKET,5X18

92153-0370

1
Out of stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92161

DAMPER,RUBBER

92161-1200

1

$3.35

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,5MM

92210-0001

1
Out of stock

92210A

NUT,CAP,6MM

92210-0003

1
Out of stock

55028A

COWLING,UPP,TITANIUM

55028-1459-725

1

$623.61

In stock
