2012 Kawasaki Z1000 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2012 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

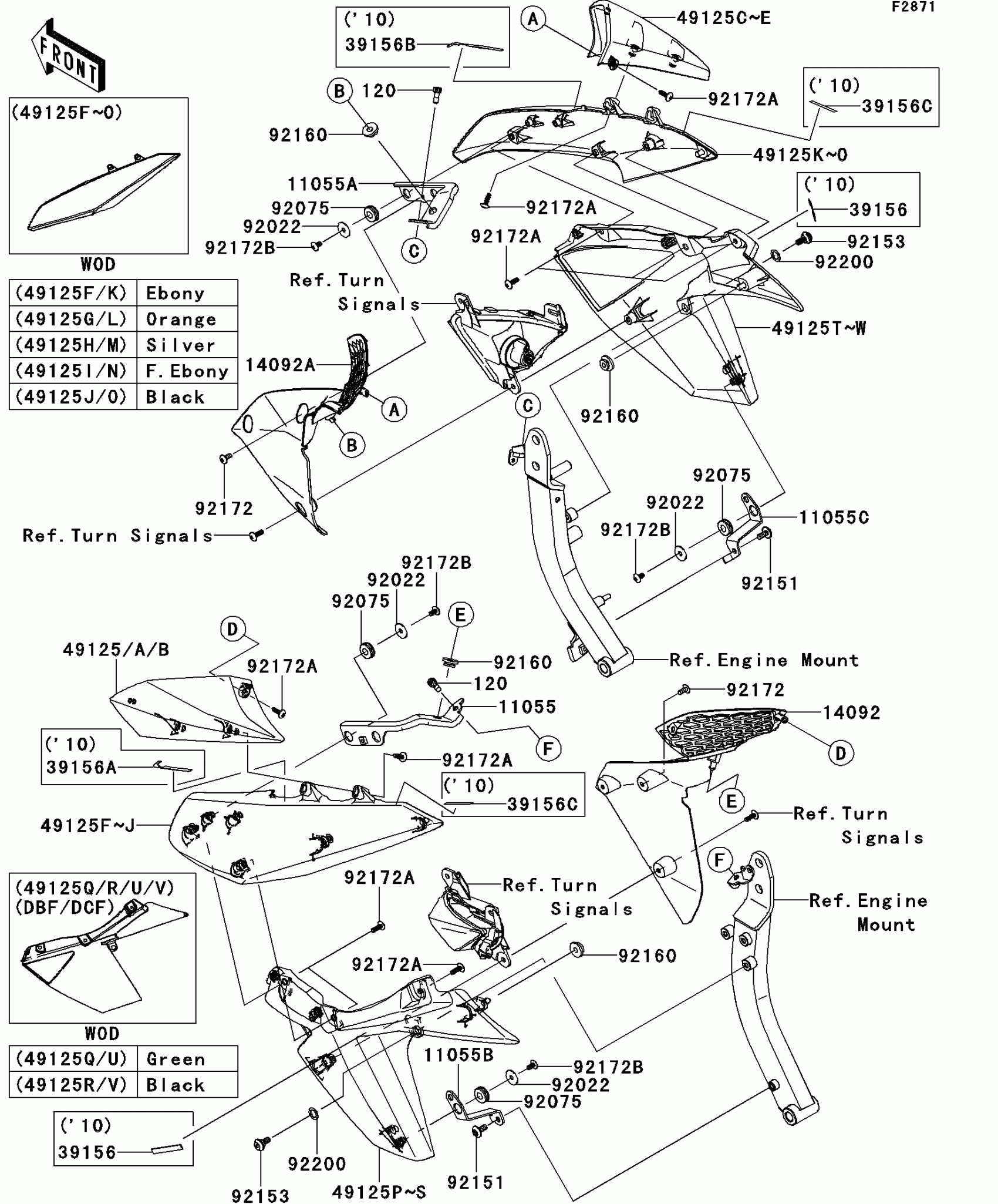

2012 Kawasaki Z1000 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,SHROUD,UPP,LH

11055-1944

1
Out of stock

11055A

BRACKET,SHROUD,UPP,RH

11055-1945

1
Out of stock

11055B

BRACKET,SHROUD,LH

11055-1946

1
Out of stock

11055C

BRACKET,SHROUD,RH

11055-1947

1
Out of stock

14092

COVER,INNER,LH

14092-0014

1
Out of stock

14092A

COVER,INNER,RH

14092-0015

1
Out of stock

49125

SHROUD,UPP,LH,C.B.ORANGE

49125-0044-17L

1
Out of stock

49125C

SHROUD,UPP,RH,C.B.ORANGE

49125-0045-17L

1
Out of stock

49125J

SHROUD,MID,LH,M.S.BLACK

49125-0046-660

1
Out of stock

49125O

SHROUD,MID,RH,M.S.BLACK

49125-0047-660

1
Out of stock

49125R

SHROUD,LWR,LH,F.S.BLACK

49125-0048-18T

1
Out of stock

49125V

SHROUD,LWR,RH,F.S.BLACK

49125-0049-18T

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92075

DAMPER RUBBER

92075-051

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-1956

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92172

SCREW,5X12,GREEN

92172-0008

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0175

1
Out of stock

92172B

SCREW,TAPPING,5X10

92172-1061

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

120

BOLT-SOCKET,6X14

120CB0614

1
Out of stock
