2021 Kawasaki Z H2 Se Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

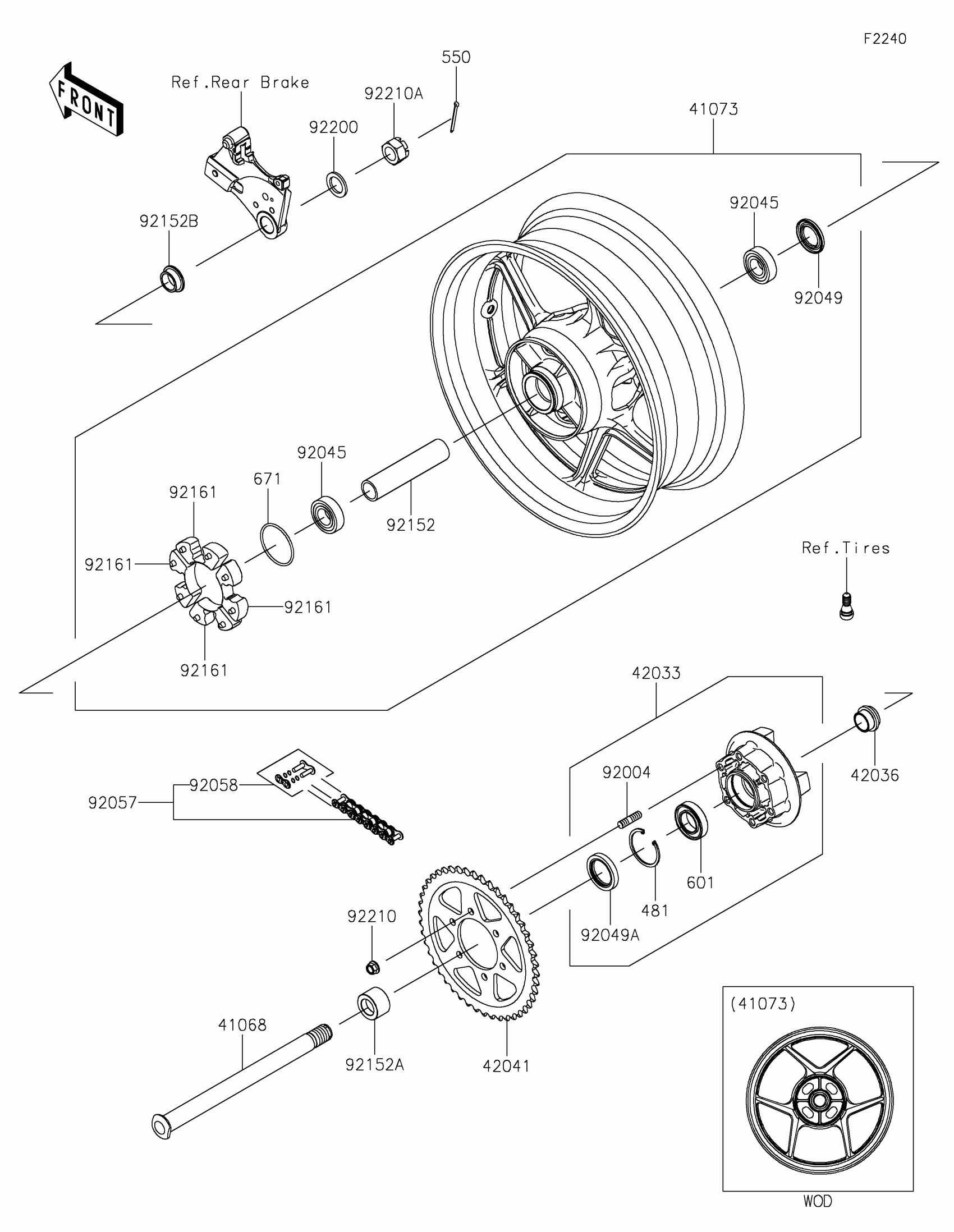

2021 Kawasaki Z H2 Se Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-0655

1
Out of stock

41073

WHEEL-ASSY,RR,G.BLACK

41073-0793-18F

1
Out of stock

42033

COUPLING-ASSY

42033-0593

1
Out of stock

42036

SLEEVE,RR HUB,L=22

42036-1279

1
Out of stock

42041

SPROCKET-HUB,46T

42041-0179

1
Out of stock

481

CIRCLIP

481J5500

1
Out of stock

550

PIN-COTTER,4.0X45

550AA4045

1
Out of stock

601

BEARING-BALL,#6006G

601B6006G

1
Out of stock

671

O RING,60MM

671B2560

1
Out of stock

92004

STUD,10X19

92004-0028

1
Out of stock

92045

BEARING-BALL,25X52X15

92045-0804

1
Out of stock

92049

SEAL-OIL,31X52X5

92049-0722

1
Out of stock

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

1
Out of stock

92057

CHAIN,DRIVE,EK525HZX,118L

92057-0790

1
Out of stock

92058

JOINT-CHAIN

92058-0067

1
Out of stock

92152

COLLAR,25.2X32X144.5

92152-2639

1
Out of stock

92152A

COLLAR,RR AXLE,LH

92152-2640

1
Out of stock

92152B

COLLAR,RR AXLE,RH

92152-2641

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0342

1
Out of stock

92200

WASHER,25.5X38X3.2

92200-0278

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,CASTLE,24MM

92210-0280

1
Out of stock
