2021 Kawasaki Z H2 Se Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

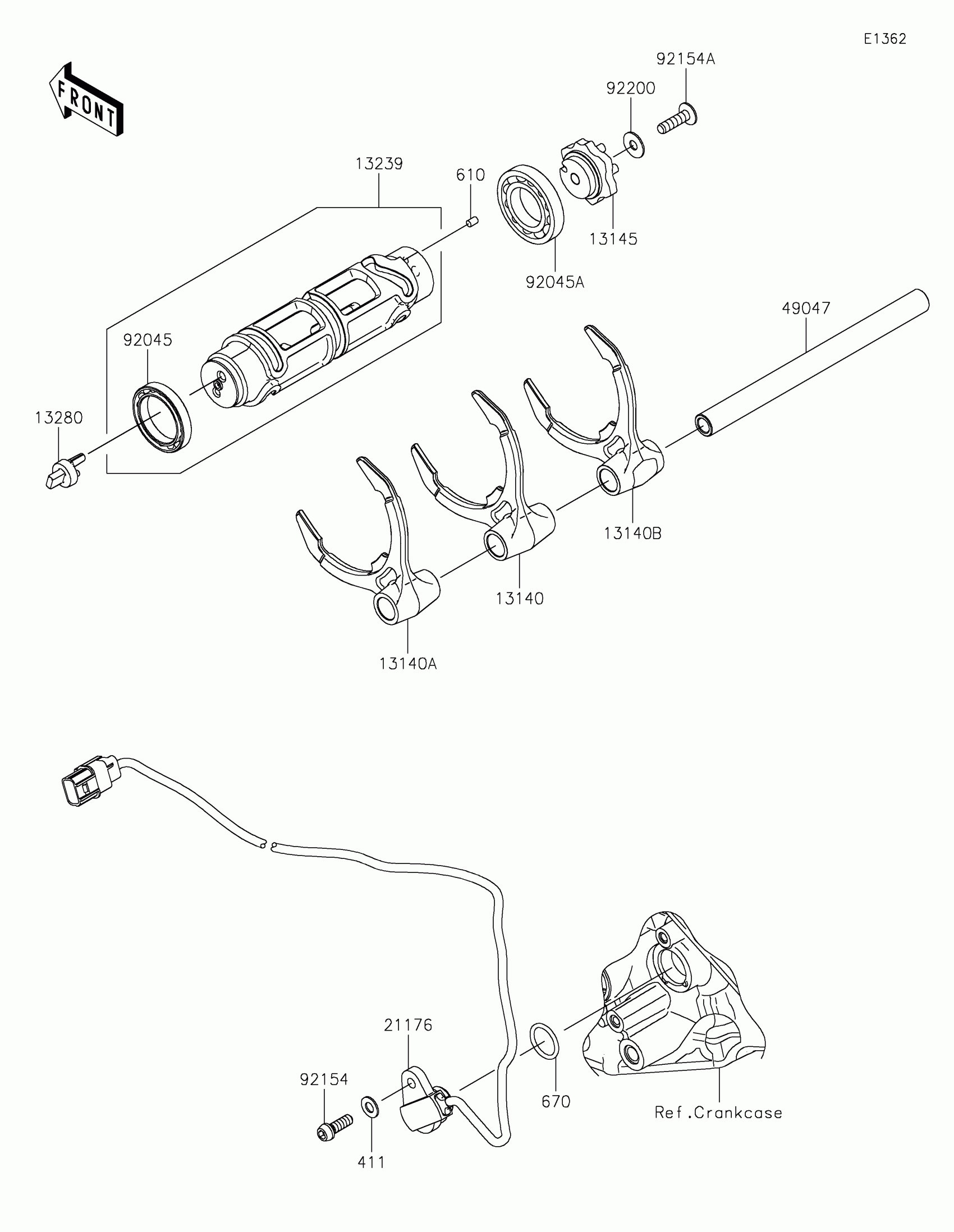

2021 Kawasaki Z H2 Se Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,3RD&4TH

13140-0645

1
Out of stock

13140A

FORK-SHIFT,5TH&6TH

13140-0646

1
Out of stock

13140B

FORK-SHIFT,1ST&2ND

13140-0649

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0572

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0605

1
Out of stock

13280

HOLDER

13280-0964

1
Out of stock

21176

SENSOR,GEAR POSITION

21176-0941

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock

49047

ROD-SHIFT

49047-0635

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

670

O RING,18MM

670D2018

1
Out of stock

92045

BEARING-BALL,6806

92045-0826

1
Out of stock

92045A

BEARING-BALL,16005

92045-1045

1
Out of stock

92154

BOLT,SOCKET,6X18

92154-1455

1
Out of stock

92154A

BOLT,TORX,6X22

92154-2903

1
Out of stock

92200

WASHER,6X16X1

92200-2145

1
Out of stock
