Description

Price

13236

LEVER-COMP,POSITION

13236-0785

$20.86

13236A

LEVER-COMP,CHANGE,PEDAL

13236-0828

$68.40

13242

LEVER-ASSY-CHANGE

13242-0168

$51.56

13242A

LEVER-ASSY-CHANGE

13242-0170

$119.45

21176

SENSOR,QUICK SHIFTER

21176-0952

$201.84

39111

ROD-TIE

39111-0378

$101.99

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92026

SPACER,14X20X1.0

92026-1534

$3.85

92145

SPRING,RETURN

92145-0415

$11.32

92145A

SPRING

92145-1663

$10.24

92145B

SPRING,POSITION LEVER

92145-1664

$10.93

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92153

BOLT,6X20

92153-1505

$7.61

92154

BOLT,RETURN SPRING

92154-1838

$8.81

92154A

BOLT

92154-1884

$26.18

92161

DAMPER,CHANGE PEDAL

92161-2389

$4.65

92173

CLAMP

92173-2198

$1.32

92180

SHIM,T=2.6

92180-0963

Unavailable

92180A

SHIM,T=2.8

92180-0964

Unavailable

92180B

SHIM,T=3.0

92180-0965

$29.79

92180C

SHIM,T=3.2

92180-0966

Unavailable

92180D

SHIM,T=3.4

92180-0967

Unavailable

92200

WASHER

92200-0265

$1.85

92200A

WASHER,8.2X30X1.5

92200-0810

$3.36

92200B

WASHER,6.5X18X1.6

92200-0996

$7.90

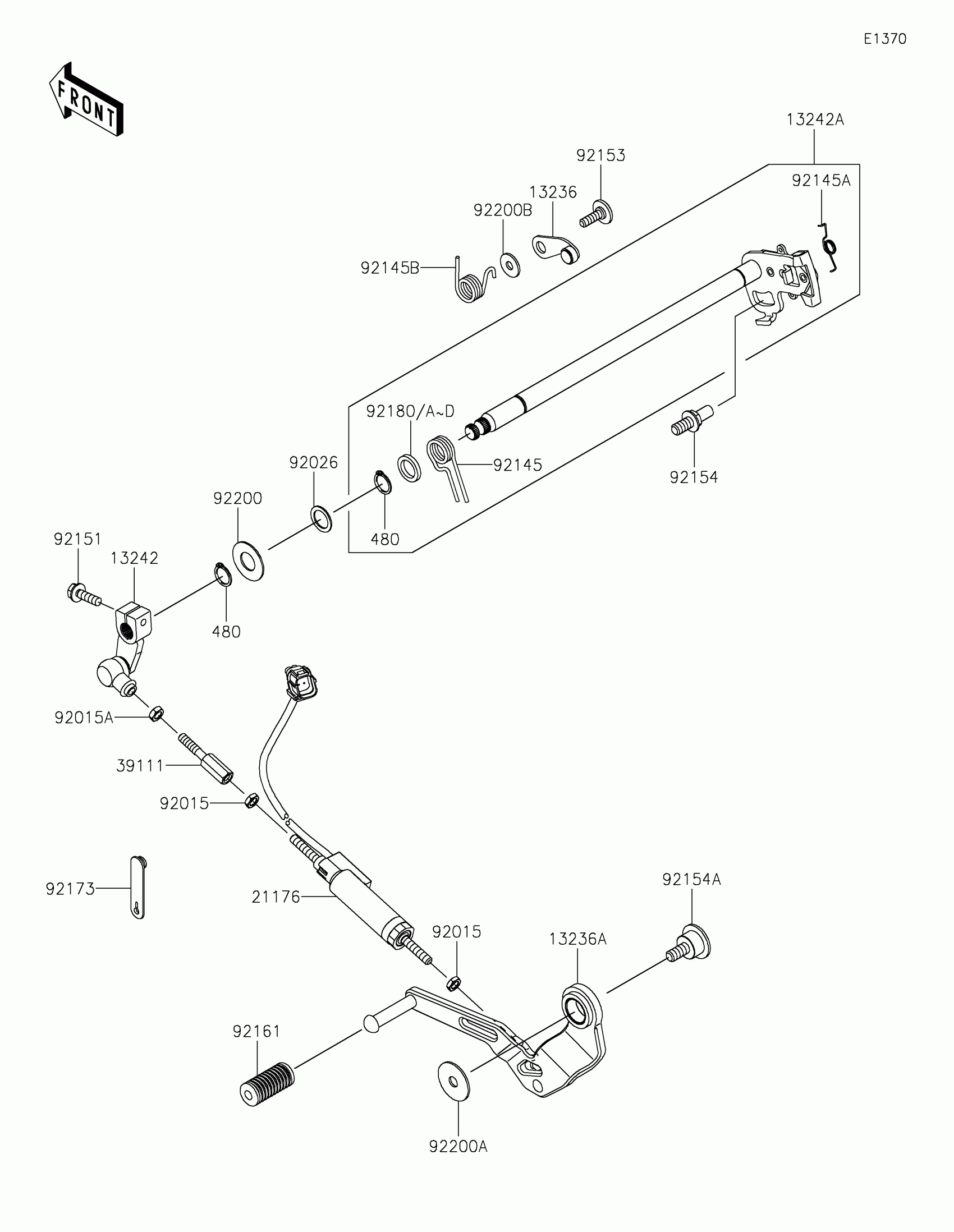

Kawasaki Z H2 SE Gear Change Mechanism Diagram

LEVER-COMP,POSITION

LEVER-COMP,CHANGE,PEDAL

LEVER-ASSY-CHANGE

LEVER-ASSY-CHANGE

SENSOR,QUICK SHIFTER

ROD-TIE

CIRCLIP-TYPE-C,14MM

NUT,6MM

NUT,LEFT HANDED,6MM

SPACER,14X20X1.0

SPRING,RETURN

SPRING

SPRING,POSITION LEVER

BOLT,FLANGED,6X20

BOLT,6X20

BOLT,RETURN SPRING

BOLT

DAMPER,CHANGE PEDAL

CLAMP

SHIM,T=2.6

SHIM,T=2.8

SHIM,T=3.0

SHIM,T=3.2

SHIM,T=3.4

WASHER

WASHER,8.2X30X1.5

WASHER,6.5X18X1.6
