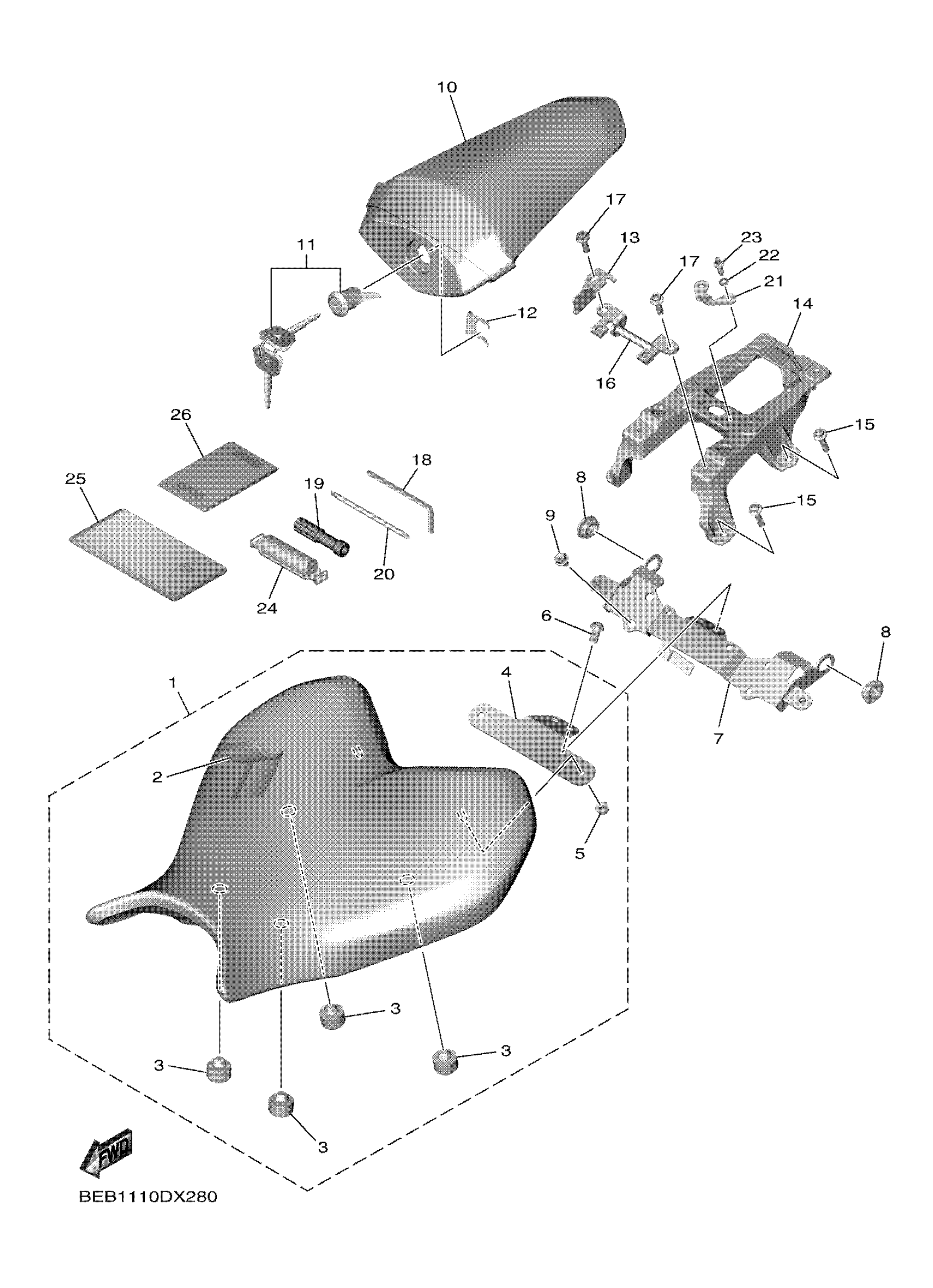

Yamaha YZFR7RL (YZFR7) BVA3 2024 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

BEB-24710-00-00

$134.85

2

SEAT COVER COMP.

BEB-2470F-00-00

$65.94

3

STOPPER MAIN STAND

278-27114-00-00

$7.90

4

STAY, REAR

BEB-24716-00-00

$15.55

5

NUT, U FLANGE

95604-06200-00

$2.19

6

BOLT, BUTTON

92017-08014-00

$6.22

7

BRACKET

BEB-21131-00-00

$63.55

8

GROMMET(4DN)

90480-01558-00

$3.68

9

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.58

10

TANDEM SEAT ASSY

BEB-24750-00-00

$101.51

11

ROTOR SET

2CR-W2470-00-00

$55.57

12

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

13

BRACKET, SEAT

BEB-24728-00-00

$5.12

14

STAY, SEAT

BEB-2471A-00-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-06349-00

$2.24

16

BRACKET, SEAT LOCK

2CR-2478X-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

18

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

19

GRIP, DRIVER

2H7-28151-00-00

Unavailable

20

DRIVER

137-28152-00-00

Unavailable

21

HOLDER, TOOL

BEB-28170-00-00

Unavailable

22

DAMPER

5SL-84753-00-00

Unavailable

23

RIVET

90269-07007-00

Unavailable

24

BAND, BATTERY

BEB-82131-00-00

Unavailable

25

TOOL KIT

B5U-28100-00-00

Unavailable

26

POUCH

4KG-28186-11-00

Unavailable
