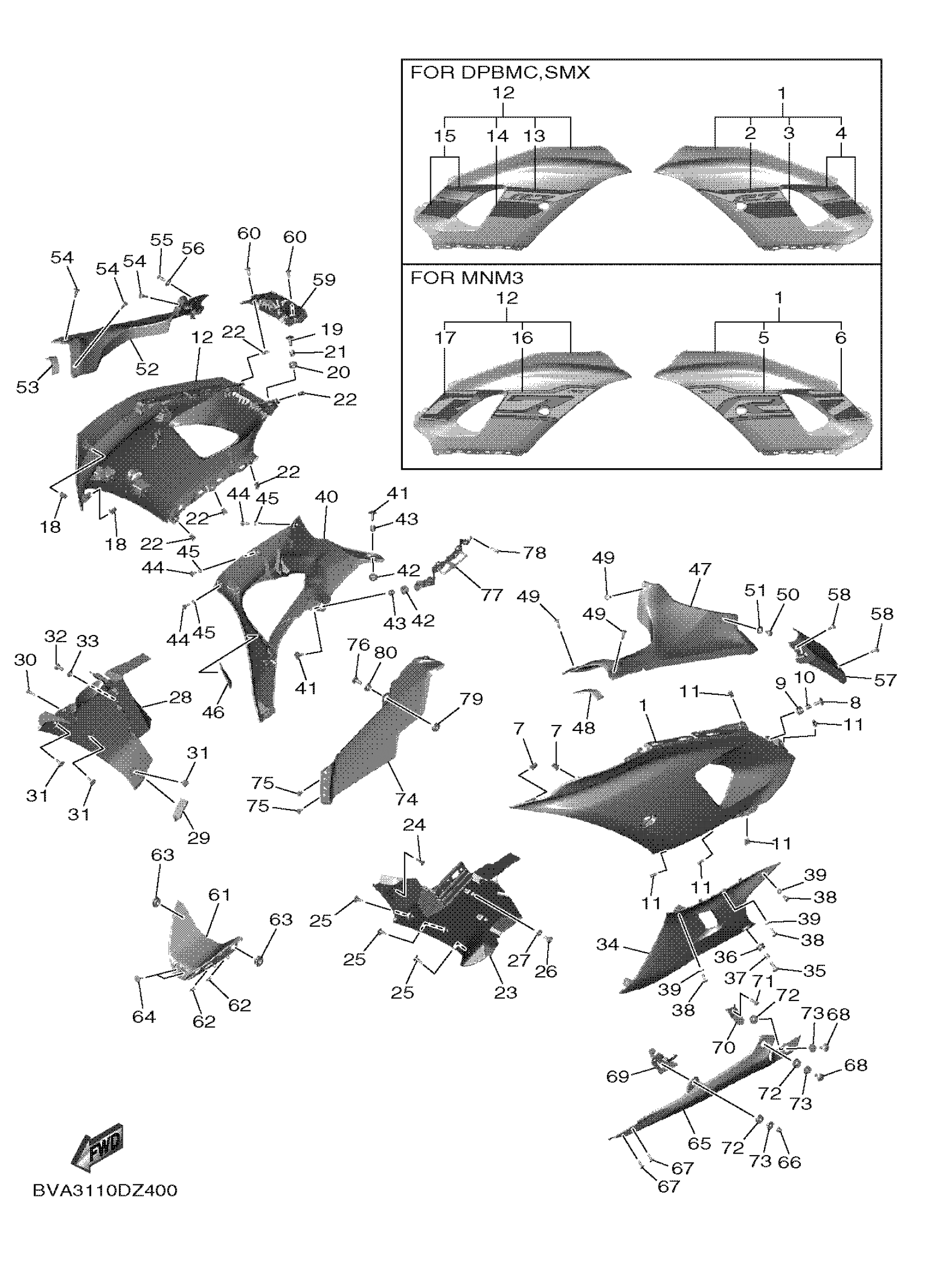

Yamaha YZFR7RL (YZFR7) BVA3 2024 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSY 1

BEB-W283U-50-P2

$176.88

2

GRAPHIC 1

BVA-28391-10-00

$41.12

3

GRAPHIC 3

BVA-28393-10-00

$24.58

4

GRAPHIC 5

BVA-28398-10-00

$29.79

7

CLAMP

90464-07018-00

$0.58

8

BOLT

90111-06040-00

$3.14

9

GROMMET

90480-14003-00

$5.81

10

COLLAR

90387-06260-00

$5.81

11

NUT, SPRING(1YT)

90183-05042-00

$0.86

12

PANEL ASSY 2

BEB-W283V-50-P2

$176.88

13

GRAPHIC 2

BVA-28392-10-00

$41.12

14

GRAPHIC 4

BVA-28394-10-00

$23.28

15

GRAPHIC 6

BVA-28399-10-00

$28.15

18

CLAMP

90464-07018-00

$0.58

19

BOLT

90111-06040-00

$3.14

20

GROMMET

90480-14003-00

$5.81

21

COLLAR

90387-06260-00

$5.81

22

NUT, SPRING(1YT)

90183-05042-00

$0.86

23

PANEL, INNER 1

BEB-2836K-00-00

Unavailable

24

RIVET

90269-06008-00

Unavailable

25

RIVET

90269-06021-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

27

COLLAR

90387-06130-00

Unavailable

28

PANEL, INNER 2

BEB-2836L-00-00

Unavailable

29

DAMPER 2

BEB-28227-00-00

Unavailable

30

RIVET

90269-06008-00

Unavailable

31

RIVET

90269-06021-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

33

COLLAR

90387-06130-00

Unavailable

34

PANEL 3

BEB-2172G-00-P2

Unavailable

35

BOLT

90111-06040-00

$3.14

36

GROMMET

90480-14003-00

$5.81

37

COLLAR

90387-06260-00

$5.81

38

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

39

. WASHER, PLATE

90202-05088-00

$5.71

40

PANEL 4

BEB-2172H-00-P2

Unavailable

41

BOLT

90111-06040-00

$3.14

42

GROMMET

90480-14003-00

$5.81

43

COLLAR

90387-06260-00

$5.81

44

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

45

. WASHER, PLATE

90202-05088-00

$5.71

46

SEAT 1

BEB-2838G-00-00

Unavailable

47

PANEL, CONSOLE 1

BEB-2837L-00-P4

Unavailable

48

DAMPER, MUFFLER 2

7NJ-14757-00-00

Unavailable

49

RIVET

90269-06001-00

Unavailable

50

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

51

. WASHER, PLATE

90202-05088-00

$5.71

52

PANEL, CONSOLE 2

BEB-2837M-00-P4

Unavailable

53

DAMPER, MUFFLER 2

7NJ-14757-00-00

Unavailable

54

RIVET

90269-06001-00

Unavailable

55

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

56

. WASHER, PLATE

90202-05088-00

$5.71

57

COVER 1

BEB-28219-00-00

Unavailable

58

SCREW, TAPPING

90167-05080-00

Unavailable

59

COVER 2

BEB-28229-00-00

Unavailable

60

SCREW, TAPPING

90167-05080-00

Unavailable

61

PANEL, INNER 3

BEB-2836M-00-00

Unavailable

62

NUT, SPRING(1YT)

90183-05042-00

$0.86

63

GROMMET(4BH)

90480-01559-00

Unavailable

64

RIVET

90269-06021-00

Unavailable

65

PROTECTOR 1

BEB-2834V-10-P4

Unavailable

66

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

67

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

68

BOLT

90111-06040-00

$3.14

69

BRACKET 1

BEB-2836A-00-00

Unavailable

70

BRACKET 2

BEB-2836E-00-00

Unavailable

71

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

72

GROMMET(2JG)

90480-14477-00

Unavailable

73

COLLAR

90387-06323-00

Unavailable

74

PROTECTOR 2

BEB-2834W-10-P4

Unavailable

75

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

76

BOLT

90111-06040-00

$3.14

77

BRACKET 3

BEB-2836F-00-00

Unavailable

78

CLAMP

90464-36005-00

$0.91

79

GROMMET(2JG)

90480-14477-00

Unavailable

80

COLLAR

90387-06323-00

Unavailable
