2017 Yamaha R3 (YZFR3HL) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

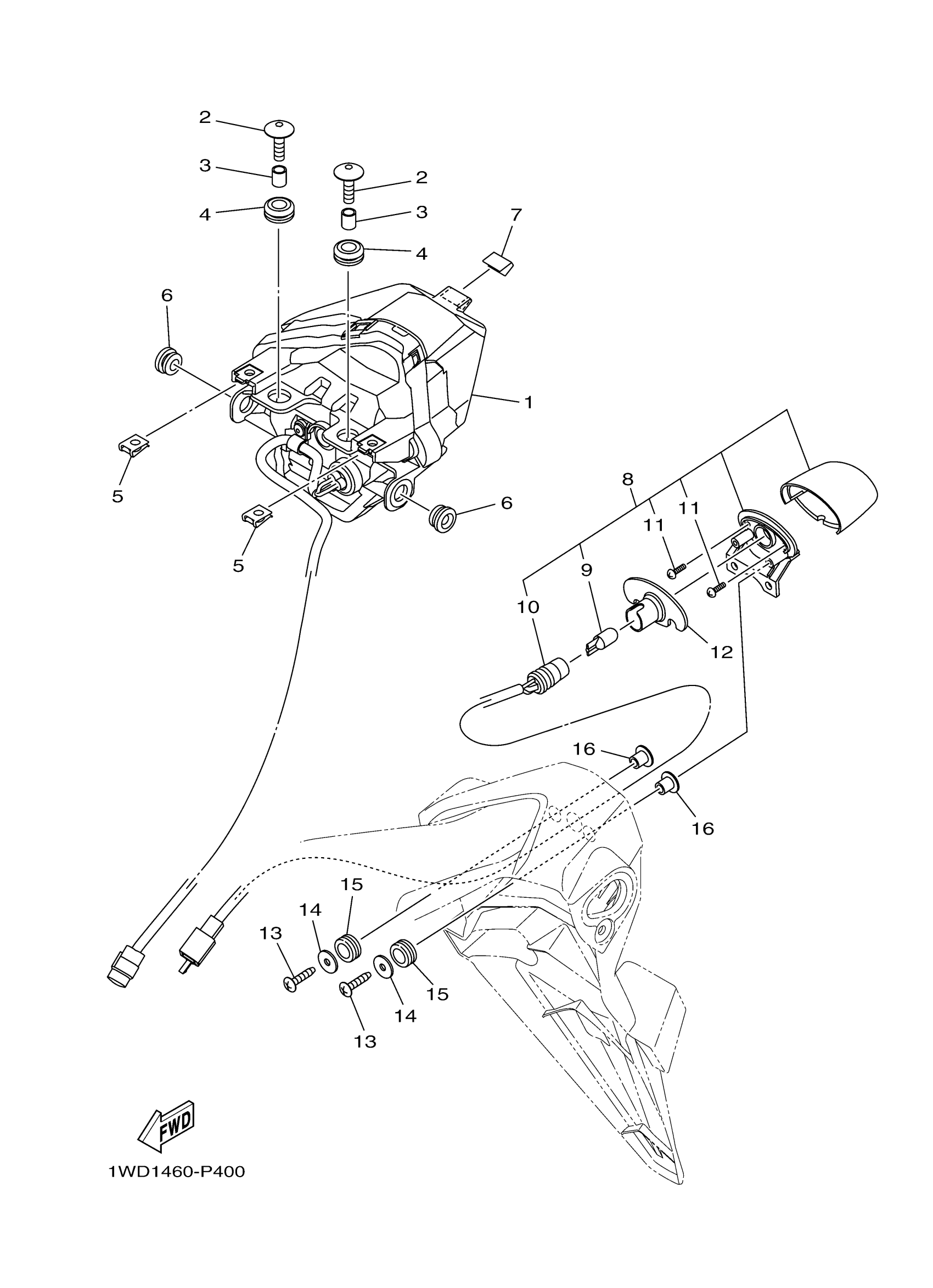

2017 Yamaha R3 (YZFR3HL) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASS

1WD-H4710-02-00

—

$311.91

In stock

2

BOLT,HEX. SOCKET BUTTON

90111-06117-00

1

$1.46

In stock

3

COLLAR

90387-067V1-00

1
Out of stock

4

GROMMET

90480-13001-00

1

$0.75

In stock

5

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

6

GROMMET

90480-10003-00

1

$6.28

In stock

7

SEAL 1

1WD-F1732-00-00

1

$0.98

In stock

8

LICENCE LIGHT ASSY

1WD-H4740-00-00

—
Out of stock

9

BULB (12V-5W)

1WD-H4744-00-00

1

$12.26

In stock

10

CORD, LICENCE LIGHT

1WD-H4547-00-00

1

$5.97

In stock

11

. SCREW

1WD-H4726-00-00

1

$0.43

In stock

12

DAMPER

1WD-H4753-00-00

1

$1.11

In stock

13

SCREW, TAPPING

97707-40020-00

1

$0.49

In stock

14

WASHER, PLATE (8M6)

90201-047A2-00

1
Out of stock

15

GROMMET

90480-11009-00

1

$0.78

In stock

16

COLLAR

90387-05042-00

—

$4.77

In stock
