2017 Yamaha R3 (YZFR3HL) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

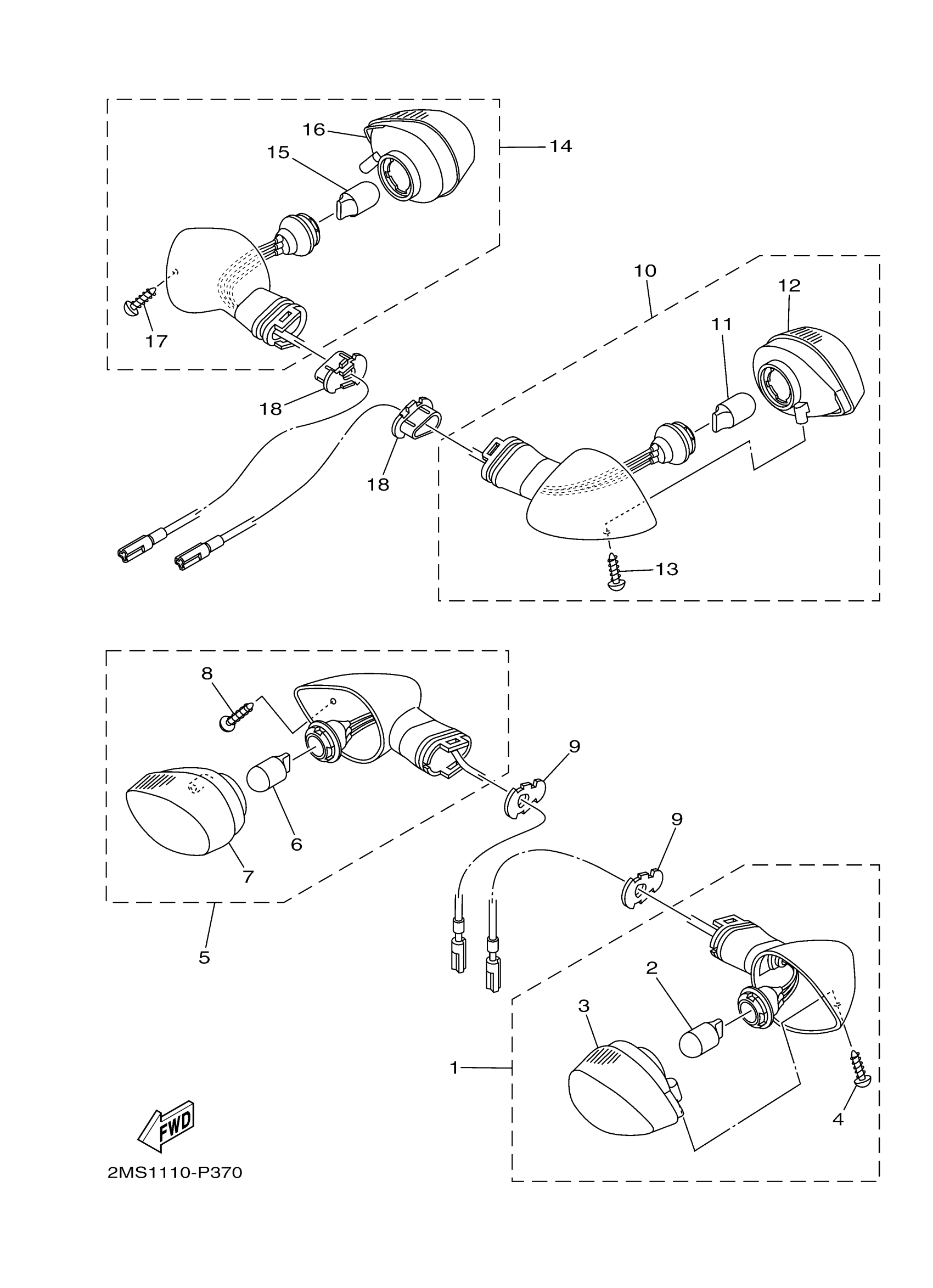

2017 Yamaha R3 (YZFR3HL) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

2MS-H3310-00-00

1
Out of stock

2

BULB, FLASHER

5GJ-83331-00-00

1

$12.45

In stock

3

LENS COMP

5PW-8333A-10-00

1

$28.04

In stock

4

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

5

FRONT FLASHER LIGHT ASSY 2

2MS-H3320-00-00

1
Out of stock

6

BULB, FLASHER

5GJ-83331-00-00

1

$12.45

In stock

7

LENS COMP

5PW-8334A-10-00

1

$28.85

In stock

8

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

9

STAY, FLASHER 1

3D7-83318-10-00

1

$7.03

In stock

10

REAR FLASHER LIGHT ASSY 1

2MS-H3330-00-00

1

$54.64

In stock

11

BULB, FLASHER

5PW-83331-00-00

1

$11.49

In stock

12

LENS COMP

5PW-8334A-10-00

1

$28.85

In stock

13

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

14

REAR FLASHER LIGHT ASSY 2

2MS-H3340-00-00

1

$64.32

In stock

15

BULB, FLASHER

5PW-83331-00-00

1

$11.49

In stock

16

LENS COMP

5PW-8333A-10-00

1

$28.04

In stock

17

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

18

STAY, FLASHER 1

1WD-H3318-00-00

—

$2.48

In stock
