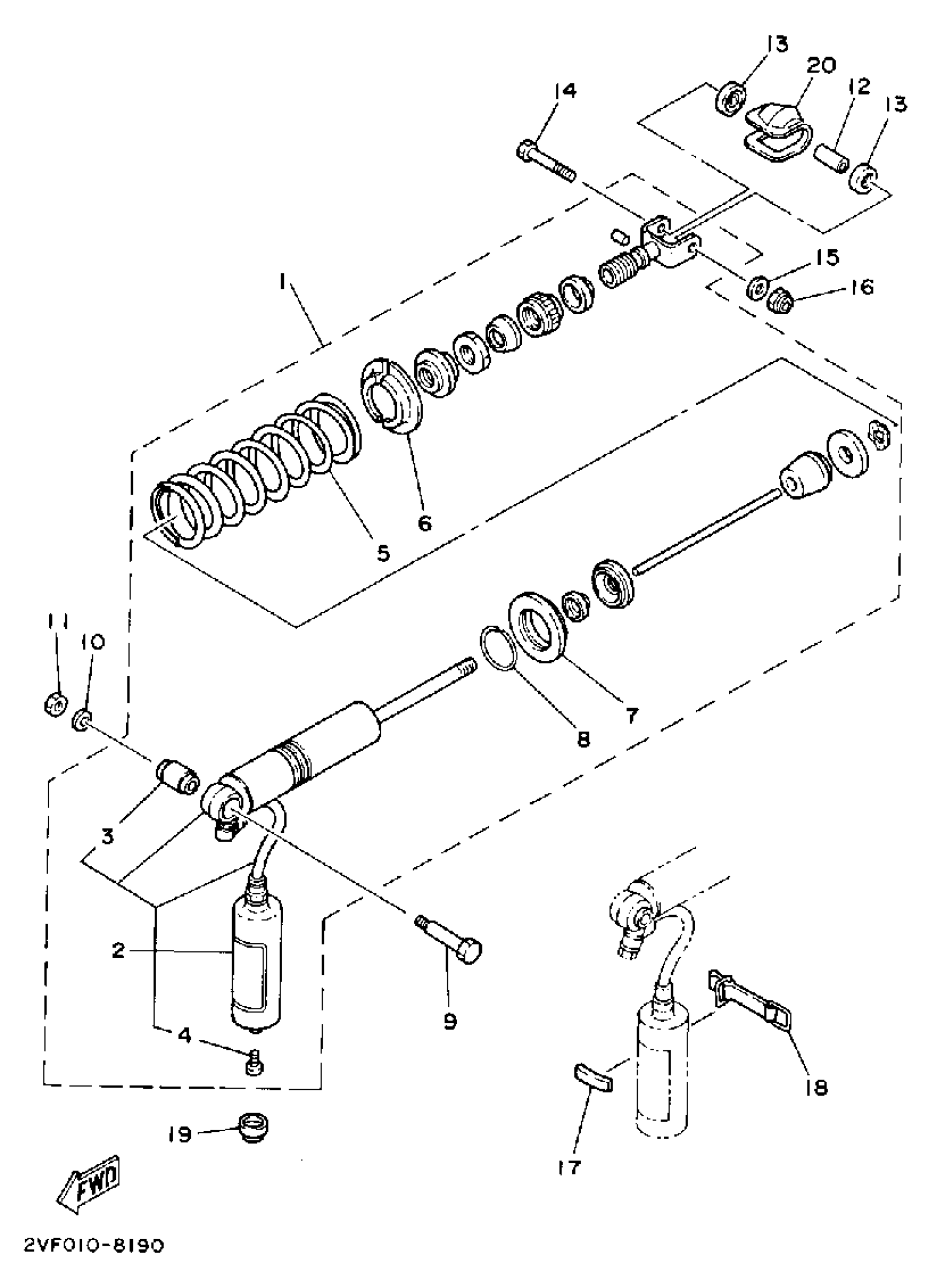

Yamaha YZ80D (YZ80D_E_F) 1977 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR ASSEMBLY

3ML-22210-00-P0

Unavailable

2

. DAMPER SUB ASSEMBLY

2HF-22201-00-00

Unavailable

3

.. BUSH, RR SHOCK ABS

2X6-22216-00-00

Unavailable

4

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

5

SPRING, R.SHOCK (HARD)

2HF-22212-30-6W

Unavailable

6

GUIDE, SPRING 1

3P6-22214-10-00

$14.07

7

. SEAT, SPRING LOWER

22W-22223-00-00

Unavailable

8

CIRCLIP (5X2)

93440-42101-00

$2.58

9

BOLT (22W)

90109-10729-00

$5.61

10

WASHER, PLATE

92990-10600-00

$2.50

11

NUT, SELF LOCKING (23X)

90185-10120-00

$4.67

12

COLLAR (22W)

90387-106G0-00

$11.00

13

COVER, THRUST 2

22W-22129-00-00

$25.44

14

BOLT (22W)

90109-10689-00

$6.05

15

WASHER, PLATE

92990-10600-00

$2.50

16

NUT, SELF LOCKING (23X)

90185-10120-00

$4.67

17

DAMPER, SUB TANK

24X-22261-00-00

Unavailable

18

HOLDER, SUB TANK

24X-22262-00-00

Unavailable

19

GROMMET

90480-17359-00

Unavailable

20

BOOT, RUBBER

22W-22189-00-00

Unavailable
