1977 Yamaha YZ80D_E_F (YZ80D) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1977 Yamaha YZ80D_E_F (YZ80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

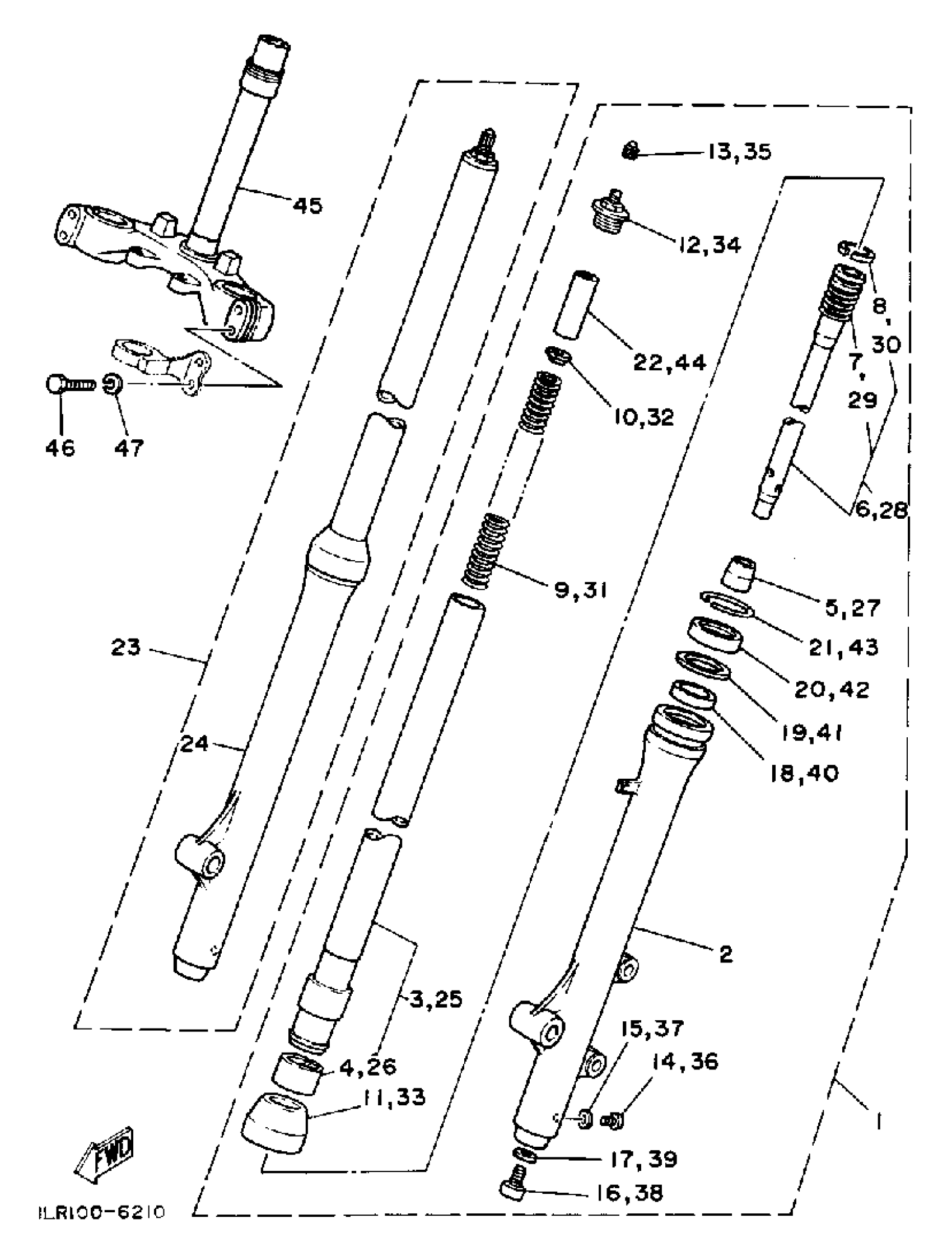

1977 Yamaha YZ80D_E_F (YZ80D) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY LASSEMBLY (L.H)

2HF-23102-L0-00

1
Out of stock

2

. TUBE, OUTER 1

2HF-23126-L0-35

1
Out of stock

3

. INNER TUBE 1

58T-23110-L0-00

1
Out of stock

4

.. PISTON, FRONT FORK

22W-2312K-00-00

1
Out of stock

5

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

6

. CYLINDER, FRONT FORK

39K-23170-L0-00

1
Out of stock

7

.. SPRING, REBOUND

509-23151-L0-00

1
Out of stock

8

.. RING, PISTON FRONT FORK

22W-23157-L0-00

1
Out of stock

9

. SPRING, FRONT FORK (K5023)

39K-23141-00-00

1
Out of stock

10

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

11

. SEAL, DUST

22W-23144-L0-00

1
Out of stock

12

. BOLT, CAP

58T-23111-L0-00

1
Out of stock

13

CAP, AIR VALVE

58T-23184-L0-00

1
Out of stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

17

GASKET

509-23158-L0-00

—

$14.34

In stock

18

METAL, SLIDE 1

4HC-23125-20-00

—
Out of stock

19

WASHER, OIL SEAL

22W-23146-L0-00

—
Out of stock

20

OIL SEAL

22W-23145-L0-00

—

$16.94

In stock

21

RING, SNAP

22W-23153-L0-00

—

$7.51

In stock

22

. SPACER

58T-23118-L0-00

1
Out of stock

23

FRONT FORK ASSEMBLY R (RH)

2HF-23103-L0-00

1
Out of stock

24

. TUBE, OUTER 2

2HF-23136-L0-35

1
Out of stock

25

. INNER TUBE 1

58T-23110-L0-00

1
Out of stock

26

.. PISTON, FRONT FORK

22W-2312K-00-00

1
Out of stock

27

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

28

. CYLINDER, FRONT FORK

39K-23170-L0-00

1
Out of stock

29

.. SPRING, REBOUND

509-23151-L0-00

1
Out of stock

30

.. RING, PISTON FRONT FORK

22W-23157-L0-00

1
Out of stock

31

. SPRING, FRONT FORK (K5023)

39K-23141-00-00

1
Out of stock

32

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

33

. SEAL, DUST

22W-23144-L0-00

1
Out of stock

34

. BOLT, CAP

58T-23111-L0-00

1
Out of stock

35

CAP, AIR VALVE

58T-23184-L0-00

1
Out of stock

36

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

37

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

38

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

39

GASKET

509-23158-L0-00

—

$14.34

In stock

40

METAL, SLIDE 1

4HC-23125-20-00

—
Out of stock

41

WASHER, OIL SEAL

22W-23146-L0-00

—
Out of stock

42

OIL SEAL

22W-23145-L0-00

—

$16.94

In stock

43

RING, SNAP

22W-23153-L0-00

—

$7.51

In stock

44

. SPACER

58T-23118-L0-00

1
Out of stock

45

UNDER BRACKET COMP

39K-23340-L0-00

1
Out of stock

46

BOLT

97014-08040-00

—

$5.26

In stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
