1977 Yamaha YZ80D_E_F (YZ80D) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1977 Yamaha YZ80D_E_F (YZ80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

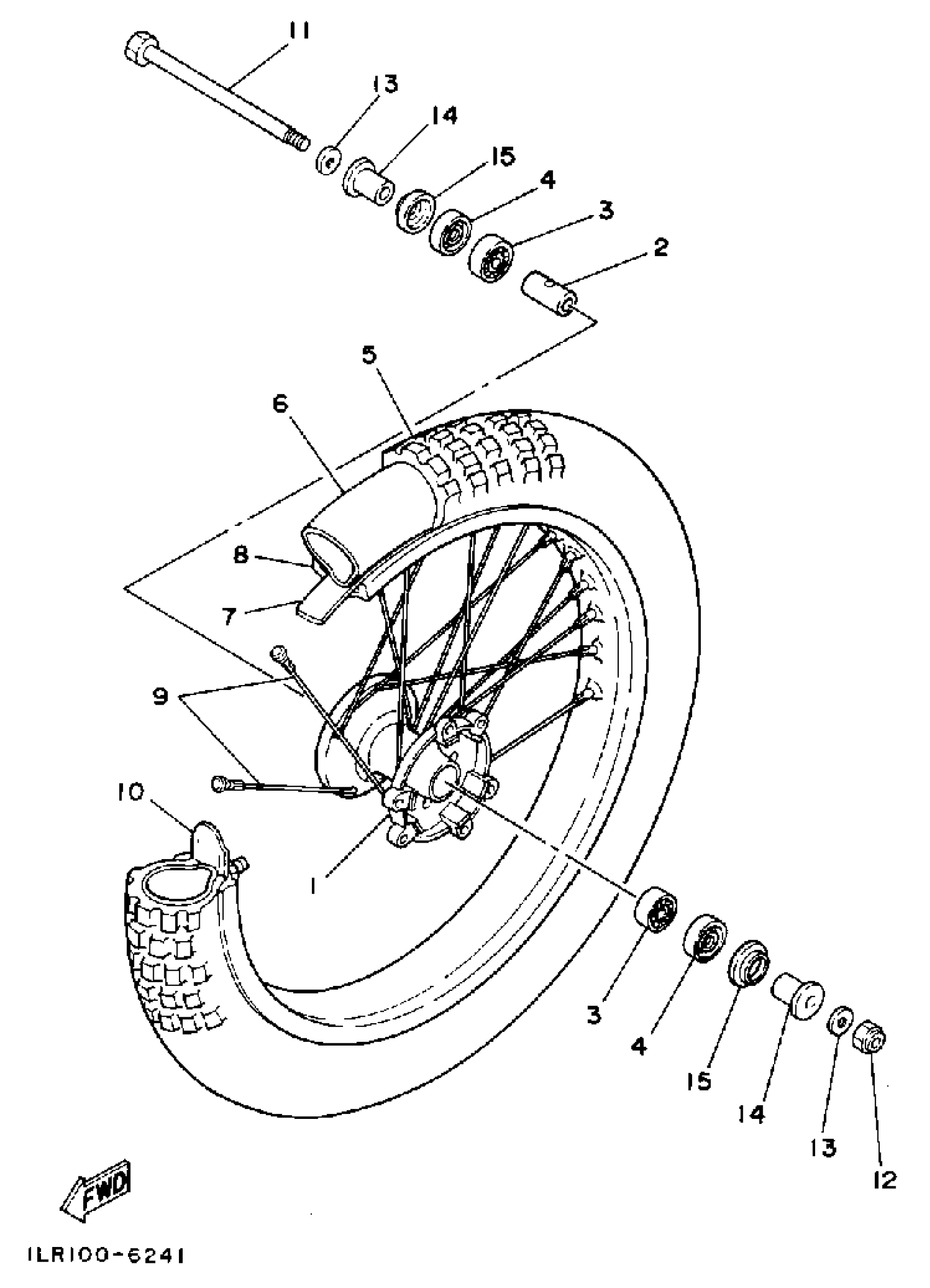

1977 Yamaha YZ80D_E_F (YZ80D) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1LR-25111-00-98

1
Out of stock

2

SPACER(39K)

90560-12257-00

1
Out of stock

3

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1
Out of stock

4

OIL SEAL (18X28X8-462)

93106-18013-00

1
Out of stock

5

70/100-17 M6A IRC (70/100-17)

94107-177R6-00

1
Out of stock

6

TUBE 80/80-17 (80/80-17)

94208-17255-00

1
Out of stock

7

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

1
Out of stock

8

RIM 1.4 (1.40-17)

94414-17428-00

1
Out of stock

9

SPOKE SET, FRONT

1LR-25104-00-00

1
Out of stock

10

SPACER, BEAD

1T1-25194-00-00

—
Out of stock

11

AXLE, WHEEL

22W-25181-01-00

1
Out of stock

12

NUT, SELF-LOCKING(1KH)

90185-12134-00

1
Out of stock

13

WASHER, PLATE

90201-12047-00

1
Out of stock

14

COLLAR (12T)

90387-126F8-00

1
Out of stock

15

COVER, HUB DUST

462-25118-00-00

1
Out of stock
