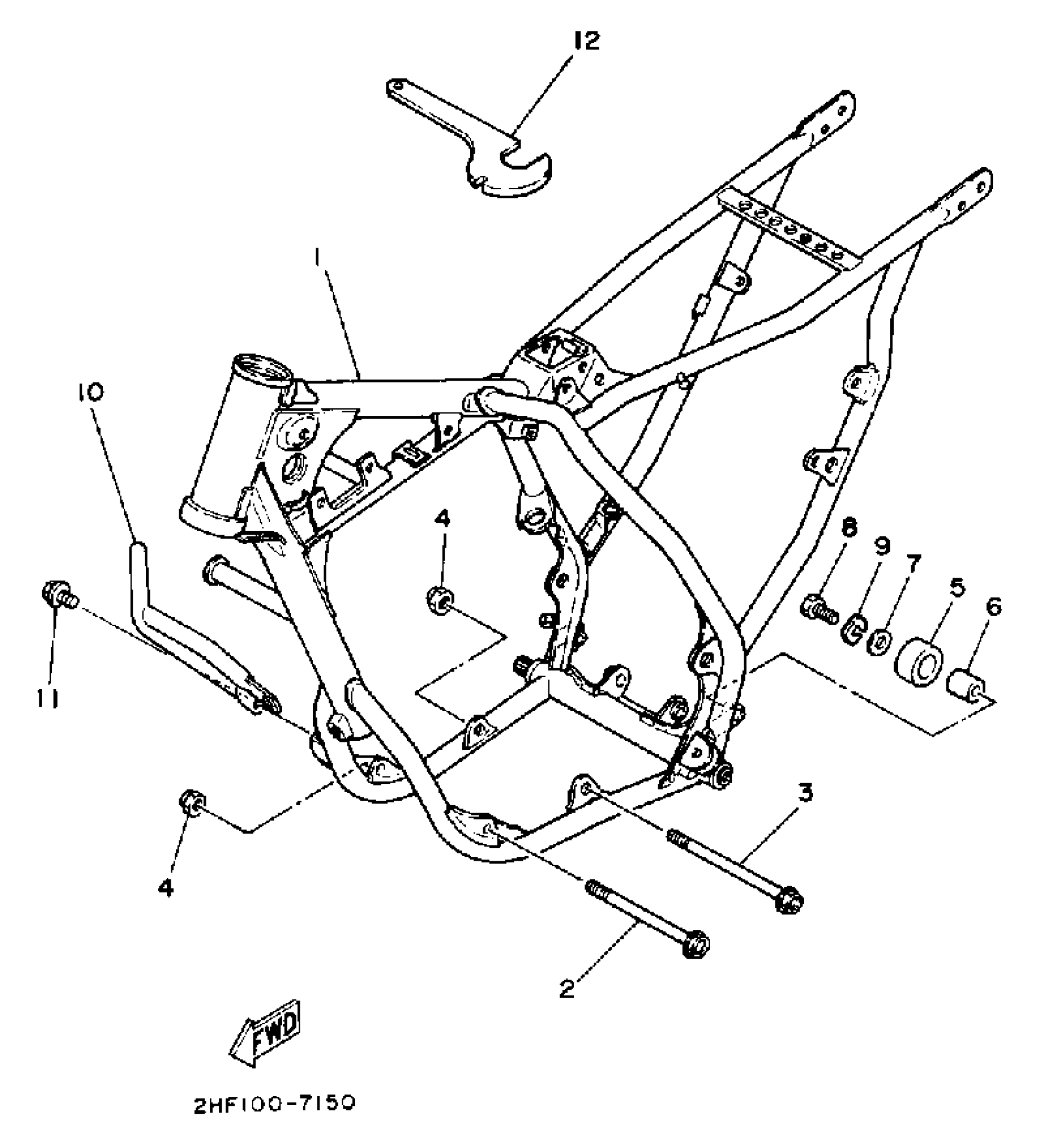

Yamaha YZ80D (YZ80D_E_F) 1977 FRAME Diagram

#

Description
Price

1

FRAME

2HF-21110-00-UJ

Unavailable

2

BOLT, FLANGE

95817-08125-00

$7.61

3

BOLT,FLANGE

95817-08135-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$6.76

5

TENSIONER

30X-22178-00-00

$30.04

6

BUSH

4V4-22184-00-00

$3.39

7

WASHER, PLATE (4X4)

90201-067A0-00

$6.35

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

9

WASHER(6TA)

92907-06700-00

$1.49

10

GUARD, RADIATOR

1LR-2174F-00-00

Unavailable

11

BOLT, FLANGE(2UJ)

95024-08012-00

$5.87

12

SPANNER, SPECIAL

10V-28135-00-00

Unavailable
