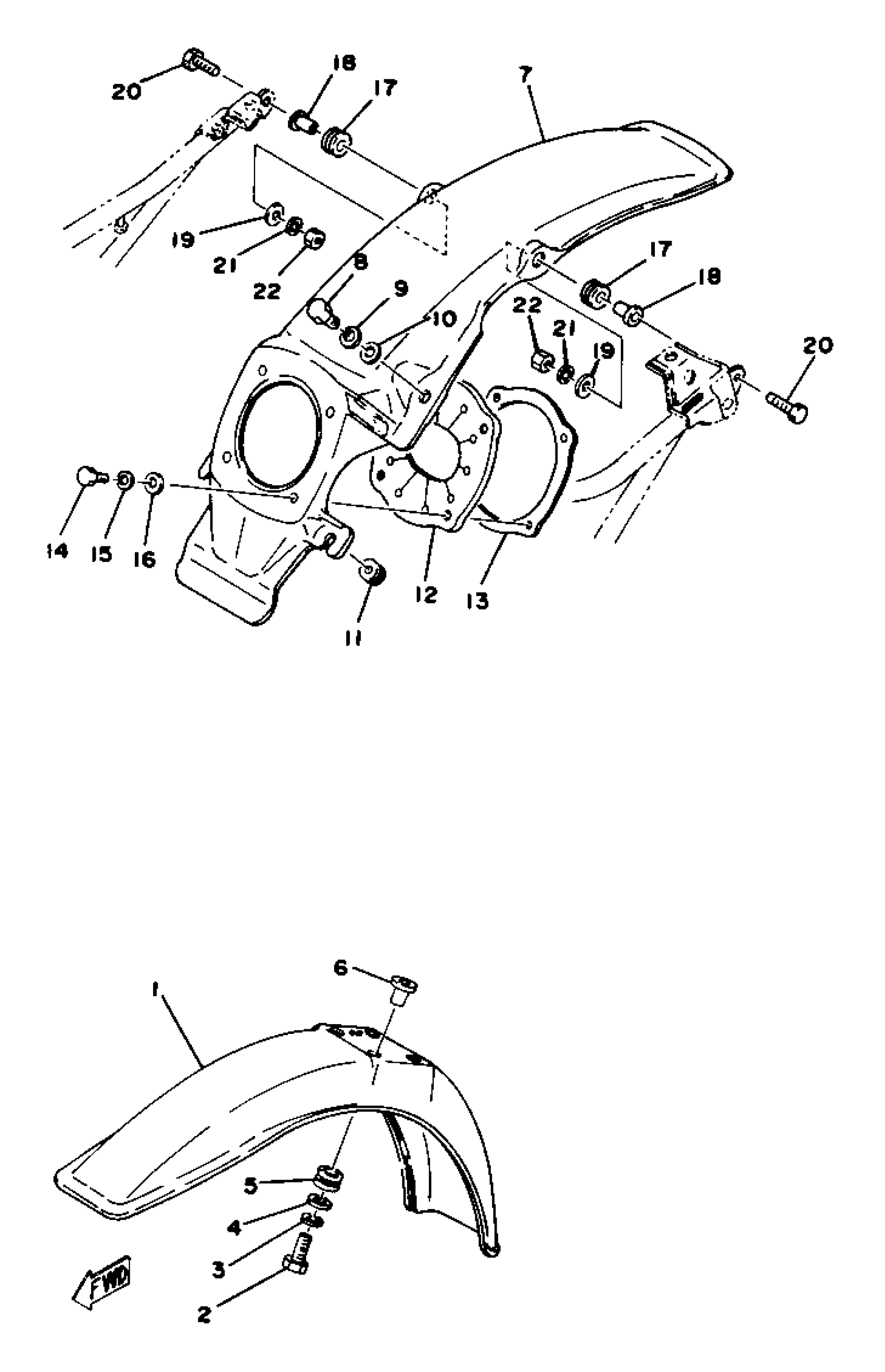

Yamaha YZ80D (YZ80D_E_F) 1977 FRONT FENDER REAR FENDER YZ80E Diagram

#

Description
Price

1

FENDER, FRONT

2J5-21511-00-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

GROMMET

90480-14198-00

$7.10

6

COLLAR

90387-06158-00

$5.75

7

FENDER, REAR

2J5-21611-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06380-00

$0.54

11

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

12

FENDER, REAR

2J5-21611-00-00

Unavailable

13

GUIDE, MUD GUARD

(2J5-21665-00-00)

Unavailable

14

BOLT, HEXAGON

97313-05016-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

GROMMET 839774310000

90480-14023-00

Unavailable

18

COLLAR

90387-06158-00

$5.75

19

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

20

BOLT, HEXAGON

97017-06030-00

Unavailable

21

WASHER, SPRING

92995-06100-00

$2.95

22

NUT, HEXAGON

95380-06600-00

$4.11
