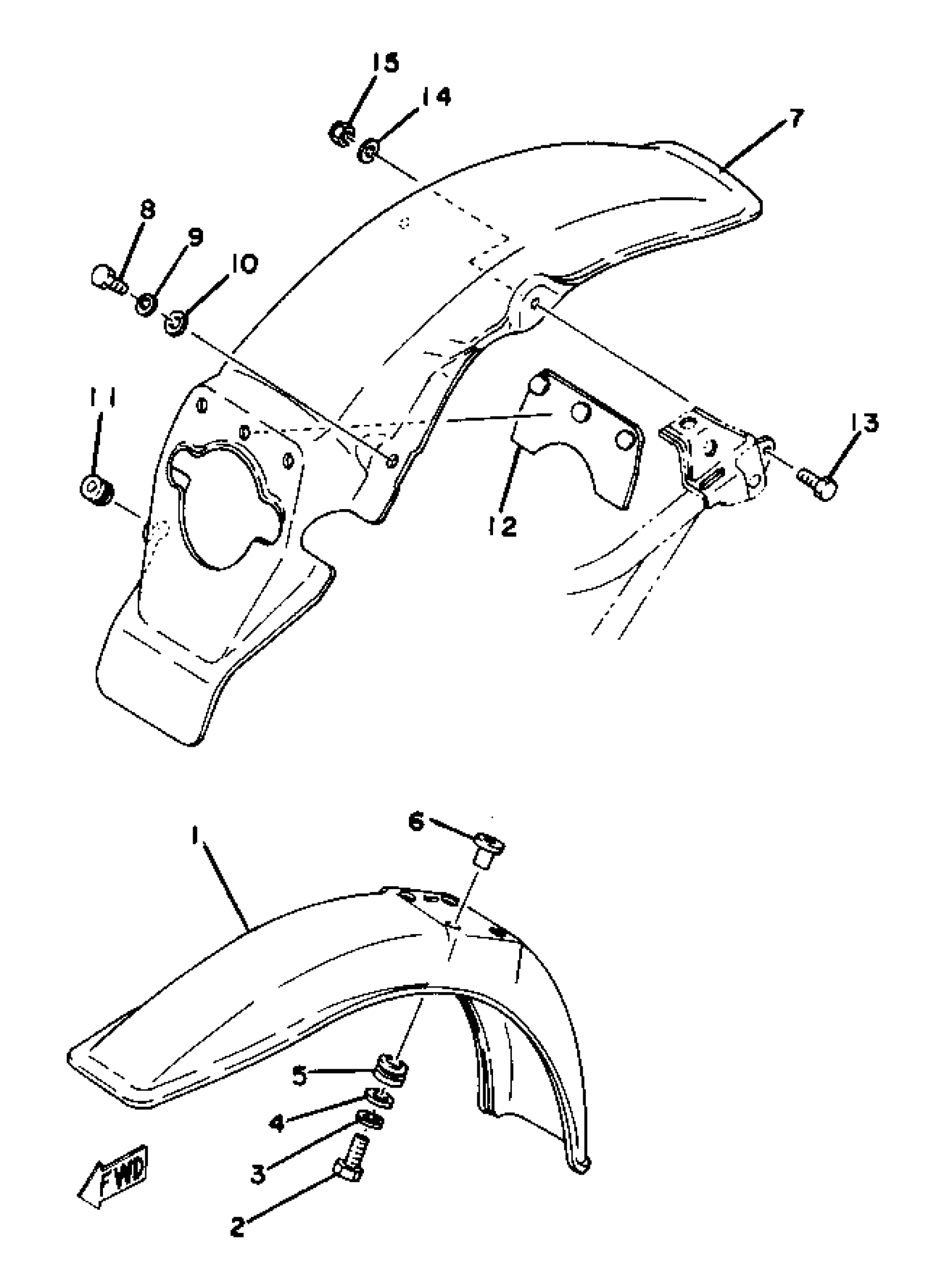

Yamaha YZ80D (YZ80D_E_F) 1977 FRONT FENDER REAR FENDER YZ80F Diagram

#

Description

Price

1

FENDER, FRONT

2J5-21511-00-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

GROMMET

90480-14198-00

$7.10

6

COLLAR

90387-06158-00

$5.75

7

FENDER, REAR

2X6-21611-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06380-00

$0.54

11

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

12

GUARD, MUD

(2X6-21629-00-00)

Unavailable

13

BOLT, HEXAGON

97017-06020-00

$2.37

14

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

15

NUT, SELF-LOCKING

95617-06100-00

$2.17
