1975 Yamaha YZ80B (YZ80B) Air Filter Diagram

← All diagrams

Find the part on the Air Filter diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

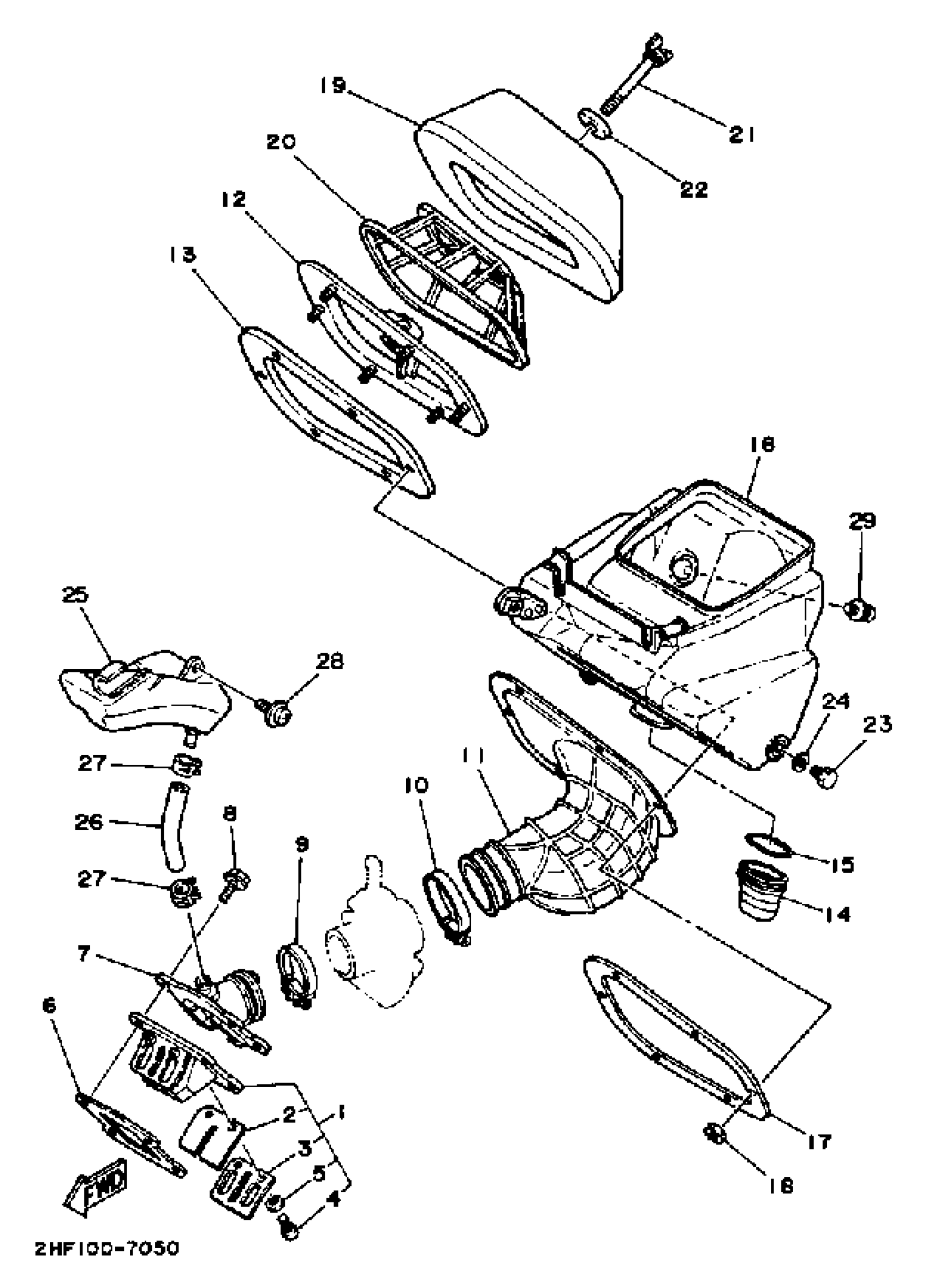

1975 Yamaha YZ80B (YZ80B) Air Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

2HF-13610-01-00

1
Out of stock

2

REED, VALVE

2HF-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

58T-13616-01-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

3JM-13621-00-00

1
Out of stock

7

JOINT, CARBURETOR

1LR-13565-00-00

1
Out of stock

8

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

9

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

10

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

11

JOINT, AIR CLNR 1

2HF-14453-00-00

1
Out of stock

12

HOLDER, GUIDE

2HF-14459-00-00

1
Out of stock

13

SEAL

2HF-14462-00-00

1
Out of stock

14

SEAL

39K-14457-00-00

1
Out of stock

15

SPRING, COMPRESSION

90504-03033-00

1
Out of stock

16

AIR CLNR CASE COMP

2HF-W1441-01-00

1
Out of stock

17

PLATE

2HF-14477-00-00

1
Out of stock

18

NUT, U

95617-05100-00

—

$6.68

In stock

19

ELEMENT, AIR CLNR

2HF-14451-00-00

1
Out of stock

20

GUIDE, ELEMENT

2HF-14458-00-00

1
Out of stock

21

BOLT, WING

90122-06013-00

1
Out of stock

22

WASHER (4H7)

90209-06096-00

—
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

CHAMBER, AIR

22W-13581-00-00

1
Out of stock

26

HOSE

90445-164E1-00

1
Out of stock

27

CLIP

90467-16181-00

—

$5.32

In stock

28

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock

29

BOLT, WITH WASHER(1JK)

90119-06123-00

—
Out of stock
