1975 Yamaha YZ80B (YZ80B) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

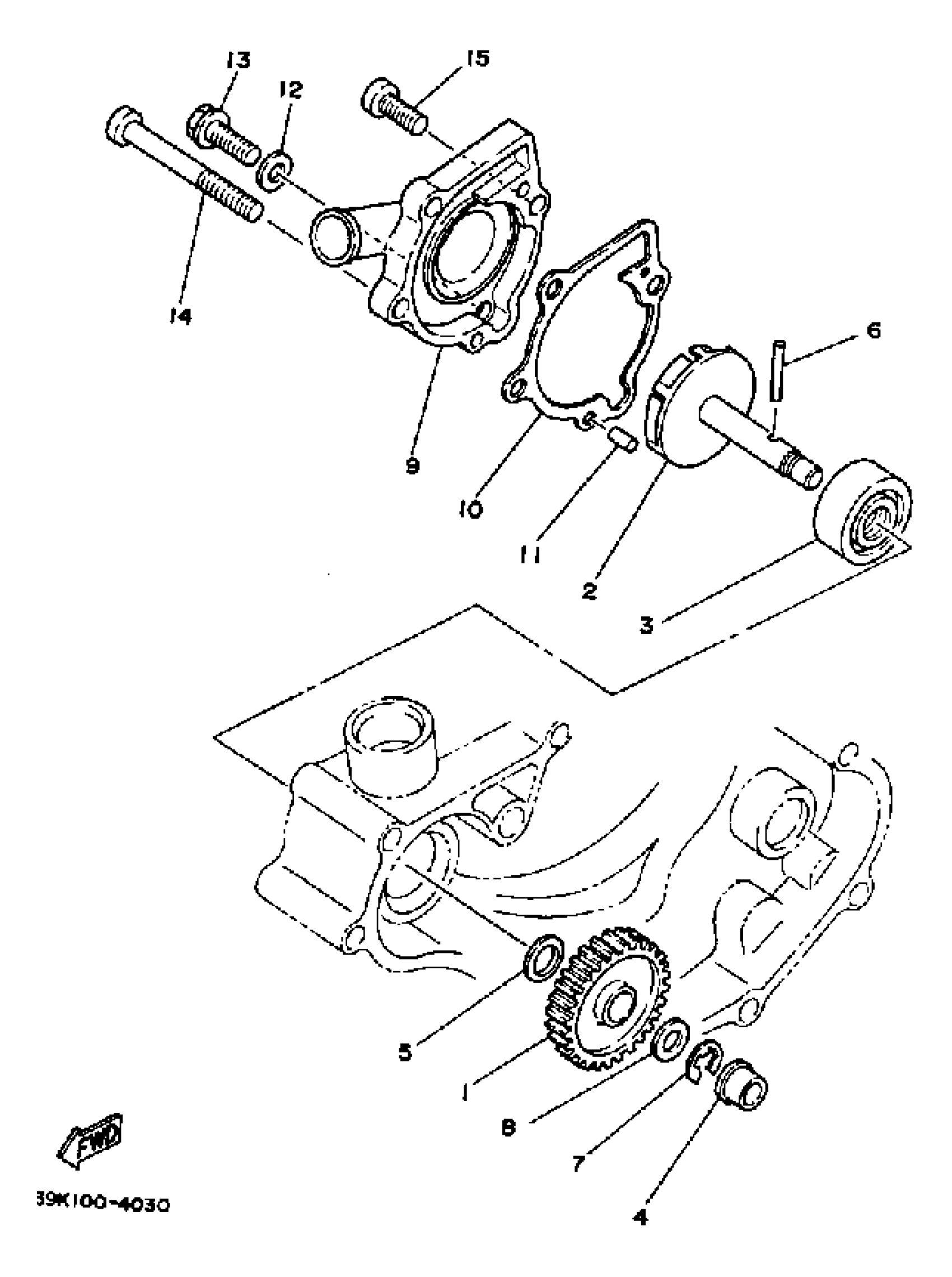

1975 Yamaha YZ80B (YZ80B) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, IMPELLER SHAF

1LR-12459-00-00

1
Out of stock

2

IMPELLER SHAFT ASSEMBLY

22W-12450-00-00

1
Out of stock

3

OIL SEAL

93103-10011-00

1

$39.07

In stock

4

BUSH (214-17843-00)

90381-08002-00

1

$10.54

In stock

5

WASHER, PLATE (2W5)

90201-10614-00

1
Out of stock

6

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

7

CIRCLIP

99080-07600-00

1

$2.89

In stock

8

WASHER PLATE 141181390000

90201-08085-00

1

$6.38

In stock

9

COVER, HOUSING

2VE-12422-00-00

1
Out of stock

10

GASKET, HSNG COVER 2

5X2-12428-10-00

1
Out of stock

11

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

12

GASKET (4V2)

90430-06166-00

1

$3.45

In stock

13

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

14

SCREW, PAN

98507-06060-00

1

$5.60

In stock

15

SCREW, PAN

98517-06020-00

1
Out of stock
