1975 Yamaha YZ80B (YZ80B) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

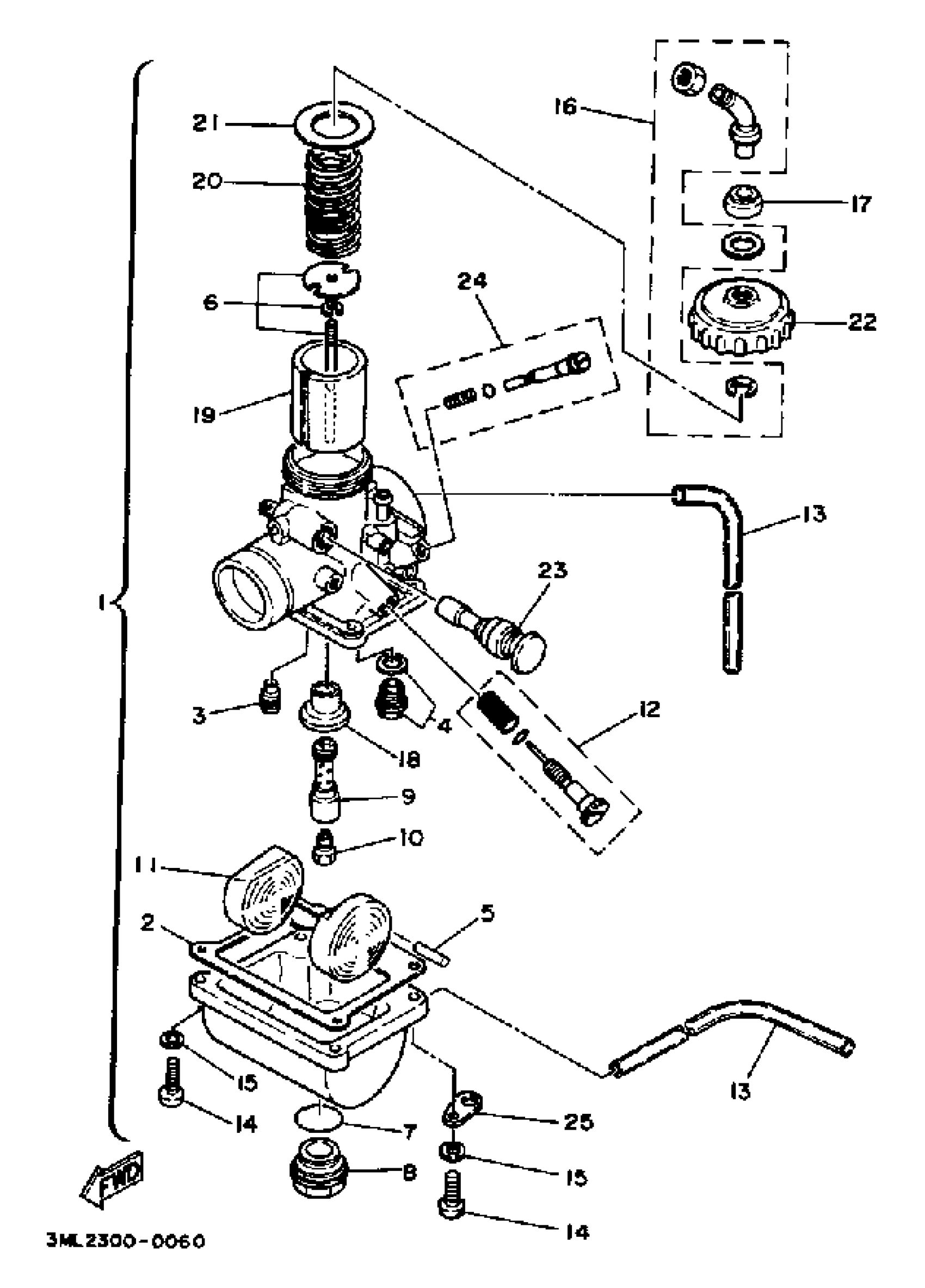

1975 Yamaha YZ80B (YZ80B) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

1LR-14101-00-00

1
Out of stock

2

GASKET,FLOAT CHAMBER

304-14184-00-00

1
Out of stock

3

JET,PILOT (# 30)

260-14142-30-00

1
Out of stock

3

JET, PILOT (# 35)

260-14142-35-00

1
Out of stock

3

JET, PILOT (# 40)

260-14142-40-00

1
Out of stock

4

NEEDLE VALVE SET

23L-14107-25-00

1
Out of stock

5

PIN, FLOAT

127-14186-00-00

1
Out of stock

6

. NEEDLE SET

58T-1490J-00-00

1
Out of stock

7

O-RING

3JE-14561-00-00

1
Out of stock

8

. PLUG, SCREW

3R1-14115-00-00

1
Out of stock

9

. NOZZLE, MAIN

3R1-14141-50-00

1
Out of stock

9

. NOZZLE, MAIN

3R1-14141-52-00

1
Out of stock

9

. NOZZLE, MAIN

3R1-14141-54-00

1
Out of stock

10

JET, MAIN #270

137-14143-54-A1

1
Out of stock

10

JET, MAIN #280

137-14143-56-A0

—
Out of stock

10

JET, MAIN #290

137-14143-58-A1

—
Out of stock

10

JET, MAIN #300

137-14143-60-A0

—
Out of stock

11

FLOAT

314-14185-00-00

—
Out of stock

12

THROTTLE SCREW SET

31J-14103-00-00

—
Out of stock

13

PIPE

23F-14197-00-00

—
Out of stock

14

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

—
Out of stock

16

. CABLE ADJUST SCREW SET

22W-14106-00-00

1
Out of stock

17

CAP

3X3-14169-00-00

—
Out of stock

18

. WASHER, MAIN JET

39K-14153-00-00

1
Out of stock

19

. VALVE, THROTTLE 1

2X6-14112-25-00

1
Out of stock

19

. VALVE, THROTTLE 1

2X6-14112-30-00

1
Out of stock

19

. VALVE, THROTTLE 1

2X6-14112-35-00

1
Out of stock

20

SPRING, THROTTLE VALVE

248-14131-00-00

—
Out of stock

21

GASKET

2A6-14126-00-00

—
Out of stock

22

. TOP, MIXING CHAMBER

2A6-14158-00-00

1
Out of stock

23

PLUNGER, STARTER

4U5-14171-00-00

—
Out of stock

24

AIR SCREW SET

10W-14104-00-00

—
Out of stock

25

PLATE

132-14146-00-00

—
Out of stock
