1980 Yamaha YZ50G (YZ50G) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1980 Yamaha YZ50G (YZ50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

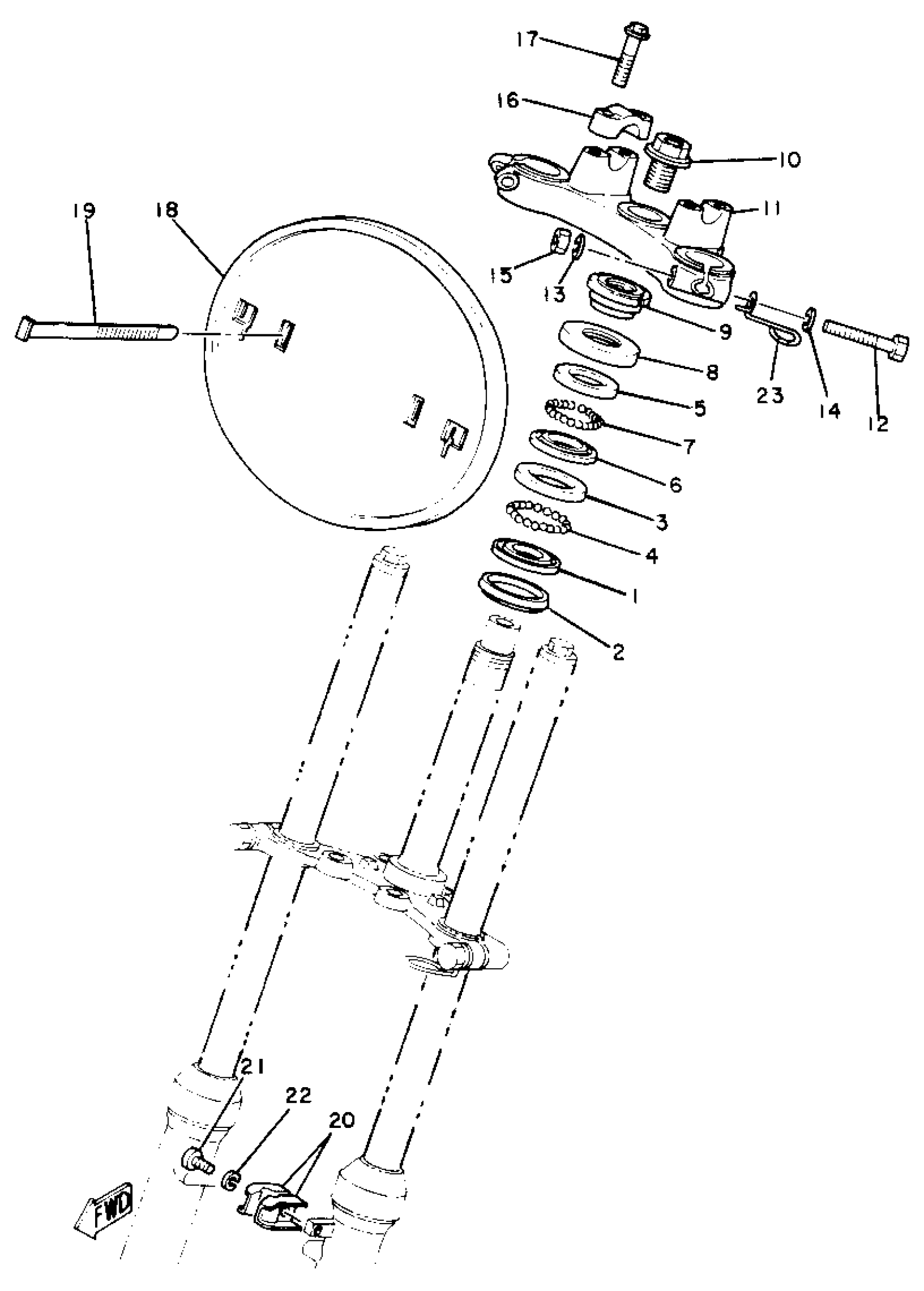

1980 Yamaha YZ50G (YZ50G) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

BALL

93501-04011-00

1
Out of stock

5

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

6

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

7

BALL

93503-16003-00

1

$2.14

In stock

8

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

11

CROWN, HANDLE

3R0-23435-01-98

1
Out of stock

12

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

NUT, CROWN

95303-08800-00

1

$7.52

In stock

16

HOLDER, HANDLE UPPER

1E6-23441-00-00

—

$22.38

In stock

17

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

18

. PLATE, NUMBER

3R0-23485-00-00

1
Out of stock

19

. BAND

2X4-23489-00-00

1
Out of stock

20

CLAMP (3R0)

90462-14055-00

—

$8.31

In stock

21

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

HOLDER, CABLE

(3R0-23317-00-00)

1
Out of stock
