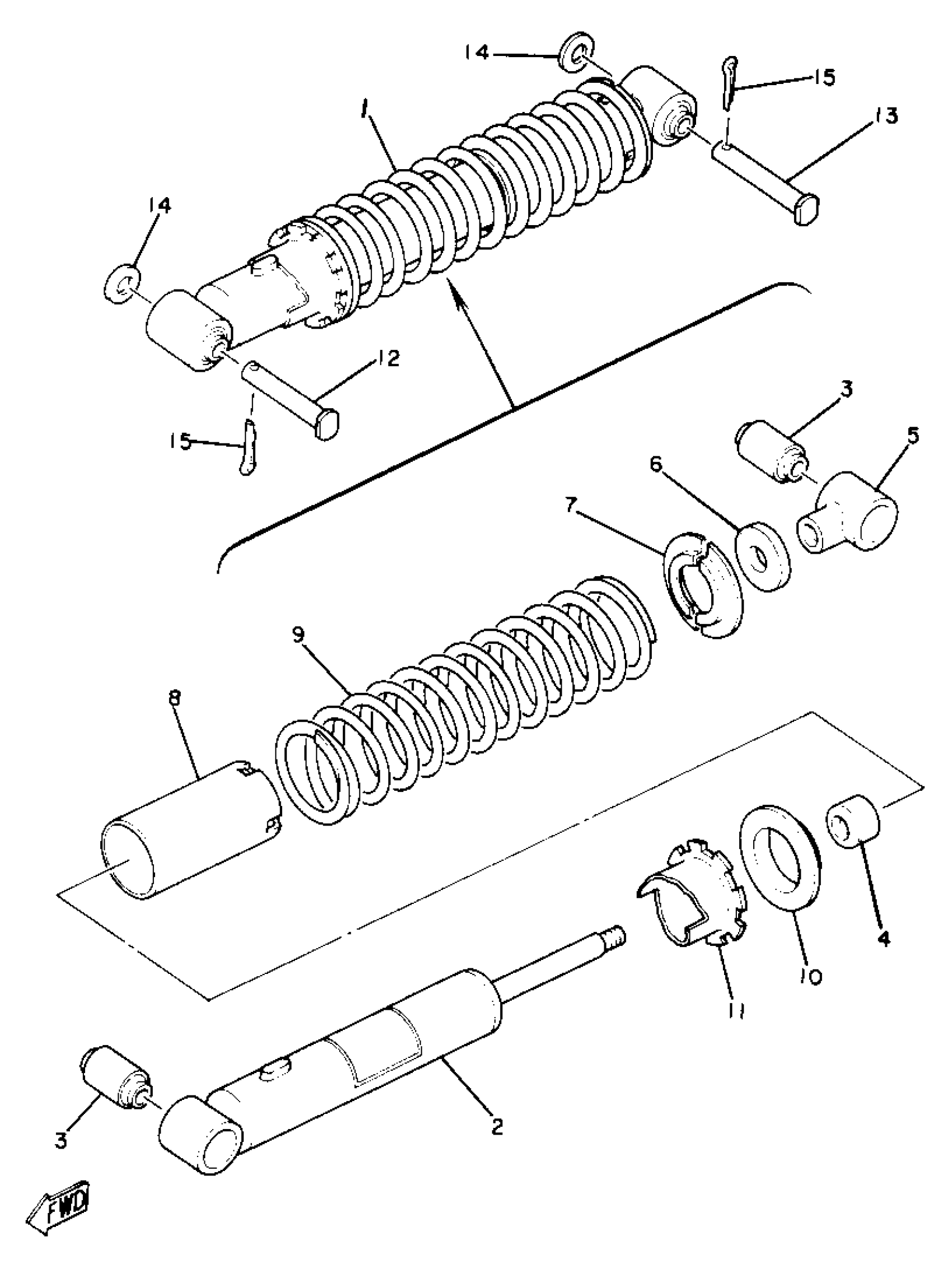

Yamaha YZ50G (YZ50G) 1980 REAR SUSPENSION Diagram

#

Description
Price

1

SEAL, GUARD

3R0-22151-00-00

$19.48

2

DAMPER SUB-ASSEMBLY.

(3R0-22401-00-00)

Unavailable

3

BUSHING

3M7-22216-00-00

$19.18

4

BUSHING

3M7-22216-00-00

$19.18

5

UPPER BRKT SUB ASSEMBLY

(3M7-22409-00-00)

Unavailable

6

WASHER, PLATE

(90201-10746-00)

Unavailable

7

BUSHING

3M7-22216-00-00

$19.18

8

SEAL, GUARD

3R0-22151-00-00

$19.48

9

SEAL, GUARD

3R0-22151-00-00

$19.48

9

SPRING, (K=3.13)

(3R0-22212-00-00)

Unavailable

10

GUIDE, SPRING 3

(3R0-22234-00-00)

Unavailable

11

SEAL, GUARD

3R0-22151-00-00

$19.48

12

PIN, CLEVIS (3R0)

90240-10069-00

$8.26

13

PIN, CLEVIS (3R0)

90240-10072-00

$8.26

14

WASHER, PLATE

92990-10600-00

$2.57

15

PIN, COTTER

91490-25020-00

Unavailable
