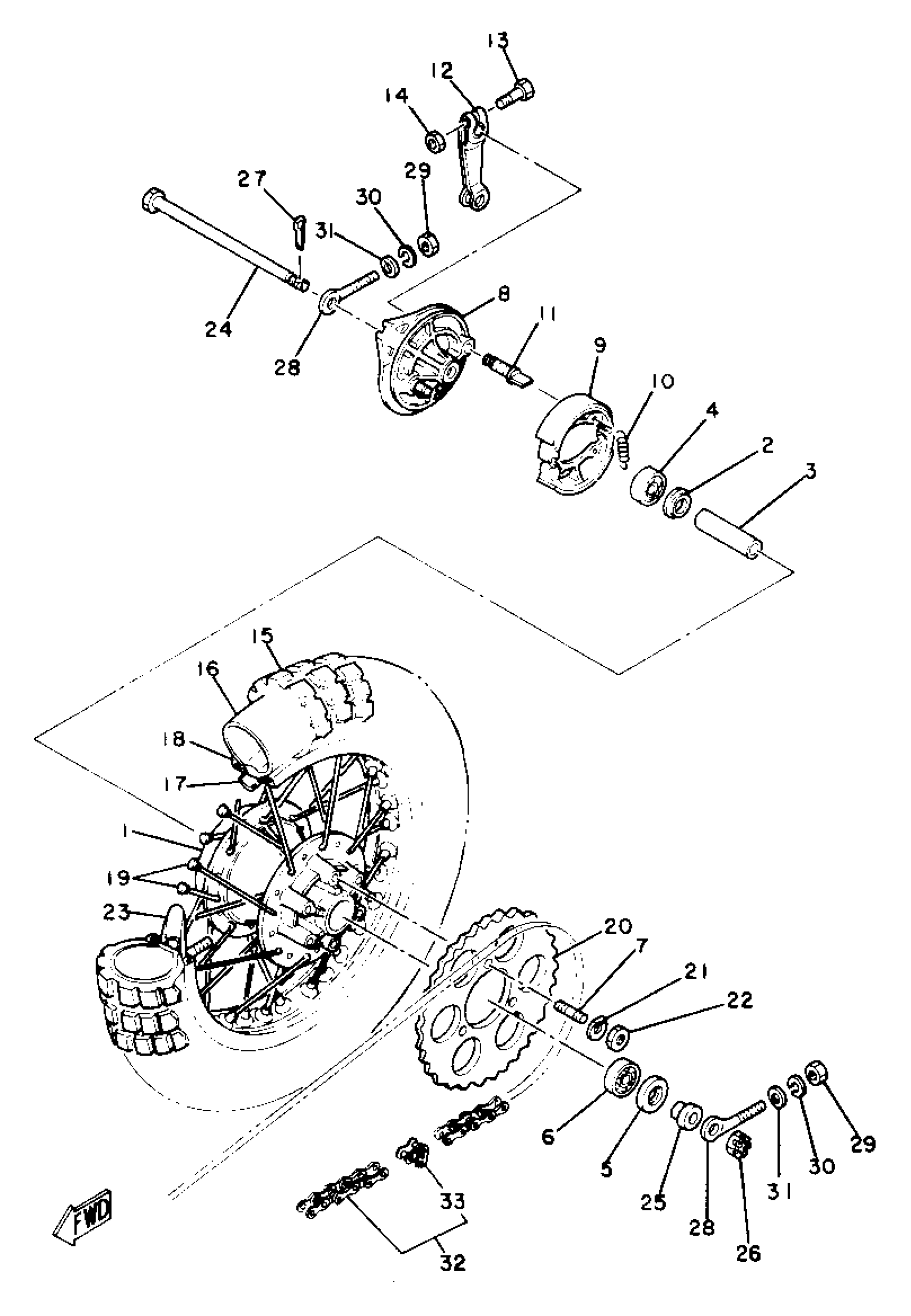

Yamaha YZ50G (YZ50G) 1980 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(3R0-25311-00-98)

Unavailable

2

FLANGE, SPACER

109-25315-00-00

$5.79

3

SPACER (1U1)

90560-12170-00

$14.44

4

BRG.

93306-30101-00

$30.31

5

OIL SEAL(3TU)

93106-20033-00

$10.29

6

BEARING

93306-30102-00

$32.65

7

.. BOLT, STUD

90116-08247-00

Unavailable

8

PLATE, BRAKE SHOE

3R0-25321-00-98

Unavailable

9

BRAKESHOE SET-2PCS

451-W2535-00-00

Unavailable

10

SPRING TENSION 451251330000

90506-14081-00

$6.99

11

CAMSHAFT

4N0-25151-00-00

Unavailable

12

LEVER, CAMSHAFT

3R0-25355-00-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$1.75

14

NUT, HEXAGON

95380-06600-00

$4.11

15

TIRE

94130-121A7-00

$42.74

16

TUBE (17J)

94230-12208-00

Unavailable

17

BAND, RIM (3R0)

94330-12100-00

Unavailable

18

RIM 1.60X12

94416-12230-00

Unavailable

19

SPOKE SET, REAR

3R0-25304-00-00

Unavailable

20

SPROCKET, DRIVN 44T

(3R0-25444-10-00)

Unavailable

20

SPROCKET, DRIVN 45T

3R0-25445-10-00

Unavailable

20

SPROCKET, DRIVN 46T

3R0-25446-10-00

Unavailable

21

WASHER

3R0-25412-00-00

Unavailable

22

NUT, HEXAGON (509)

90170-08158-00

Unavailable

23

SPACER, BEAD

1T1-25194-00-00

Unavailable

24

AXLE, WHEEL

367-25381-01-00

Unavailable

25

COLLAR (40E)

90387-127E0-00

Unavailable

26

NUT CASTLE(481)

90171-12005-00

Unavailable

27

PIN, COTTER

91490-30030-00

Unavailable

28

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

$4.11

30

WASHER, SPRING

92995-06100-00

$2.95

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

CHAIN, DRIVE

9Y580-52089-00

Unavailable

33

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
