1982 Yamaha YZ490J (YZ490J) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

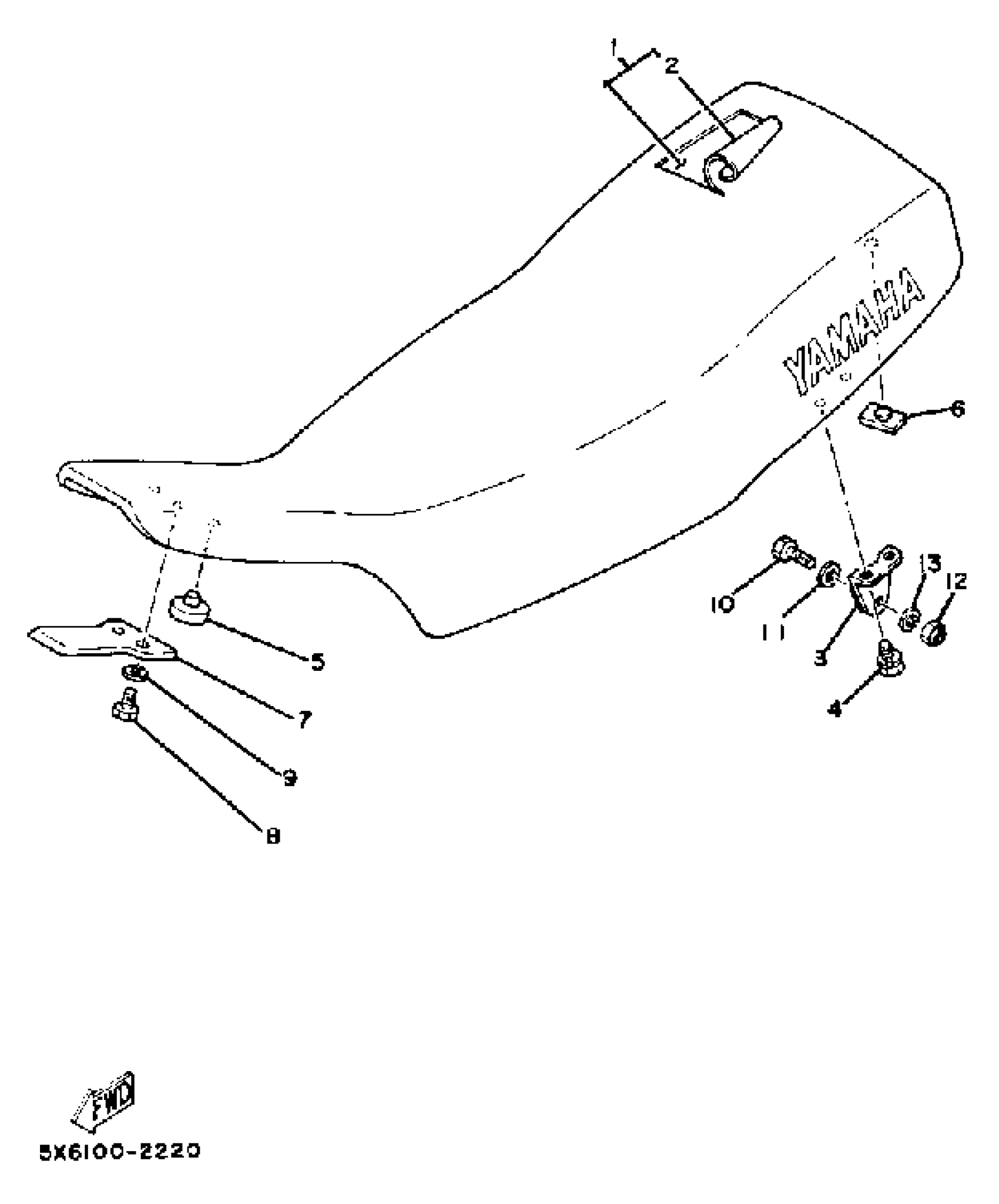

1982 Yamaha YZ490J (YZ490J) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASSEMBLY

(5X6-W2473-10-00)

1
Out of stock

2

COVER, SM-DBL SEAT

(5X6-24771-00-00)

1
Out of stock

3

BRACKET, SEAT

1W1-24738-00-00

1
Out of stock

4

BOLT (583)

90101-06304-00

1

$5.85

In stock

5

PAD, SEAT

116-24741-00-00

—
Out of stock

6

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

7

. BRACKET, SEAT

5X6-24748-10-00

1
Out of stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
