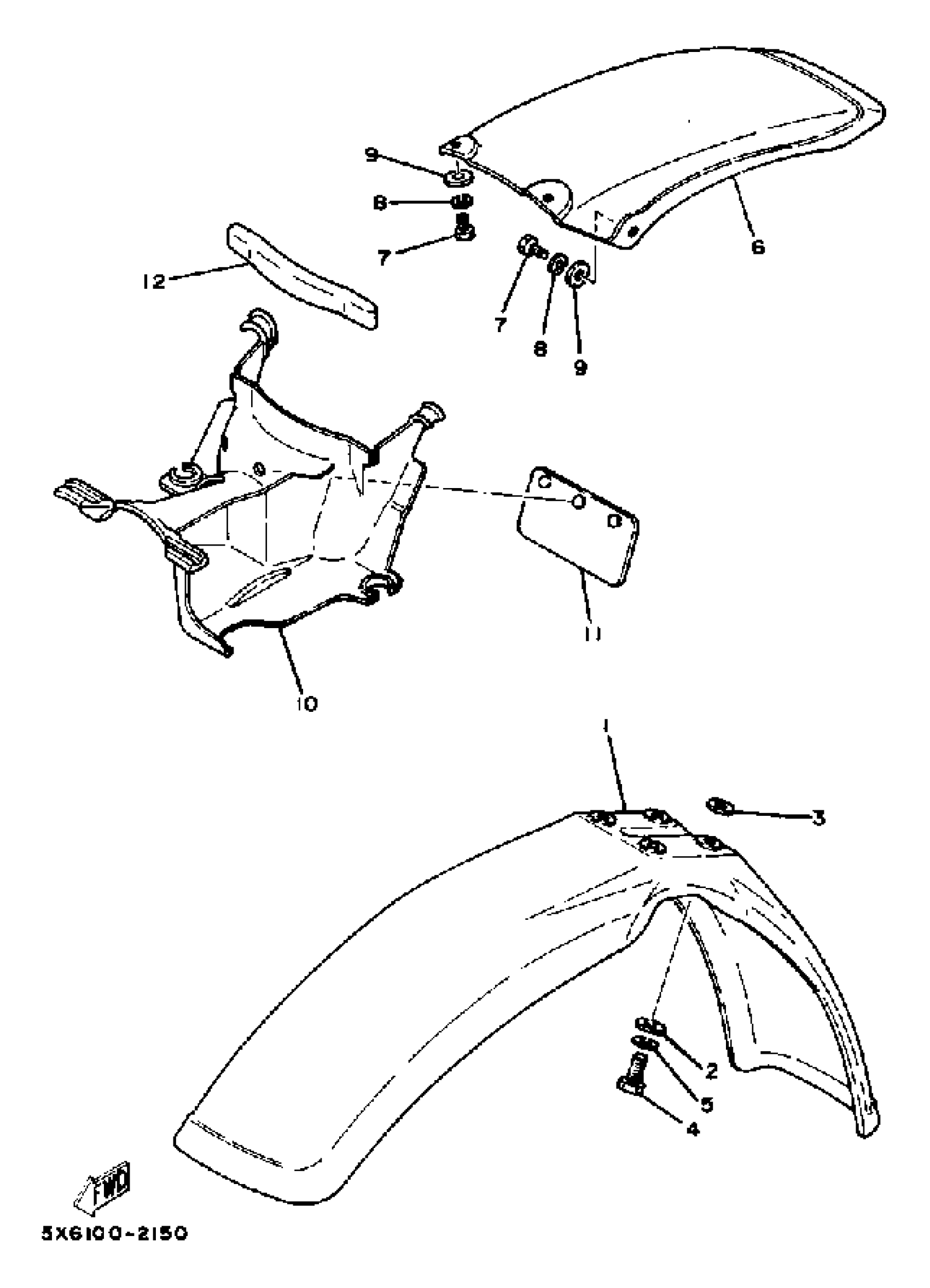

Yamaha YZ490J (YZ490J) 1982 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$38.39

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$5.98

3

WASHER (3R8)

90209-06187-00

$5.76

4

BOLT(3DM)

97024-06020-00

$5.75

5

WASHER, SPRING

92995-06100-00

$2.95

6

FENDER, REAR

3R4-21611-00-00

$68.16

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, SPRING

92995-06100-00

$2.95

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$5.98

10

GUARD, MUD

5X6-21629-01-00

Unavailable

11

FLAP

1M1-21621-00-00

$12.80

12

. DAMPER

565-21746-00-00

Unavailable
