1982 Yamaha YZ490J (YZ490J) Frame-Tool Diagram

← All diagrams

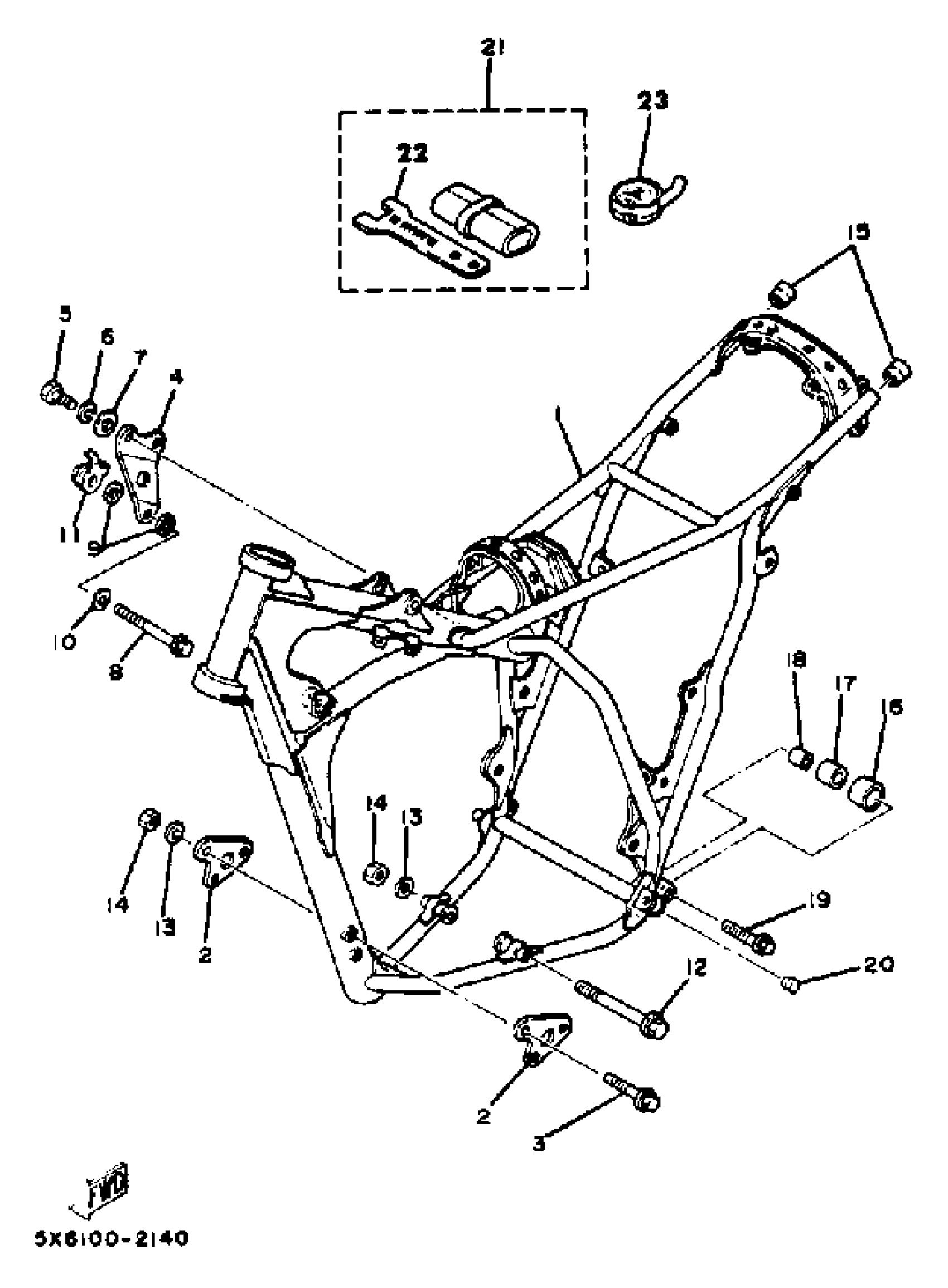

Find the part on the Frame-Tool diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YZ490J (YZ490J) Frame-Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5X6-21110-00-33)

1
Out of stock

2

BRACKET, FRT UPR 1

3R4-21415-00-00

1
Out of stock

3

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

4

BRACKET, REAR UPR 1

3R5-21425-00-00

1
Out of stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BOLT, FLANGE

95817-10060-00

1
Out of stock

9

1

$3.00

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

HOLDER, NUT

(4V6-21167-00-00)

1
Out of stock

12

BOLT, WASHER BASED

90105-08473-00

1
Out of stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

15

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

16

TENSIONER

5X6-22178-00-00

—
Out of stock

17

BUSH

4V4-22184-00-00

—

$3.57

In stock

18

COLLAR

90387-083F3-00

1
Out of stock

19

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

20

PLUG

90338-12131-00

1
Out of stock

21

TOOL KIT

(1W4-28100-00-00)

1
Out of stock

22

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock

23

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
