1982 Yamaha YZ490J (YZ490J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

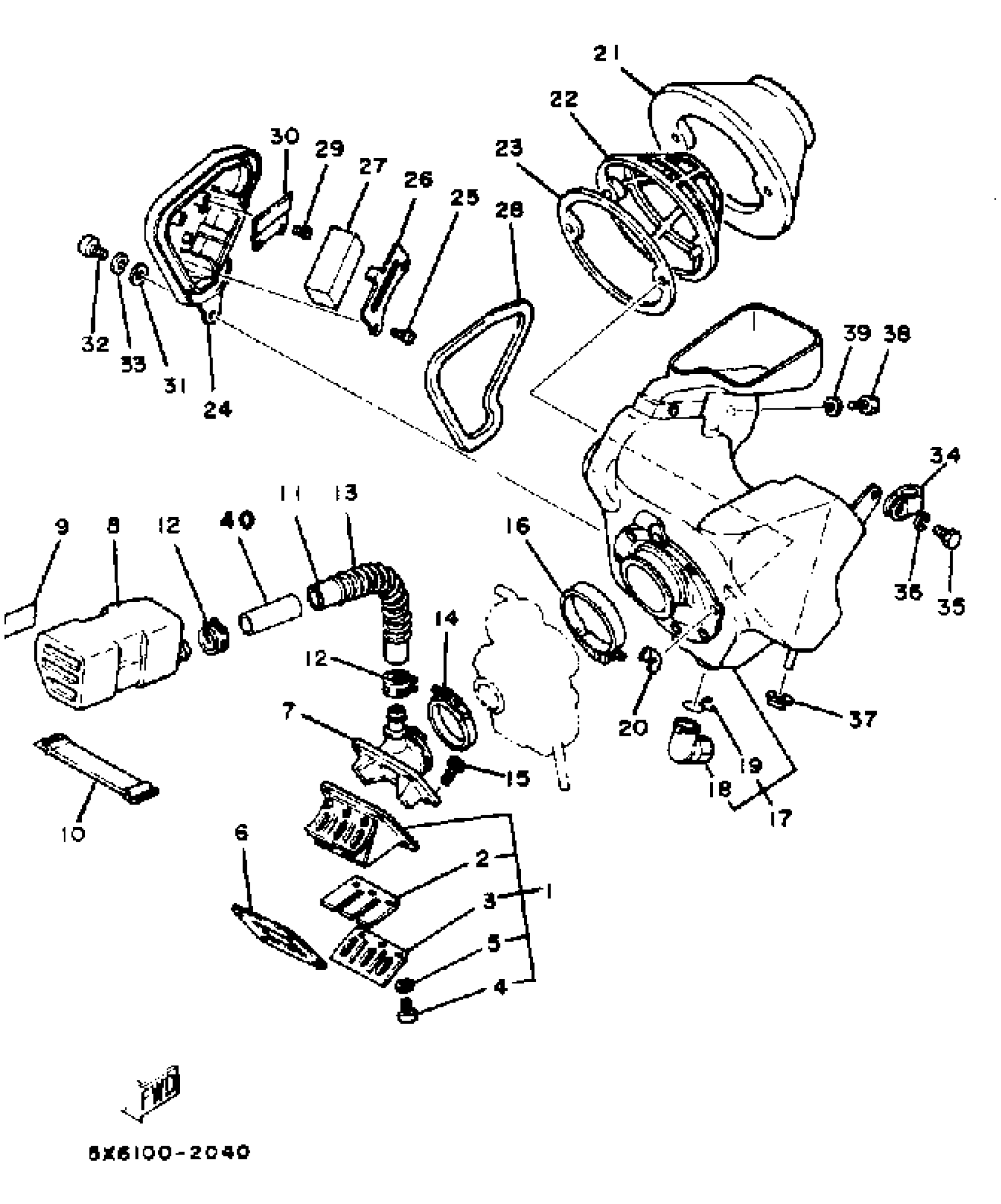

1982 Yamaha YZ490J (YZ490J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1

$40.80

In stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

JOINT, CARBURETOR

5X6-13565-00-00

1
Out of stock

8

CHAMBER, AIR

4V6-13581-00-00

1
Out of stock

9

EMBLEM

4V3-1441K-00-00

1
Out of stock

10

BAND, BATTERY

1E6-82131-00-00

1

$21.34

In stock

11

HOSE

90445-24610-00

1
Out of stock

12

CLIP(4HC)

90467-23177-00

1

$3.05

In stock

13

SPRING, COMPRESSION

90501-10658-00

1
Out of stock

14

CLAMP, HOSE

90460-51109-00

1
Out of stock

15

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

16

CLAMP, HOSE

90460-68231-00

1
Out of stock

17

AIR CLNR CASE ASSEMBLY

5X6-14401-00-00

1
Out of stock

18

SEAL

1W1-14457-01-00

1
Out of stock

19

CLIP

90467-20M15-00

1

$6.23

In stock

20

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

21

ELEMENT, AIR CLNR

3R4-W1442-01-00

1
Out of stock

22

GUIDE, ELEMENT

3R4-14458-00-00

1
Out of stock

23

HOLDER, GUIDE

(4V4-14459-00-00)

1
Out of stock

24

CAP, CLEANER CASE 1

5X5-14412-00-00

1
Out of stock

25

SCREW, TAPPING

97780-40116-00

1

$3.79

In stock

26

PANEL 1

5X5-1441L-00-00

1
Out of stock

27

SEAL 1

3R4-21732-00-00

1
Out of stock

28

SEAL

39W-14452-00-00

1
Out of stock

29

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

30

HOOK

(5X5-14436-00-00)

1
Out of stock

31

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

32

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

33

WASHER, SPRING

92907-06100-00

—
Out of stock

34

STAY 2

4V4-14499-00-00

1
Out of stock

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

GROMMET

90480-13014-00

—

$6.85

In stock

38

BOLT (661)

97013-06012-00

—

$4.71

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

HOSE

90446-29188-00

1
Out of stock
