1982 Yamaha YZ490J (YZ490J) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

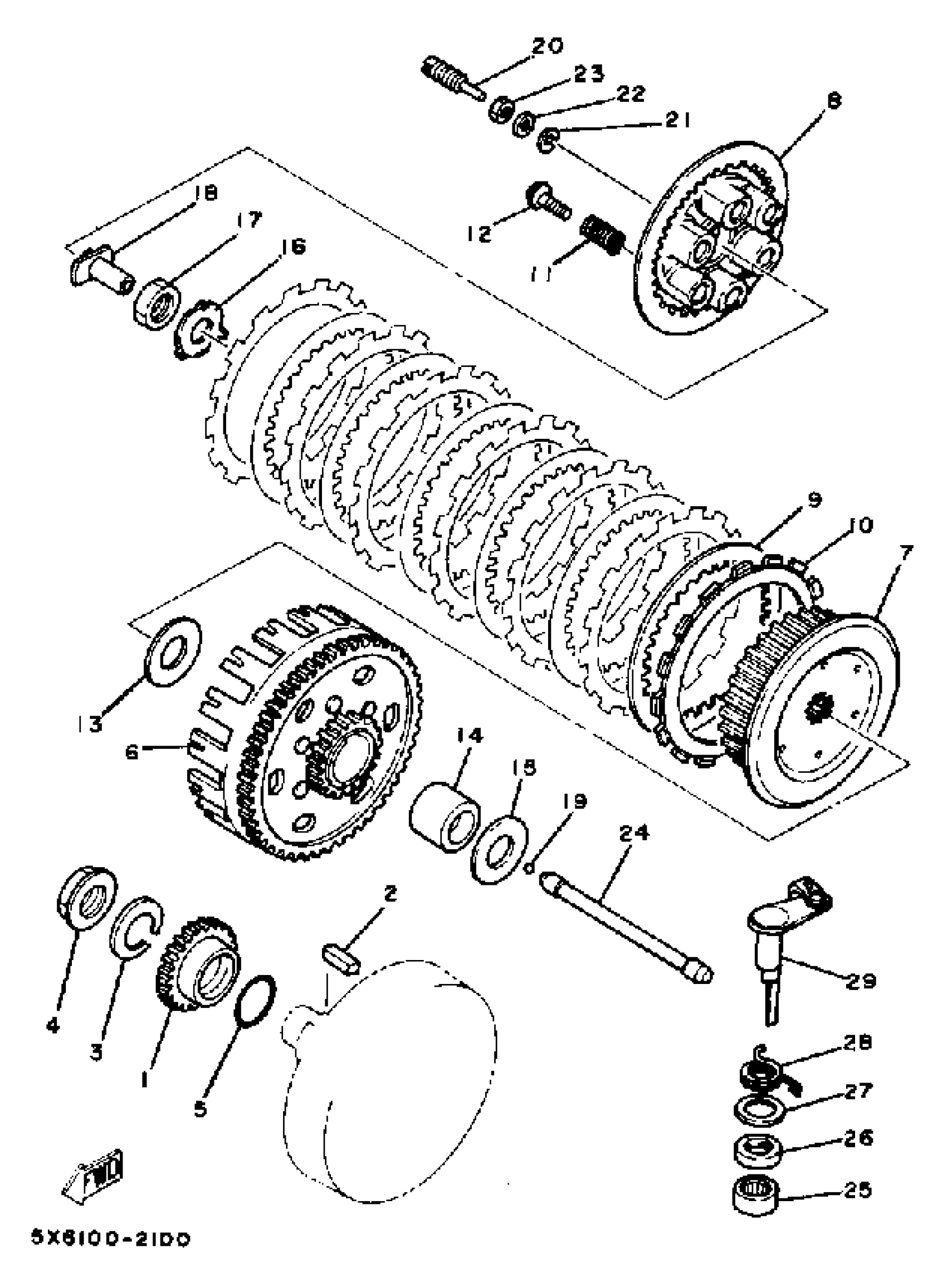

1982 Yamaha YZ490J (YZ490J) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

5X6-16111-00-00

1
Out of stock

2

KEY, STRAIGHT (498)

90282-07019-00

1

$8.69

In stock

3

WASHER(N15)

92907-18100-00

1

$7.09

In stock

4

NUT

90170-18089-00

1
Out of stock

5

O-RING (498)

93210-29282-00

1
Out of stock

6

PRI DRVN GEAR

5X5-16150-00-00

1
Out of stock

7

BOSS, CLUTCH

3R4-16371-01-00

1
Out of stock

8

. PLATE, PRESSURE 1

1M1-16351-00-00

1
Out of stock

9

PLATE, CLUTCH 2

5X5-16325-00-00

1
Out of stock

10

PLATE, FRICTION

5X5-16321-00-00

1

$28.69

In stock

11

SPRING, COMPRESSION (510)

90501-24408-00

1

$3.00

In stock

12

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

13

PLATE, THRUST

2K7-16154-00-00

1

$18.11

In stock

14

SPACER 1

2K7-16181-00-00

1
Out of stock

15

PLATE, THRUST

2K7-16154-00-00

1

$18.11

In stock

16

WASHER, LOCK (3Y1)

90215-20159-00

—

$6.74

In stock

17

NUT (3R4)

90170-20255-00

—

$8.78

In stock

18

ROD, PUSH 1

3R4-16356-00-00

1
Out of stock

19

BALL (1M1)

93515-32029-00

—
Out of stock

20

SCREW (3R4)

90149-08143-00

—
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER, PLATE(49E)

90201-087H6-00

—

$1.62

In stock

23

NUT, HEXAGON SMALL

95317-08700-00

—

$7.05

In stock

24

ROD, PUSH 2 001

3R5-16357-01-00

1
Out of stock

25

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

—

$41.17

In stock

26

OIL SEAL (17X28X6-101)

93102-17004-00

—
Out of stock

27

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

28

SPRING, TORSION

90508-14423-00

1
Out of stock

29

PUSH LEVER ASSEMBLY

4V4-16380-00-00

1
Out of stock
