1990 Yamaha YZ490A (YZ490A) Crankshaft Piston Diagram

← All diagrams

Find the part on the Crankshaft Piston diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

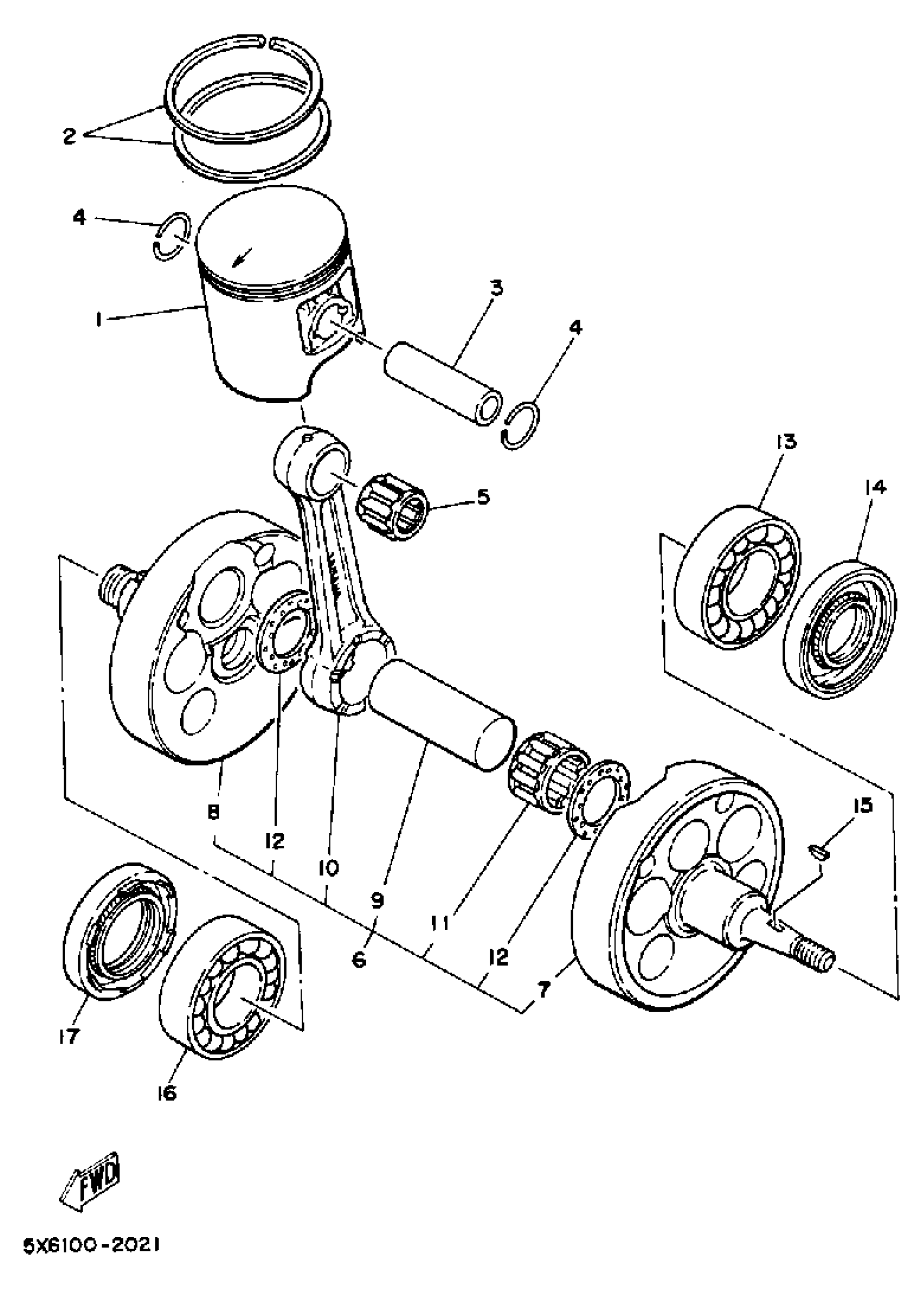

1990 Yamaha YZ490A (YZ490A) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. PISTON STD

40T-11631-00-93

1
Out of stock

1

. PISTON 1ST O/S (25MM)

40T-11635-00-00

1
Out of stock

1

. PISTON 2ND O/S (50MM)

40T-11636-00-00

1
Out of stock

1

. PISTON 3RD O/S (75MM)

40T-11637-00-00

1
Out of stock

1

. PISTON 4TH O/S (100MM)

40T-11638-00-00

1
Out of stock

2

. PISTON RING SET STD

5X6-11601-00-00

1
Out of stock

2

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

1
Out of stock

2

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

1
Out of stock

2

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

1
Out of stock

2

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

1
Out of stock

3

PIN, PISTON

275-11633-00-00

1

$30.66

In stock

4

CIRCLIP (2F1)

93450-19052-00

1

$5.85

In stock

5

1

$41.97

In stock

6

CRANKSHAFT ASSEMBLY (3R5-11400-00) (3R5-11400-00)

40T-11400-00-00

1
Out of stock

7

. CRANK 1

3R5-11412-00-00

1
Out of stock

8

. CRANK 2

3R5-11422-00-00

1
Out of stock

9

PIN, CRANK

3R8-11681-00-00

—

$43.63

In stock

10

ROD, CONNECTING

3R5-11651-00-00

—

$187.49

In stock

11

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

12

WASHER 275116850000

90209-25085-00

—

$10.43

In stock

13

BRG,R-B 6306 72MM 351G KY

93306-30615-00

—

$72.96

In stock

14

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

15

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

16

BRG,R-B 6306 72MM 351G KY

93306-30615-00

—

$72.96

In stock

17

PIN, PISTON

275-11633-00-00

1

$30.66

In stock

17

CONNECTING ROD ASSY

3R5-11650-00-00

—

$287.35

In stock

17

ROD, CONNECTING

3R5-11651-00-00

—

$187.49

In stock

17

PIN, CRANK

3R8-11681-00-00

—

$43.63

In stock

17

PISTON KIT STD

40T-11630-00-00

1
Out of stock

17

PISTON KIT 1ST O/S

40T-11630-10-00

1
Out of stock

17

PISTON KIT 2ND O/S

40T-11630-20-00

1
Out of stock

17

PISTON KIT 3RD (3RD O/S)

40T-11630-30-00

1
Out of stock

17

PISTON KIT (4TH O/S)

40T-11630-40-00

1
Out of stock

17

. PISTON STD

40T-11631-00-93

1
Out of stock

17

. PISTON 1ST O/S (25MM)

40T-11635-00-00

1
Out of stock

17

. PISTON 2ND O/S (50MM)

40T-11636-00-00

1
Out of stock

17

. PISTON 3RD O/S (75MM)

40T-11637-00-00

1
Out of stock

17

. PISTON 4TH O/S (100MM)

40T-11638-00-00

1
Out of stock

17

. PISTON RING SET STD

5X6-11601-00-00

1
Out of stock

17

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

1
Out of stock

17

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

1
Out of stock

17

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

1
Out of stock

17

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

1
Out of stock

17

WASHER 275116850000

90209-25085-00

—

$10.43

In stock

17

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

17

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

17

CIRCLIP (2F1)

93450-19052-00

1

$5.85

In stock
