1990 Yamaha YZ490A (YZ490A) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

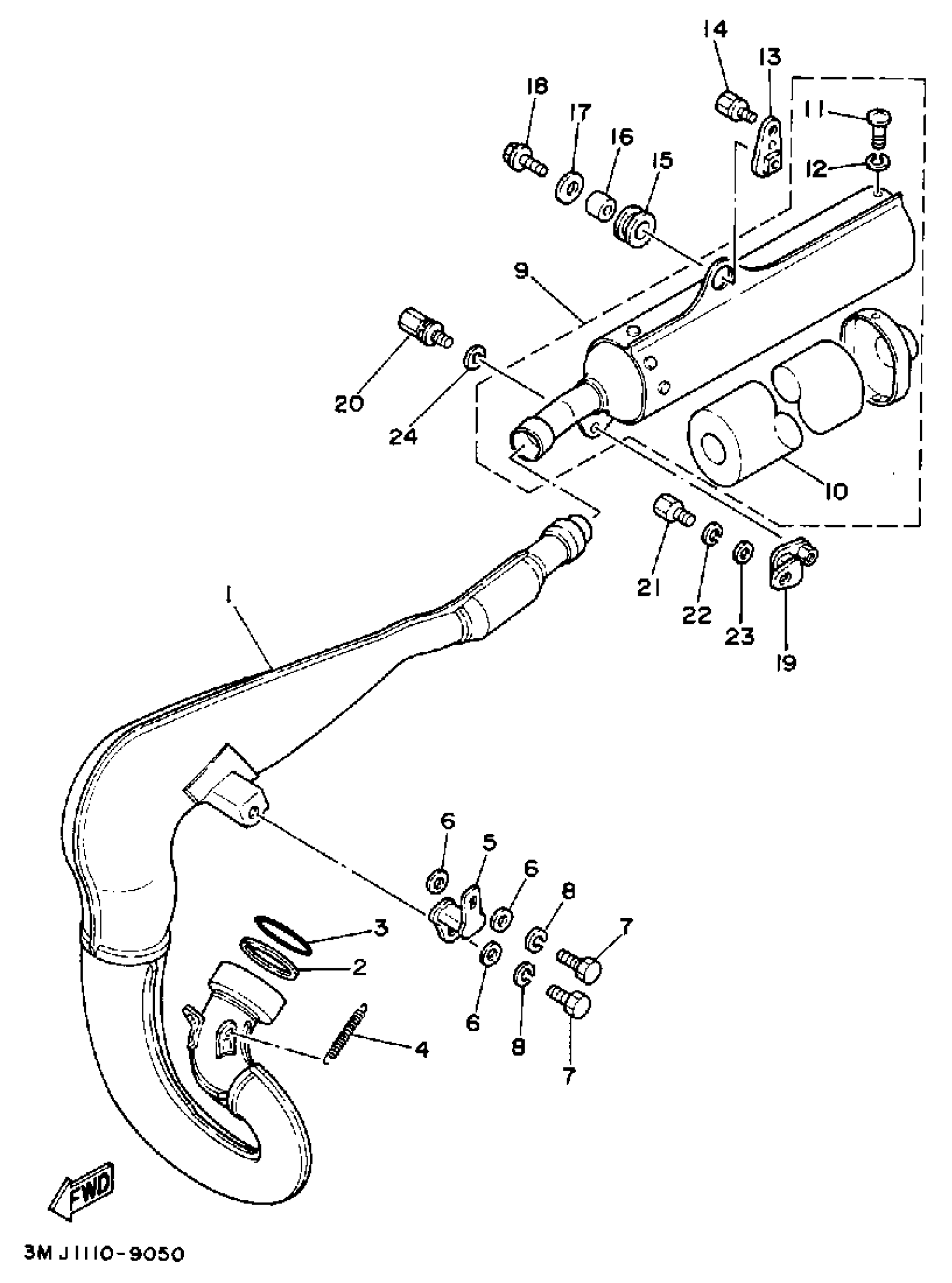

1990 Yamaha YZ490A (YZ490A) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

2HJ-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIP

2HJ-14613-00-00

1
Out of stock

3

O-RING(2HJ)

93210-65752-00

1

$18.98

In stock

4

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

5

STAY, MUFFLER 1

40T-14771-00-00

1
Out of stock

6

WASHER, PLATE (12X)

90201-087F0-00

1

$3.71

In stock

7

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

SILENCER, EXHAUST

2HJ-14753-00-00

1
Out of stock

10

. FIBER

2HJ-1469A-00-00

1
Out of stock

11

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BRACKET

1LX-14744-00-00

1
Out of stock

14

BOLT

90109-08573-00

1
Out of stock

15

DAMPER, MUFFLER

39X-14747-00-00

1
Out of stock

16

COLLAR

90387-081A3-00

1
Out of stock

17

WASHER, PLATE (1A0)

90201-08612-00

—

$6.68

In stock

18

BOLT, FLANGE(4LN)

95817-08025-00

—

$6.17

In stock

19

STAY, MUFFLER 1

565-14771-01-00

—

$16.68

In stock

20

BOLT (3R4)

90109-06551-00

—

$18.26

In stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock
