1990 Yamaha YZ490A (YZ490A) Crankcase Cover Diagram

← All diagrams

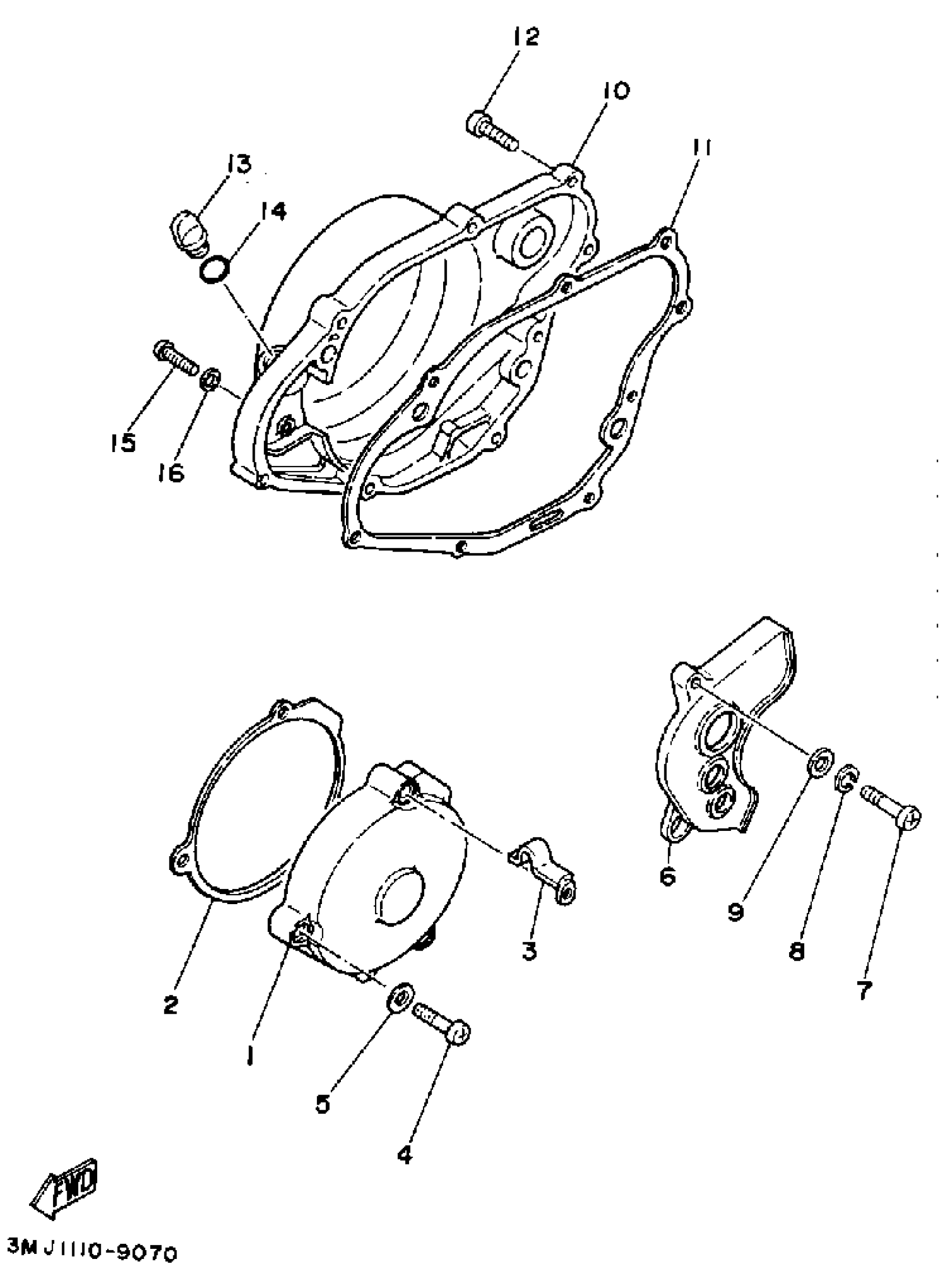

Find the part on the Crankcase Cover diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

40T-15411-00-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

1LV-15451-10-00

1
Out of stock

3

CLAMP

90465-06247-00

1
Out of stock

4

SCREW, PAN

98507-06035-00

1

$6.18

In stock

5

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

6

COVER, CRANKCASE 2

23X-15421-00-00

1

$40.32

In stock

7

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

8

WASHER, SPRING

92907-06100-00

1
Out of stock

9

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

10

COVER, CRANKCASE 3

40T-15431-00-00

1
Out of stock

11

GASKET, CRANKCASE COVER 3

3R4-15462-11-00

1

$29.67

In stock

12

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

13

PLUG, OIL LEVEL

1G8-15362-00-00

1
Out of stock

14

O-RING (26H)

93210-14579-00

1

$5.69

In stock

15

SCREW, PAN

98517-06008-00

1

$6.68

In stock

16

GASKET 838153840000

90430-06016-00

—

$6.18

In stock
