1990 Yamaha YZ490A (YZ490A) AIR Filter Diagram

← All diagrams

Find the part on the AIR Filter diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

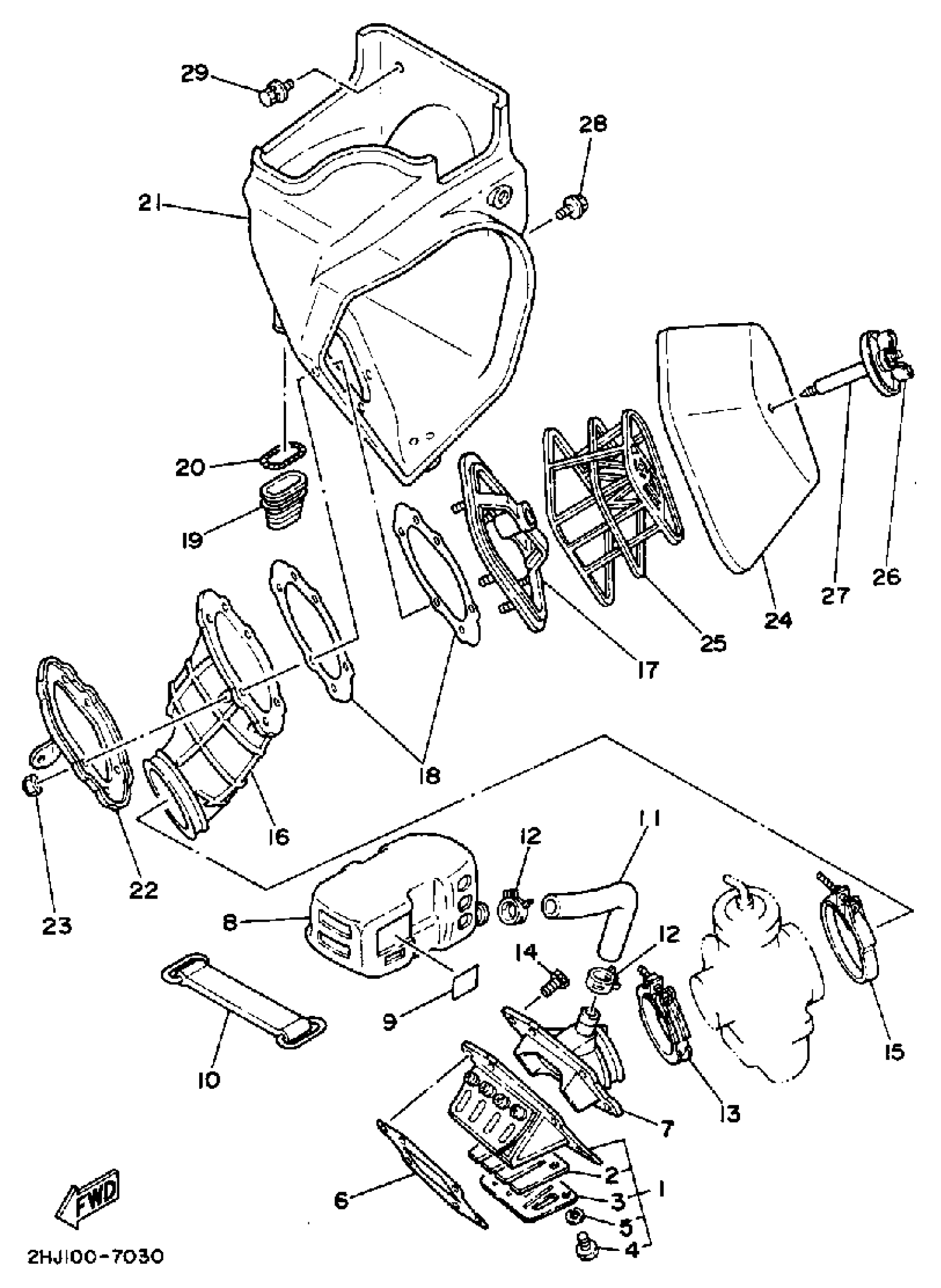

1990 Yamaha YZ490A (YZ490A) AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

56A-13610-01-00

1
Out of stock

2

REED,VALVE

8AB-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

56A-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—

$6.91

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

39X-13621-11-00

1
Out of stock

7

JOINT, CARBURETOR

2HJ-13565-00-00

1
Out of stock

8

CHAMBER, AIR

40T-13581-00-00

1
Out of stock

9

EMBLEM

4V3-1441K-00-00

1
Out of stock

10

BAND

26A-13575-00-00

1
Out of stock

11

PIPE, MANIFOLD

1LV-13584-00-00

1
Out of stock

12

CLIP(4HC)

90467-23177-00

1

$3.05

In stock

13

BAND

86M-13575-00-00

1

$16.45

In stock

14

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

15

CLAMP, HOSE

90460-74254-00

1
Out of stock

16

JOINT, AIR CLNR 1

2HJ-14453-00-00

1
Out of stock

17

HOLDER, GUIDE

56A-14459-00-00

1
Out of stock

18

SEAL

39X-14462-00-00

1
Out of stock

19

SEAL

39K-14457-00-00

1
Out of stock

20

SPRING, COMPRESSION

90504-03033-00

1
Out of stock

21

AIR CLEANER CASE COMP

1LU-W1441-00-00

1
Out of stock

22

PLATE

1LU-14477-00-00

1
Out of stock

23

NUT, U

95617-05100-00

—

$6.68

In stock

24

ELEMENT, AIR CLNR

2HH-14451-00-00

1
Out of stock

25

GUIDE, ELEMENT

2HH-14458-00-00

1
Out of stock

26

PLATE, ELEMENT FTNG

2HH-14468-00-00

1
Out of stock

27

BOLT, WING

90122-06025-00

1
Out of stock

28

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

29

BOLT, WITH WASHER

90119-06152-00

—

$2.74

In stock
