1975 Yamaha YZ250B_360B (YZ360B) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1975 Yamaha YZ250B_360B (YZ360B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

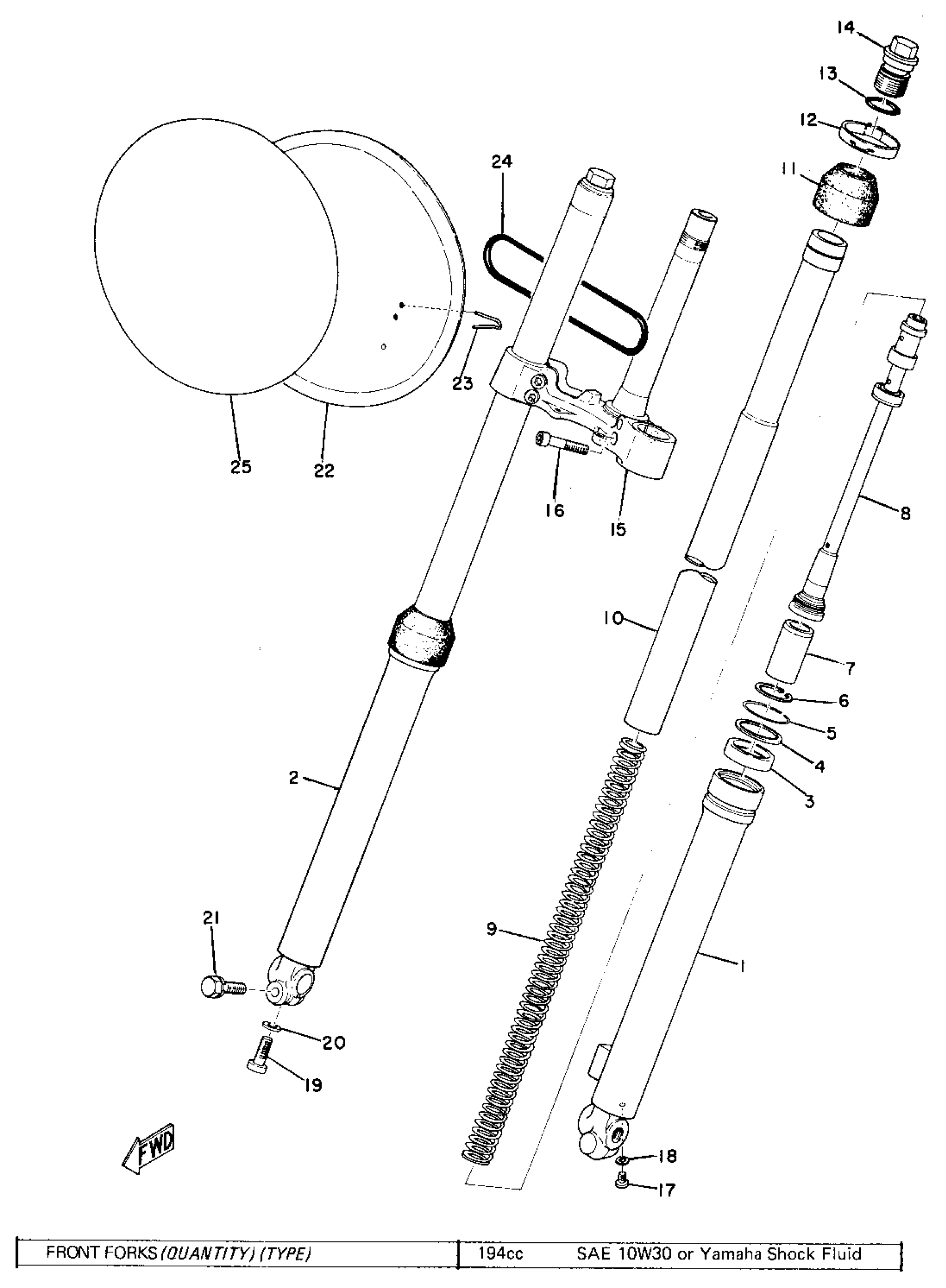

1975 Yamaha YZ250B_360B (YZ360B) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(483-23101-01-00)

1
Out of stock

1

SPRING, FRONT FORK

(509-23141-01-00)

1
Out of stock

2

BOLT 2

(322-23356-00-00)

1
Out of stock

2

TUBE, OUTER 2

(483-23136-00-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1
Out of stock

3

CLAMP, HOSE

(90460-54061-00)

1
Out of stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

4

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(322-23171-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(483-23170-01-00)

1
Out of stock

9

SPRING, FRONT FORK

(363-23141-01-00)

1
Out of stock

10

SPRING, FRONT FORK

(509-23141-01-00)

1
Out of stock

11

. SEAL, DUST

292-23144-00-00

1
Out of stock

12

CLAMP, HOSE

(90460-54061-00)

1
Out of stock

13

. GASKET

214-23114-00-00

1
Out of stock

14

BOLT, CAP

(291-23111-60-00)

1
Out of stock

15

BRACKET, LOWER

(483-23345-00-33)

1
Out of stock

16

BOLT (1E6)

90101-08340-00

—
Out of stock

17

NUT, OUTER TUBE

(447-23127-00-00)

1
Out of stock

18

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—
Out of stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—
Out of stock

21

GASKET

509-23158-L0-00

—
Out of stock

22

. BOLT 1 (90119-08011)

J60-23346-00-00

1
Out of stock

23

HOLDER, CABLE 2

(434-23319-00-00)

1
Out of stock

24

PLATE, NUMBER

322-23485-00-00

1
Out of stock

25

STAY, PLATE

431-23486-02-00

1
Out of stock

26

O-RING

93210-45191-00

1
Out of stock

27

EMBLEM

322-23395-00-00

1
Out of stock
