1990 Yamaha YZ250WRA (YZ250WRA) Front Fork Diagram

← All diagrams

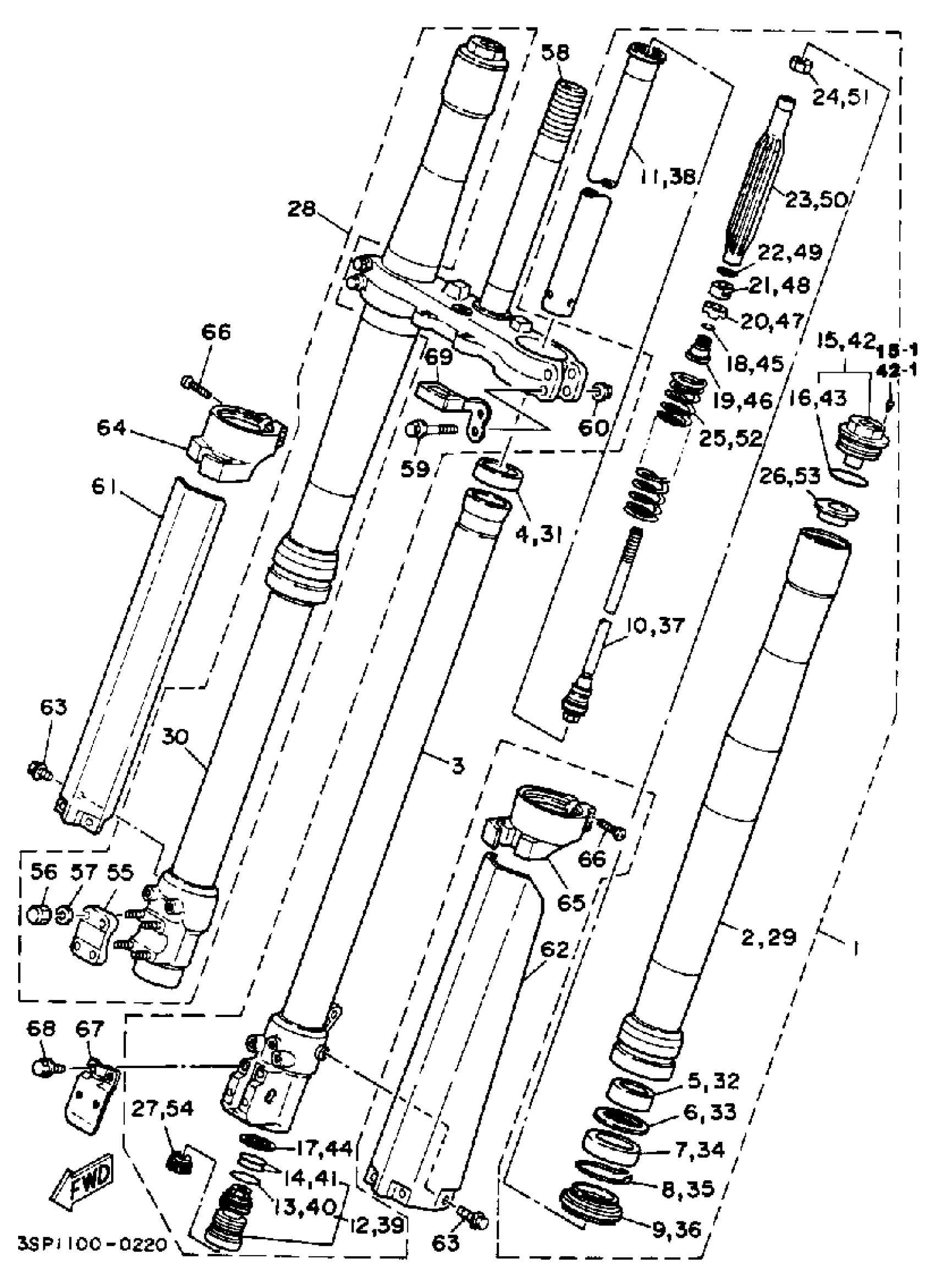

Find the part on the Front Fork diagram for your 1990 Yamaha YZ250WRA (YZ250WRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ250WRA (YZ250WRA) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

B0LT, SPECIAL

3JD-23394-00-00

—
Out of stock

1

FRONT FORK ASSEMBLY LH

(3RB-23102-L0-00)

1
Out of stock

2

. TUBE, OUTER 2

3RB-23136-L0-00

1
Out of stock

3

. INNER TUBE COMP 2

3SP-23120-L0-00

1
Out of stock

4

METAL, SLIDE

4FM-23171-40-00

1

$20.37

In stock

5

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

6

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

7

OIL SEAL

3SP-23145-L0-00

1
Out of stock

8

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

9

SEAL, DUST

3SP-23144-L1-00

1
Out of stock

10

. PISTON ROD ASSEMBLY

3SP-2314A-L0-00

1
Out of stock

11

. CYLINDER COMP, FRONT FORK

3SP-23170-L0-00

1
Out of stock

12

. VALVE COMP

3SP-2316A-L0-00

1
Out of stock

13

.. O-RING

3SP-23147-L0-00

1

$0.83

In stock

14

.. O-RING

3JD-23147-M0-00

1

$3.51

In stock

15

. BOLT, CAP

3SP-23111-L0-00

1
Out of stock

16

O-RING

3SP-23147-M0-00

—
Out of stock

17

. GASKET

3JD-23158-L0-00

1
Out of stock

18

. RING, SNAP

3SP-23153-L0-00

1
Out of stock

19

. COLLAR

3SP-23113-L0-00

1
Out of stock

20

. SPACER, OIL LOCK

3SP-23166-L0-00

1
Out of stock

21

. NUT, SPECIAL

3SP-23393-L0-00

1
Out of stock

22

. O-RING

3JD-23147-L0-00

1
Out of stock

23

. SEAT, SPRING UPPER

3SP-23142-L0-00

1
Out of stock

24

NUT

3SP-23357-L0-00

—
Out of stock

25

. SPRING, FRONT FORK (K=0390)

3SP-23141-L0-00

1
Out of stock

26

. SEAT, SPRING LOWER

3SP-23143-L0-00

1
Out of stock

27

PLUG

3JD-2312G-L0-00

—
Out of stock

28

FRONT FORK ASSEMBLY RH

(3RB-23103-L0-00)

1
Out of stock

29

. TUBE, OUTER 2

3RB-23136-L0-00

1
Out of stock

30

. INNER TUBE COMP 1

3SP-23110-L0-00

1
Out of stock

31

METAL, SLIDE

4FM-23171-40-00

1

$20.37

In stock

32

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

33

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

34

OIL SEAL

3SP-23145-L0-00

1
Out of stock

35

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

36

SEAL, DUST

3SP-23144-L1-00

1
Out of stock

37

. PISTON ROD ASSEMBLY

3SP-2314A-L0-00

1
Out of stock

38

. CYLINDER COMP, FRONT FORK

3SP-23170-L0-00

1
Out of stock

39

. VALVE COMP

3SP-2316A-L0-00

1
Out of stock

40

.. O-RING

3SP-23147-L0-00

1

$0.83

In stock

41

.. O-RING

3JD-23147-M0-00

1

$3.51

In stock

42

. BOLT, CAP

3SP-23111-L0-00

1
Out of stock

43

O-RING

3SP-23147-M0-00

—
Out of stock

44

. GASKET

3JD-23158-L0-00

1
Out of stock

45

. RING, SNAP

3SP-23153-L0-00

1
Out of stock

46

. COLLAR

3SP-23113-L0-00

1
Out of stock

47

. SPACER, OIL LOCK

3SP-23166-L0-00

1
Out of stock

48

. NUT, SPECIAL

3SP-23393-L0-00

1
Out of stock

49

. O-RING

3JD-23147-L0-00

1
Out of stock

50

. SEAT, SPRING UPPER

3SP-23142-L0-00

1
Out of stock

51

NUT

3SP-23357-L0-00

—
Out of stock

52

. SPRING, FRONT FORK (K=0390)

3SP-23141-L0-00

1
Out of stock

53

. SEAT, SPRING LOWER

3SP-23143-L0-00

1
Out of stock

54

PLUG

3JD-2312G-L0-00

—
Out of stock

55

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

56

NUT

5Y3-23393-00-00

—

$8.17

In stock

57

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

58

UNDER BRACKET COMP

3JD-23340-L0-00

1
Out of stock

59

BOLT, SMALL FLANGE

95024-08060-00

—

$5.69

In stock

60

NUT, FLANGE

95704-08500-00

—
Out of stock

61

PROTECTOR COMP.2

3XJ-2314J-L0-00

1
Out of stock

62

PROTECTER COMP., 1

3XJ-2314H-L0-00

1
Out of stock

63

BOLT 2

3SP-23356-L0-00

—

$5.19

In stock

64

PROTECTER GUIDE COMP., 2

3SP-2314G-L0-00

—

$24.98

In stock

65

PROTECTER GUIDE COMP., 1

3SP-2314F-L0-00

—

$41.29

In stock

66

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

67

COVER, HOSE

3SP-2314E-L0-00

1
Out of stock

68

BOLT, FLANGE(3BM)

95024-06008-00

—
Out of stock

69

GUIDE, CABLE

3JD-23389-01-00

1
Out of stock
