1990 Yamaha YZ250WRA (YZ250WRA) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1990 Yamaha YZ250WRA (YZ250WRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

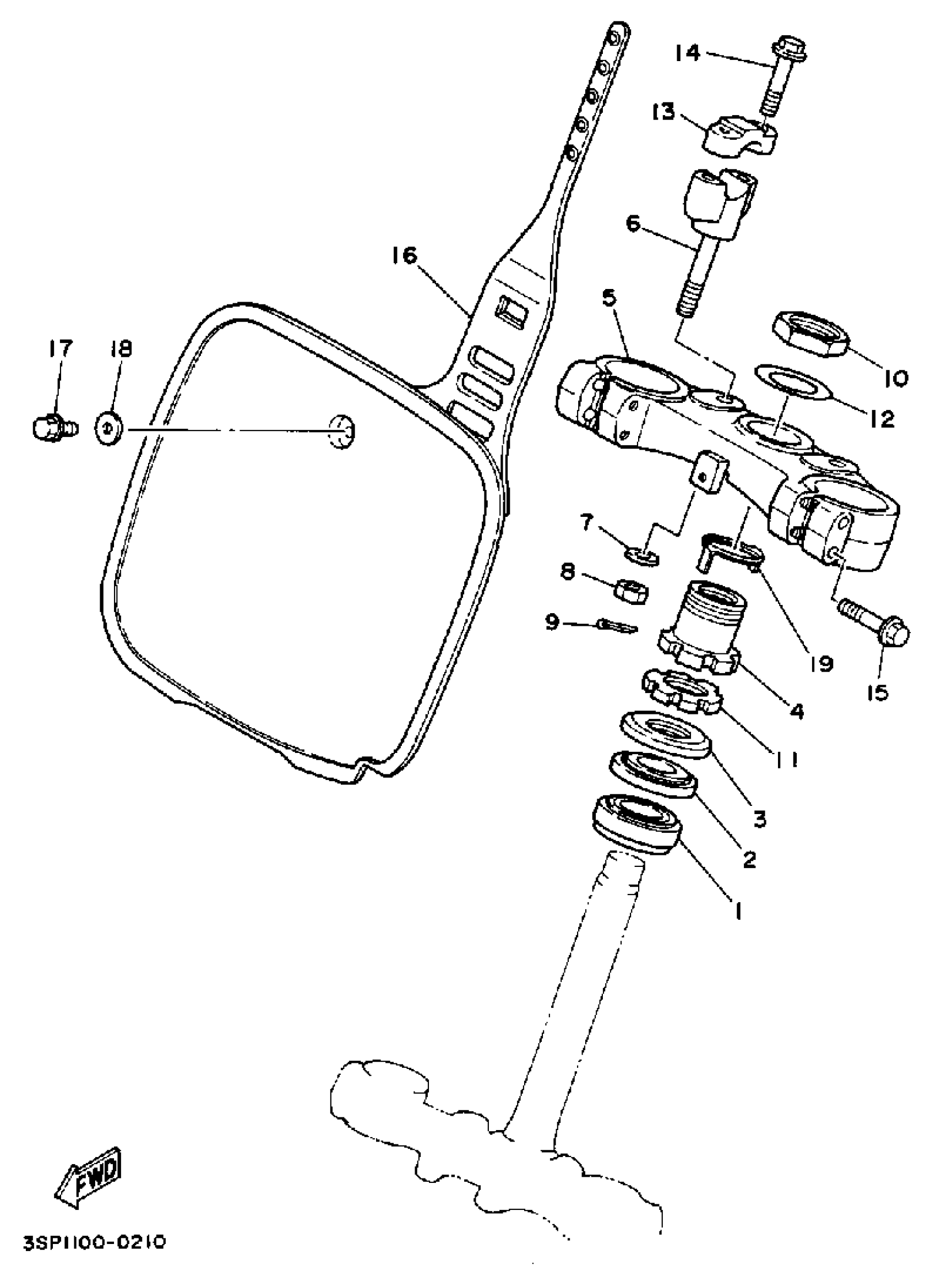

1990 Yamaha YZ250WRA (YZ250WRA) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4EW)

93332-00078-00

1
Out of stock

2

BEARING(4EW)

93332-00078-00

1
Out of stock

3

COVER, BALL RACE 2

2HG-23416-00-00

—
Out of stock

4

NUT(3JD)

90179-28603-00

—
Out of stock

5

CROWN, HANDLE

3SP-23435-01-00

1
Out of stock

6

HOLDER, HANDLE LOWER

3SP-23442-00-00

1
Out of stock

7

YBS66-12 WASHER,PLAIN

92990-12200-00

1
Out of stock

8

NUT, U (4PM)

95617-12100-00

1
Out of stock

9

PIN, COTTER

91490-25020-00

1
Out of stock

10

NUT

90170-36394-00

1
Out of stock

11

NUT

90179-28602-00

1
Out of stock

12

WASHER, PLATE

90201-365M5-00

1
Out of stock

13

HOLDER, HANDLE UPPER

3SP-23441-00-00

1
Out of stock

14

BOLT, FLANGE(3EF)

95024-08035-00

1
Out of stock

15

BOLT, FLANGE(3XF)

95024-08050-00

1
Out of stock

16

PLATE, NUMBER

3XJ-23485-01-00

—
Out of stock

17

BOLT, FLANGE(2UJ)

95024-06012-00

—
Out of stock

18

WASHER, PLATE (583 REAR FENDER

90201-06571-00

—
Out of stock

19

WASHER, SPECIAL

3SP-23418-00-00

1
Out of stock
