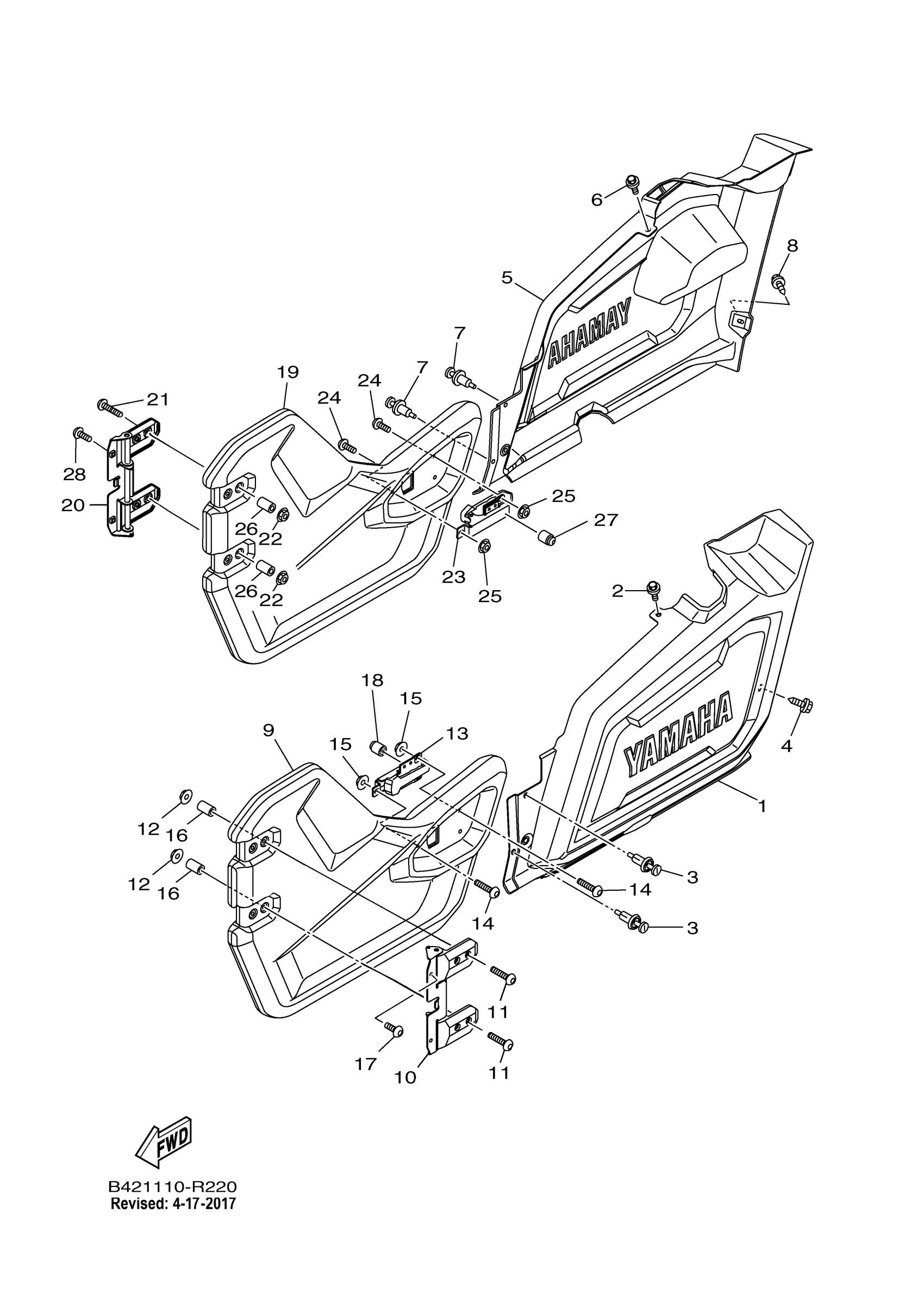

Yamaha YXM70VDHHH (VIKING) BD97 2017 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

1XD-F1721-00-00

$31.68

2

BOLT, WITH WASHER

90119-06226-00

$2.12

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

COVER, SIDE 3

1XD-F1731-00-00

$28.82

6

BOLT, WITH WASHER

90119-06226-00

$2.12

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

PNL., DOOR FR. LH

1XD-K8557-11-00

$65.83

10

HINGE ASSY

1XD-F4772-00-00

$37.92

11

BOLT

90109-06897-00

$0.84

12

NUT, U FLANGE

95604-06200-00

$2.19

13

BODY, LATCH 1

2MB-K7171-00-00

$56.31

14

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

15

NUT, U FLANGE

95604-06200-00

$2.19

16

COLLAR

90387-06304-00

Unavailable

17

BOLT 2

5B4-F1722-00-00

Unavailable

18

PAD

2MB-F8378-00-00

Unavailable

19

PNL., DOOR FR. LH

1XD-K8557-11-00

$65.83

20

HINGE ASSY

1XD-F4772-00-00

$37.92

21

BOLT

90109-06897-00

$0.84

22

NUT, U FLANGE

95604-06200-00

$2.19

23

BODY, LATCH 2

2MB-K7172-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

25

NUT, U FLANGE

95604-06200-00

$2.19

26

COLLAR

90387-06304-00

Unavailable

27

PAD

2MB-F8378-00-00

Unavailable

28

BOLT 2

5B4-F1722-00-00

Unavailable
