2017 Yamaha Viking (YXM70VDHHH) Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2017 Yamaha Viking (YXM70VDHHH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

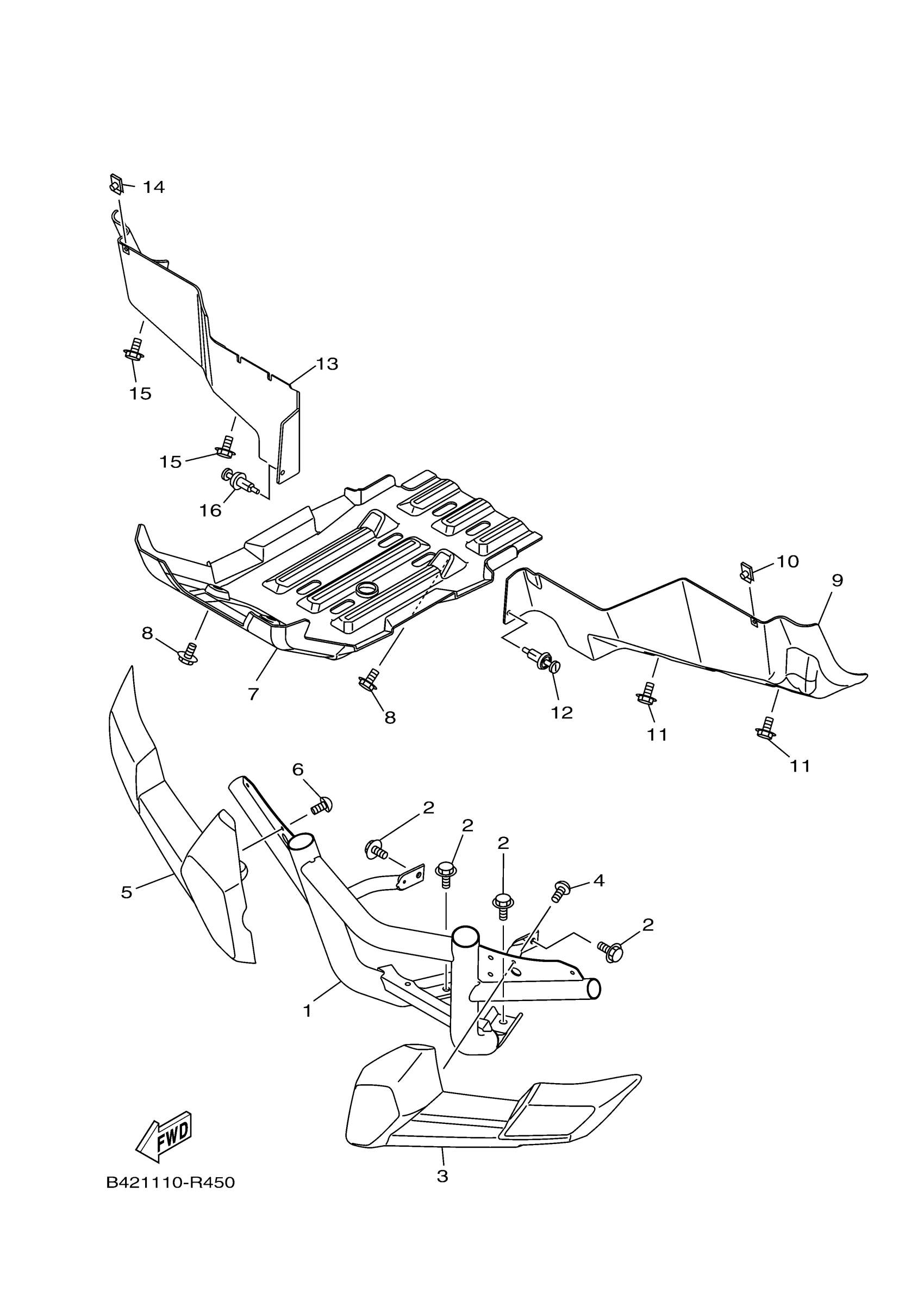

2017 Yamaha Viking (YXM70VDHHH) Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, CARRY FRONT

1XD-F845N-01-00

1

$229.67

In stock

2

BOLT, FLANGE

95812-10016-00

1

$8.25

In stock

3

COVER 1

1XD-F842M-02-00

1

$41.61

In stock

4

SCREW, TAPPING

90167-06800-00

1

$0.74

In stock

5

COVER 2

1XD-F842N-01-00

1

$40.35

In stock

6

SCREW, TAPPING

90167-06800-00

1

$0.74

In stock

7

COVER, LOWER

1XD-F8385-02-00

—

$47.03

In stock

8

BOLT

90109-06202-00

1

$2.46

In stock

9

GUARD 1

1XD-F2361-00-00

1

$23.66

In stock

10

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

11

BOLT

90109-06202-00

1

$2.46

In stock

12

RIVET

90269-06800-00

1

$1.35

In stock

13

GUARD 2

1XD-F2362-00-00

1

$47.48

In stock

14

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

15

BOLT

90109-06202-00

1

$2.46

In stock

16

RIVET

90269-06800-00

1

$1.35

In stock
