2018 Yamaha Wolverine (YXE70WDBJD) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

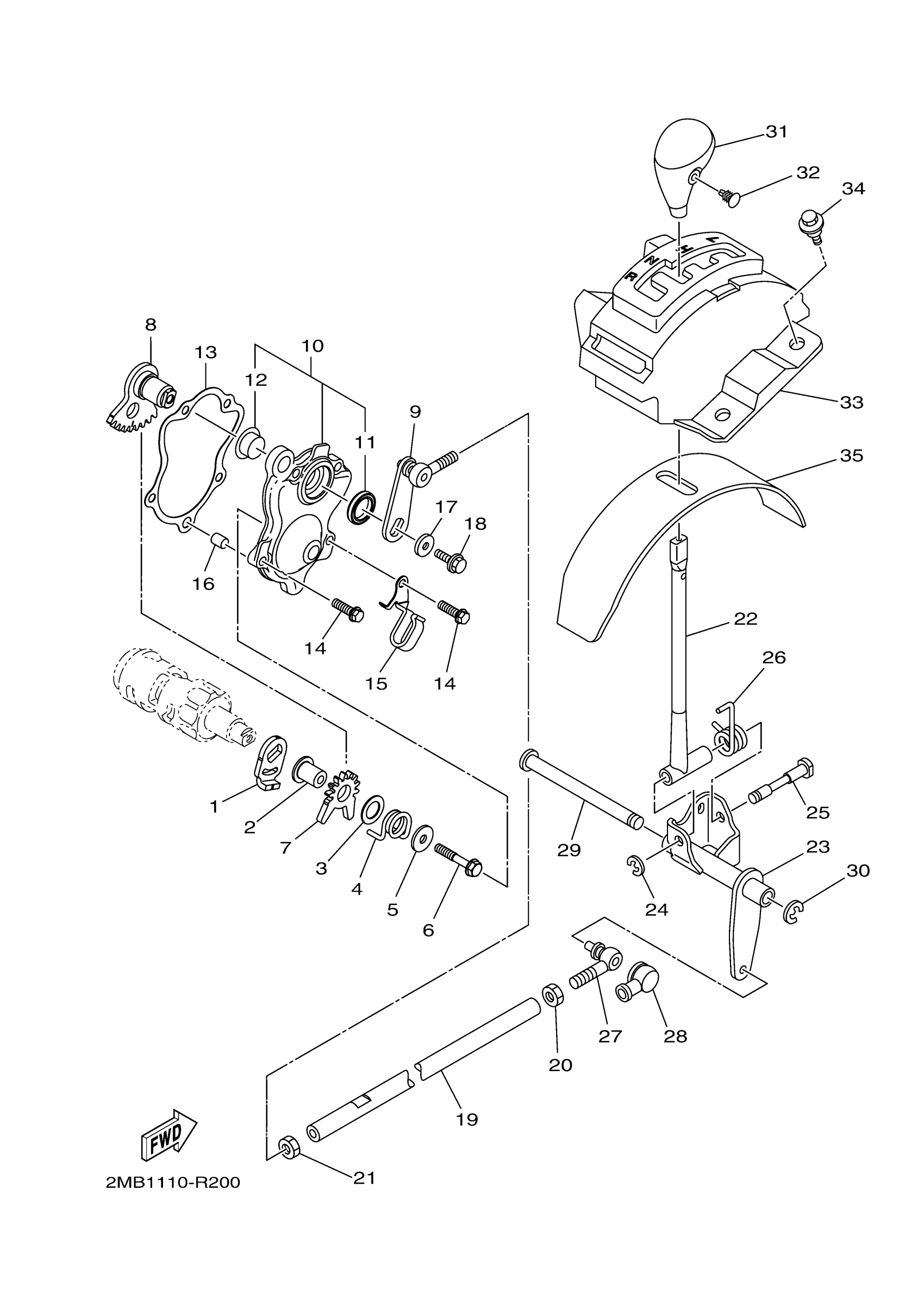

2018 Yamaha Wolverine (YXE70WDBJD) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER

2MB-E8198-00-00

1

$5.52

In stock

2

COLLAR, SHIFTER

2MB-E8413-00-00

—
Out of stock

3

WASHER 1

2MB-E8137-00-00

—

$2.15

In stock

4

SPRING

2MB-E8183-00-00

—

$9.97

In stock

5

WASHER 2

2MB-E8138-00-00

1

$1.83

In stock

6

BOLT 2

2MB-E5482-20-00

—

$1.91

In stock

7

LEVER

2MB-E8191-00-00

—
Out of stock

8

SHIFT SHAFT COMP.

2MB-E8103-00-00

1

$73.57

In stock

9

SHIFT GUIDE COMP.

2MB-18104-00-00

1

$40.49

In stock

10

SHIFTER BRKT. ASSY

2MB-E8380-00-00

—
Out of stock

11

OIL SEAL 2

2MB-E76G3-00-00

1

$8.72

In stock

12

SPACER 2

3B4-18582-00-00

—

$15.11

In stock

13

GASKET

2MB-E8146-00-00

1

$1.72

In stock

14

BOLT 1

2MB-E5481-10-00

1

$1.02

In stock

15

CLAMP 2

2MB-E261G-00-00

—

$10.91

In stock

16

PIN, DOWEL

2MB-E8438-00-00

—

$3.03

In stock

17

WASHER, PLATE

90201-06036-00

—

$6.26

In stock

18

BOLT, FLANGE

90105-06175-00

—

$2.54

In stock

19

ROD, SHIFT

2MB-18115-00-00

—

$36.25

In stock

20

NUT(1KT)

90170-08358-00

—
Out of stock

21

. NUT

95380-08700-00

1

$3.07

In stock

22

LEVER COMP. 1

1XD-E8190-10-00

—

$20.58

In stock

23

ARM, SHIFT 2

2MB-E8169-00-00

1
Out of stock

24

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

25

SHAFT, SHIFT

1HP-E8125-00-00

—

$9.92

In stock

26

SPRING, RETURN

1HP-E8196-00-00

—

$6.02

In stock

27

JOINT 2

1KT-18157-00-00

—
Out of stock

28

COVER, DUST

2H9-18154-00-00

—
Out of stock

29

PIN, SHIFT

2MB-18173-00-00

—

$26.85

In stock

30

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

31

KNOB, SHIFT LEVER

28P-18174-00-00

—

$19.09

In stock

32

RIVET(81E)

90269-05055-00

—

$7.02

In stock

33

GUIDE, SHIFT

1XD-E8172-00-00

1

$11.28

In stock

34

BOLT

90109-06172-00

—
Out of stock

35

COVER, DUST

1HP-E8154-01-00

—

$5.42

In stock
