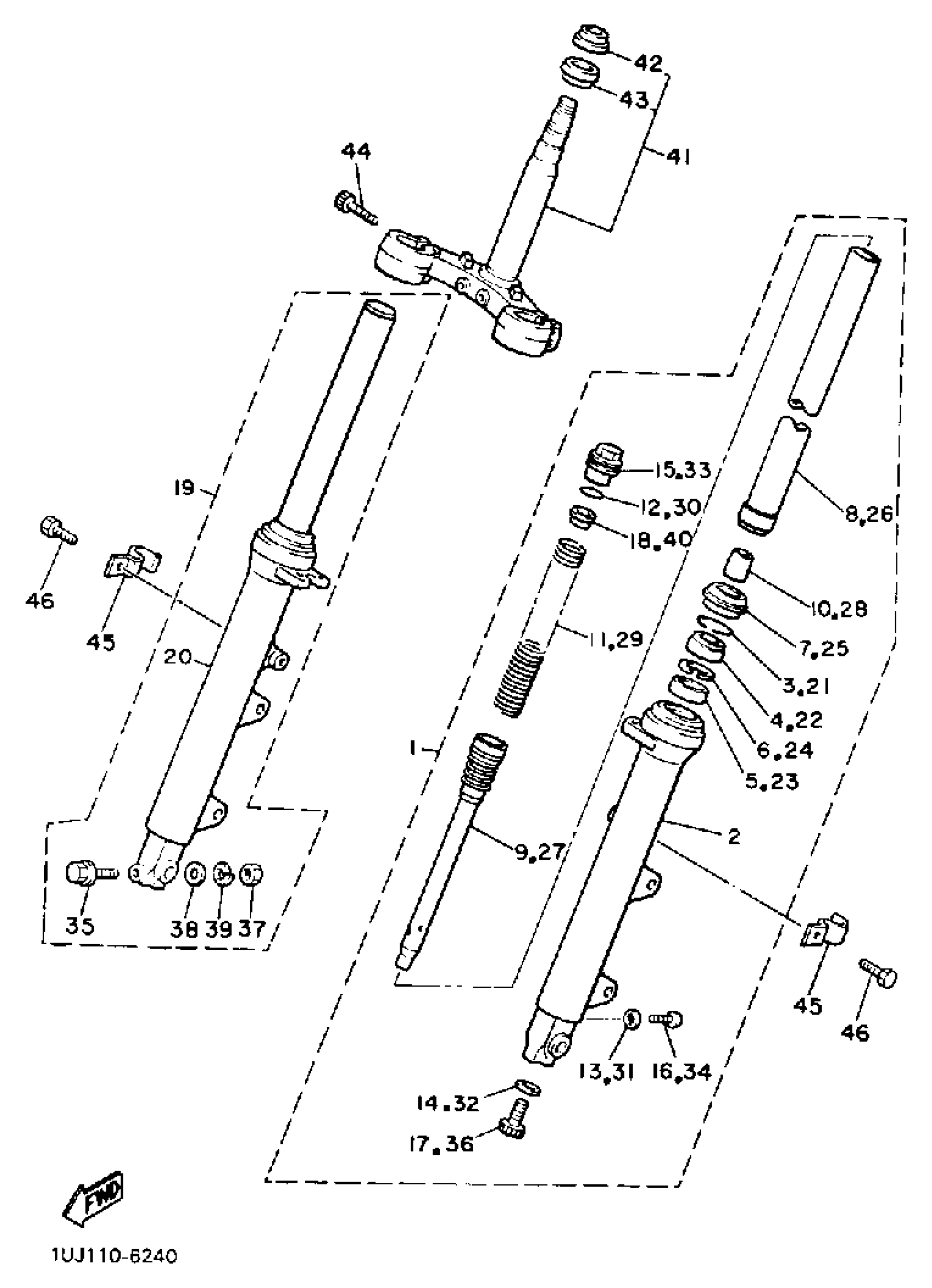

Yamaha YX600TC (RADIAN CA) 1987 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H)

1UJ-23102-00-00

Unavailable

2

. TUBE, OUTER 1

1JK-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$4.53

4

OIL SEAL

4ES-23145-00-00

$17.70

5

METAL, SLIDE 1

30X-23125-00-00

$25.53

6

. UNAVAILABLE IN PRICE BOOK

3K5-23149-00-00

Unavailable

7

SEAL, DUST

33M-23144-00-00

$22.97

8

. INNER TUBE 1

1UJ-23110-00-00

Unavailable

9

. CYLINDER, FRTFRK

1UJ-23170-00-00

Unavailable

10

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

11

. SPRING, FRONT FORK

1UJ-23141-00-00

Unavailable

12

O-RING

1W1-23114-L0-00

$8.31

13

GASKET, DRAIN PLUG

122-23129-00-00

$5.60

14

GASKET

509-23158-L0-00

$13.67

15

. BOLT, CAP

53Y-23111-00-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

18

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

19

FRONT FORK ASSEMBLY R (R.H)

1UJ-23103-00-00

Unavailable

20

. TUBE, OUTER 2

1JK-23136-00-00

Unavailable

21

RING, SNAP

4A1-23156-00-00

$4.53

22

OIL SEAL

4ES-23145-00-00

$17.70

23

METAL, SLIDE 1

30X-23125-00-00

$25.53

24

WASHER, SPRING UPPER

5K5-23149-00-00

Unavailable

25

SEAL, DUST

33M-23144-00-00

$22.97

26

. INNER TUBE 1

1UJ-23110-00-00

Unavailable

27

. CYLINDER, FRTFRK

1UJ-23170-00-00

Unavailable

28

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

29

. SPRING, FRONT FORK

1UJ-23141-00-00

Unavailable

30

O-RING

1W1-23114-L0-00

$8.31

31

GASKET, DRAIN PLUG

122-23129-00-00

$5.60

32

GASKET

509-23158-L0-00

$13.67

33

. BOLT, CAP

53Y-23111-00-00

Unavailable

34

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

35

. BOLT, AXLE HOLDER

1UJ-23128-00-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

37

NUT(6L2)

95333-08600-00

Unavailable

38

.. WASHER, PLATE

92990-08600-00

$2.18

39

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

40

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

41

UNDER BRACKET

1UJ-23340-00-00

Unavailable

42

RACE, BALL 1

B6E-23411-00-00

Unavailable

43

SEAL, DUST

164-23462-00-00

Unavailable

44

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

45

PLATE 2

1JK-21524-00-00

Unavailable

46

BOLT,SOCKET HEAD

91314-06012-00

Unavailable
