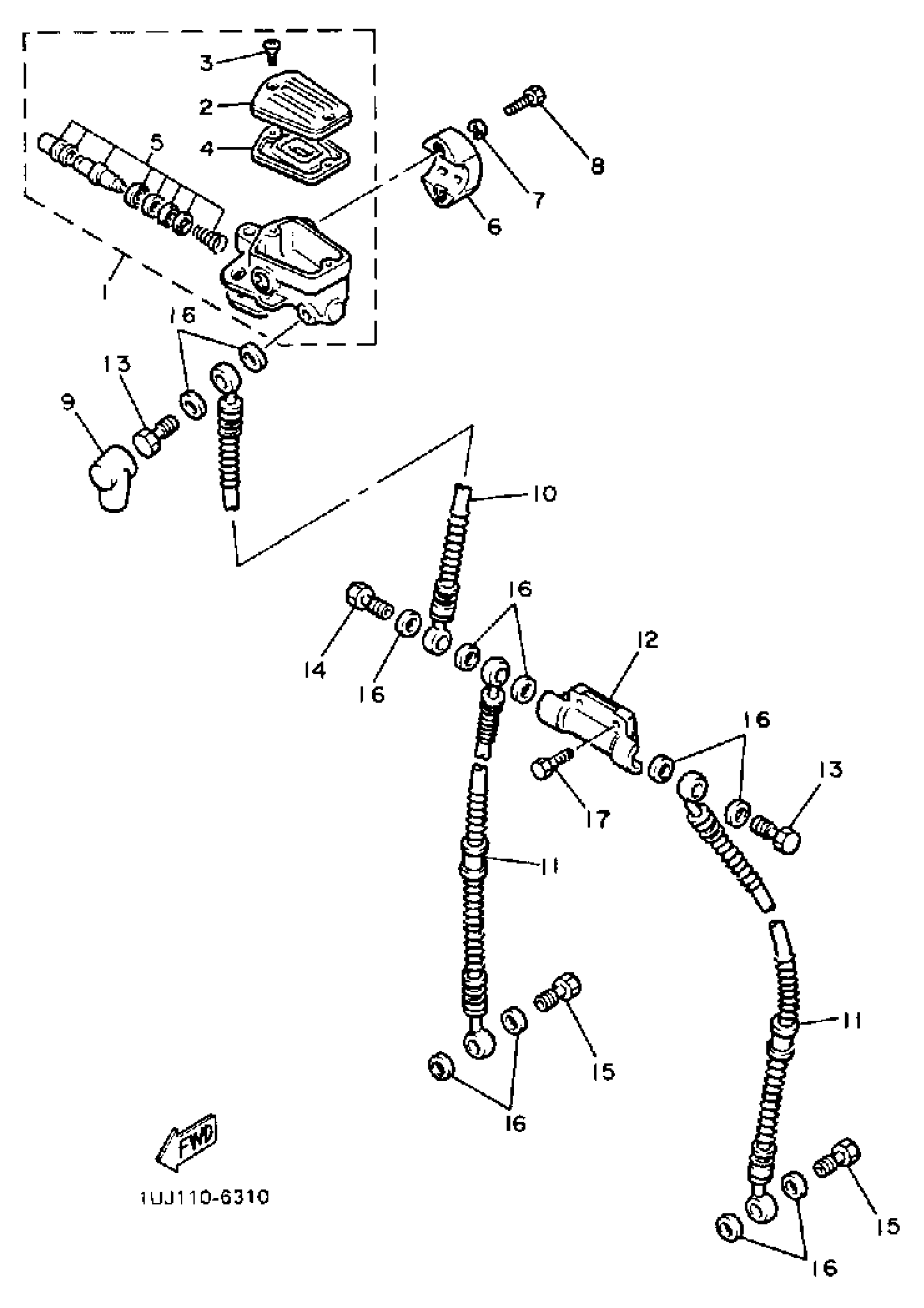

Yamaha YX600TC (RADIAN CA) 1987 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$22.15

3

SCREW, FLAT

98707-04012-00

$1.49

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$28.47

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$21.55

7

WASHER, SPRING

92907-06100-00

$1.49

8

BOLT,SOCKET

91317-06025-00

$1.95

9

BOOT, MASTER CYLINDER

306-25862-00-00

$42.06

10

HOSE,BRAKE 1

99999-02545-00

Unavailable

11

HOSE,BRAKE 2

99999-02546-00

Unavailable

12

JOINT

1AA-25885-00-00

Unavailable

13

BOLT, UNION(3GM)

90401-10159-00

$8.43

14

BOLT, UNION

90401-10038-00

$10.68

15

BOLT, UNION(3GM)

90401-10159-00

$8.43

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
