1986 Yamaha Radian CA (YX600SC) Electrical 2 Diagram

← All diagrams

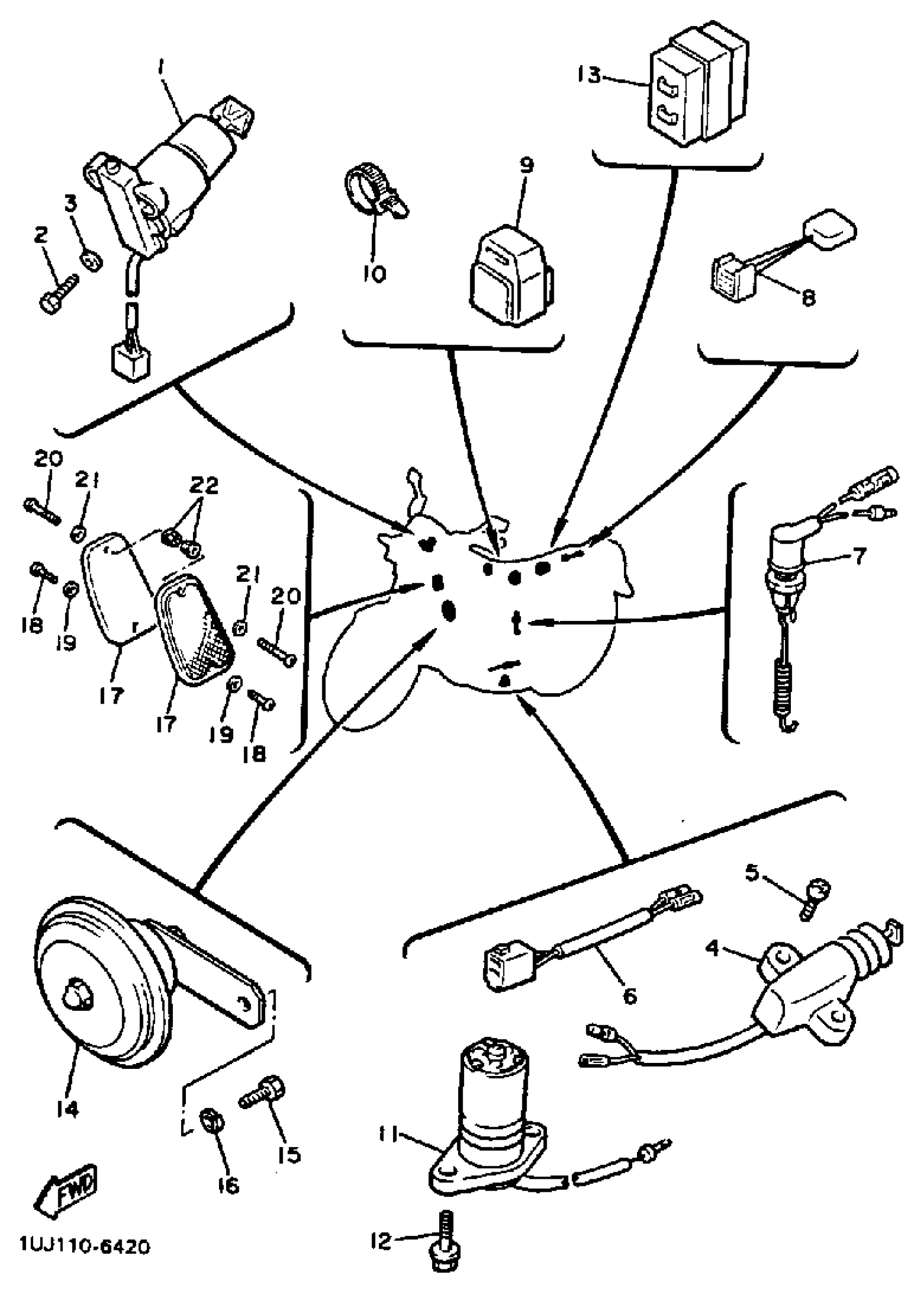

Find the part on the Electrical 2 diagram for your 1986 Yamaha Radian CA (YX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Radian CA (YX600SC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWCH STRG LCK

1UF-82501-00-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

4

SWITCH, SIDE STAND

4DH-82566-00-00

—
Out of stock

5

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

6

WIRE,LEAD

49A-82541-00-00

1
Out of stock

7

STOP SWITCH ASSY

2F1-82530-03-00

1
Out of stock

8

RECTIFIER 2

4U8-81980-M0-00

—
Out of stock

9

RELAY ASSY

4U8-81950-03-00

—
Out of stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

OIL LEVEL GAUGE ASSEMBLY

4U8-85720-00-00

1
Out of stock

12

BOLT, WASHER BASED(JA9)

90105-06696-00

1

$6.29

In stock

13

FLASHER RELAY ASSY

41R-83350-72-00

—
Out of stock

14

HORN (25G-83371-00)

3H7-83371-00-00

1
Out of stock

15

BOLT, HEXAGON

97027-08012-00

1
Out of stock

16

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

17

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

1
Out of stock

18

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

20

UNAVAILABLE IN PRICE BOOK (802-84131-00)

1M1-84524-00-00

1
Out of stock

21

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

22

NUT, FLANGE

95707-04500-00

—

$6.68

In stock
← Electrical 1 Generator →

More Electrical diagrams
