1990 Yamaha Radian CA (YX600AC) Meter Diagram

← All diagrams

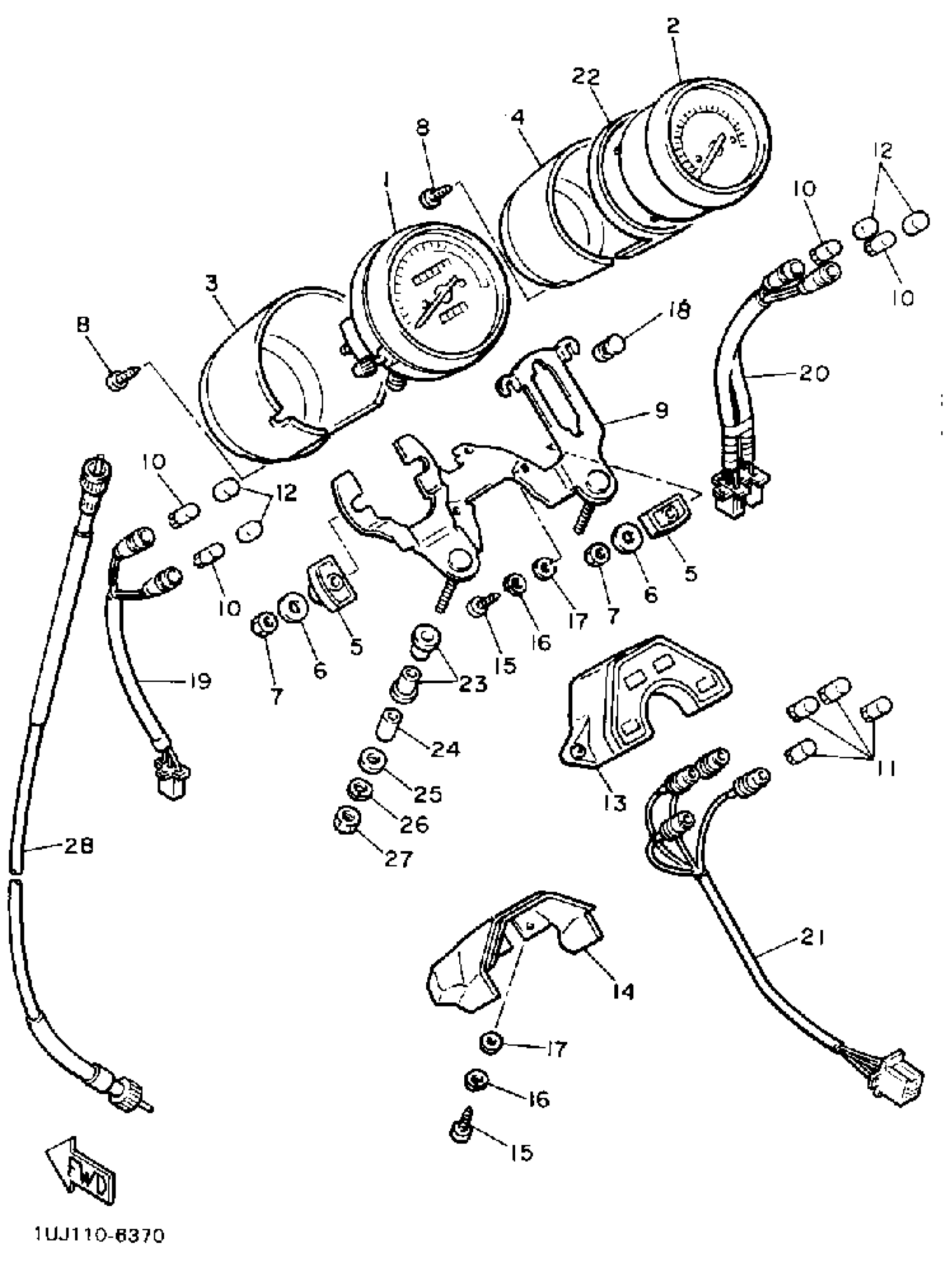

Find the part on the Meter diagram for your 1990 Yamaha Radian CA (YX600AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Radian CA (YX600AC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

2JE-8351A-G0-00

1
Out of stock

2

TACHOMETER ASSEMBLY

1UF-8354A-00-00

1
Out of stock

3

COVER, SPEEDOMETER

1FK-83507-00-00

1
Out of stock

4

COVER, TACHOMETER

1UF-83508-00-00

1
Out of stock

5

DAMPER

1FG-83523-00-00

—

$8.82

In stock

6

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

9

BRACKET, METER

1UJ-83519-00-00

1
Out of stock

10

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

11

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

12

TUBE

1FK-83535-00-00

1
Out of stock

13

PILOT LIGHT ASSY

4KE-83530-10-00

1
Out of stock

14

COVER, METER 2

1UJ-83579-00-00

1
Out of stock

15

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

18

DAMPER

29L-83523-00-00

—

$9.06

In stock

19

SOCKET CORD ASSEMBLY

1UJ-83509-00-00

1
Out of stock

20

SOCKET ASSEMBLY

1UF-83586-00-00

1
Out of stock

21

SOCKET CORD ASSEMBLY

1UJ-83520-00-00

1
Out of stock

22

DAMPER

1UF-83541-00-00

1
Out of stock

23

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

24

COLLAR (877)

90387-06249-00

—
Out of stock

25

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

26

WASHER, SPRING

92907-06100-00

—
Out of stock

27

NUT(6TA)

95317-06600-00

—

$2.69

In stock

28

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock
