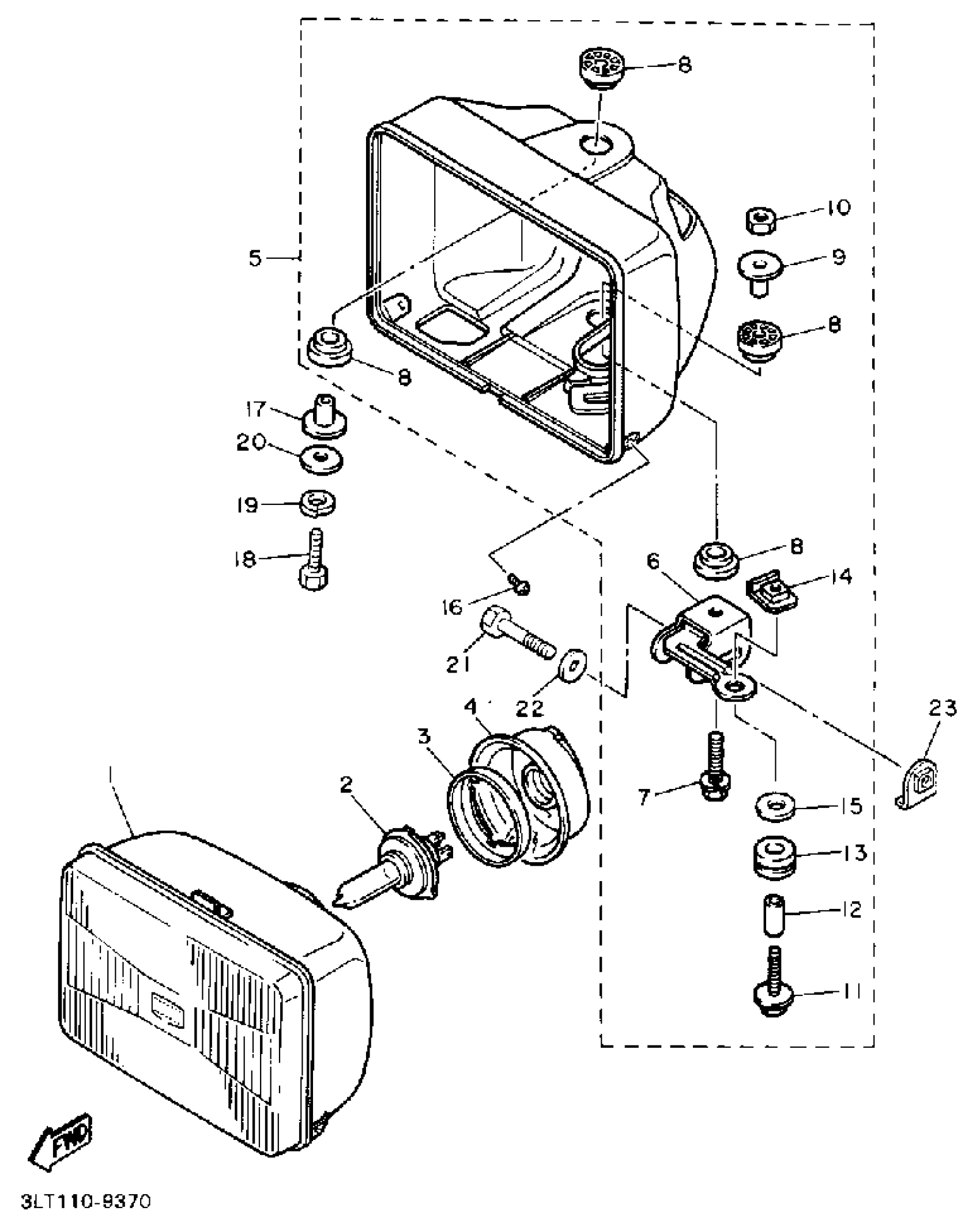

Find the part on the Headlight diagram for your 1990 Yamaha Radian CA (YX600AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Radian CA (YX600AC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSEMBLY

1UF-84320-00-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

5V2-83414-00-XX

1
Out of stock

3

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

4

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

5

BODY ASSEMBLY

1UF-84330-01-00

1
Out of stock

6

. STAY, HEADLIGHT 2

1UF-84319-00-00

1
Out of stock

7

. BOLT, SPECIAL

1UF-84337-00-00

1
Out of stock

8

. DAMPER, HEADLIGHT 1

1UF-84366-00-00

1
Out of stock

9

COLLAR, BODY FTNG

1UF-84338-00-00

1
Out of stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock

11

. BOLT, SPECIAL

1UF-84137-00-00

1
Out of stock

12

. COLLAR

1UF-84307-00-00

1
Out of stock

13

. DAMPER, HEADLIGHT

1UF-84345-00-00

1
Out of stock

14

. NUT, BODY FITTING

1UF-84316-00-00

1
Out of stock

15

. WASHER, PLATE

90201-082M8-00

1
Out of stock

16

SCREW, PAN HEAD(1AA)

90157-05084-00

—

$3.49

In stock

17

COLLAR, BODY FTNG

1UF-84338-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

19

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

20

WASHER, PLATE (12X)

90201-087F0-00

—

$3.71

In stock

21

BOLT, SOCKET

91317-08045-00

—

$6.82

In stock

22

WASHER(6TC)

92907-08200-00

—
Out of stock

23

WASHER, SPECIAL

1UF-84327-00-00

1
Out of stock
