1986 Yamaha YTZ250S Side Cover Diagram

← All diagrams

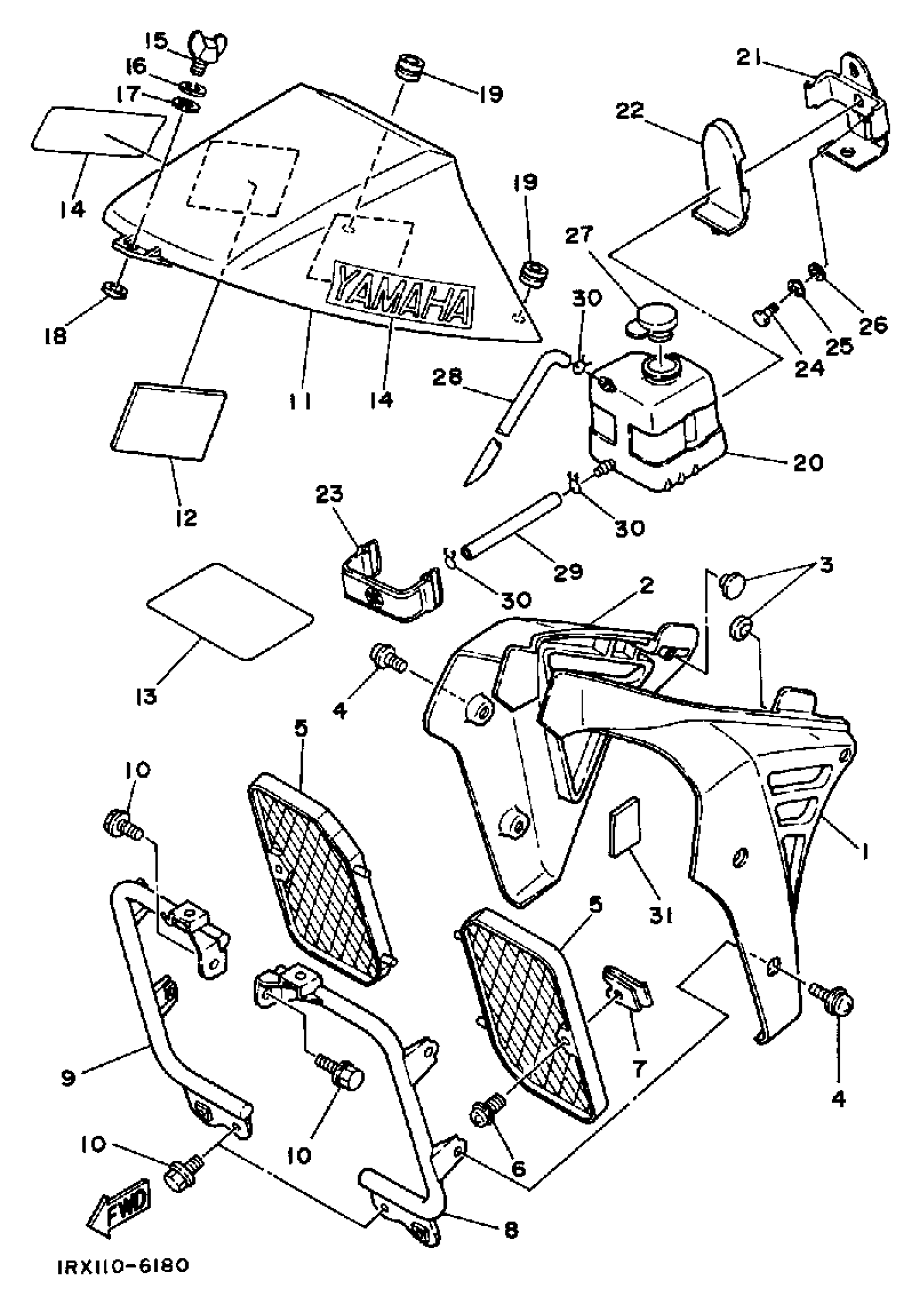

Find the part on the Side Cover diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTZ250S Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

1RX-21711-00-00

1
Out of stock

2

COVER, SIDE 2

1RX-21721-00-00

1
Out of stock

3

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

4

SCREW, WITH WASHER (22W)

90159-05073-00

—

$6.69

In stock

5

PANEL 1

1RX-2172A-00-00

1
Out of stock

6

1

$6.46

In stock

7

NUT

22W-21791-00-00

1

$7.83

In stock

8

STAY, SIDE COVER 1

38W-2172E-00-00

1
Out of stock

9

STAY, SIDE COVER 2

38W-2174E-00-00

1
Out of stock

10

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

11

COVER, SIDE 3

1RX-21731-00-00

1
Out of stock

12

SEAT, BATTERY

5Y1-82122-00-00

1

$6.52

In stock

13

LABEL, SAFETY

(1RX-21659-00-00)

1
Out of stock

14

EMBLEM 1

1RX-21781-00-00

1
Out of stock

15

BOLT, WING (38W)

90122-06021-00

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

18

NUT, RATCH CLAMP (462)

90179-06013-00

—

$6.02

In stock

19

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

20

TANK, RECOVERY

1RX-21871-00-00

1
Out of stock

21

BRACKET, RECOV TANK

1RX-21873-00-00

1
Out of stock

22

DAMPER

1RX-21852-00-00

1
Out of stock

23

BAND, BATTERY

1E6-82131-00-00

—

$21.34

In stock

24

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

25

WASHER(6TA)

92907-06700-00

—

$1.32

In stock

26

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

27

CAP

10V-21875-00-00

—
Out of stock

28

BREATHER

1RX-21744-00-00

1
Out of stock

29

HOSE (L865)

90445-09021-00

—

$30.76

In stock

30

CLIP 101235600

90467-08003-00

—

$6.13

In stock

31

DAMPER

(1RX-21746-00-00)

1
Out of stock
