1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

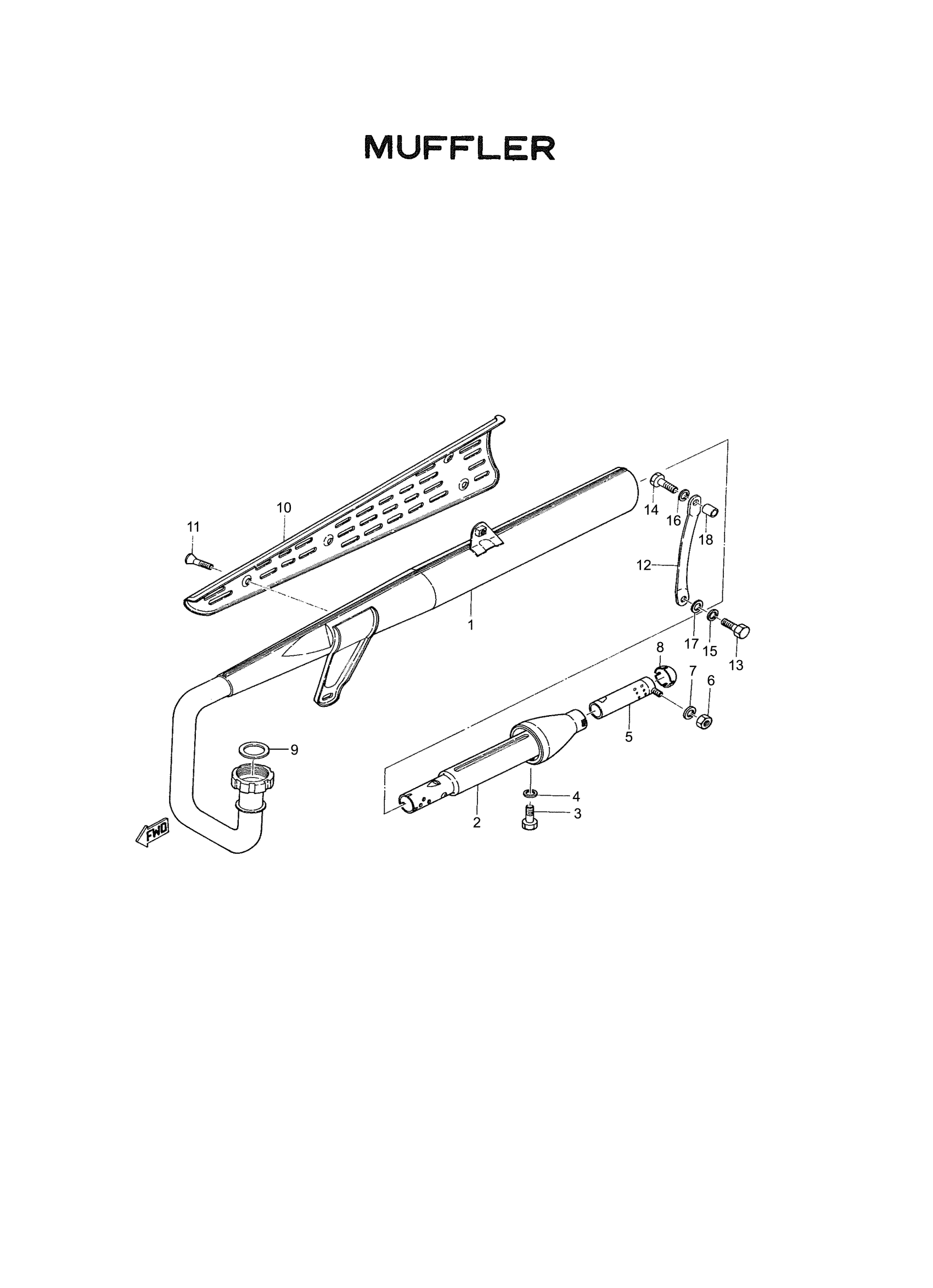

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASY L

205-14610-30-00

1
Out of stock

2

ARRESTER, SPARK

205-14786-20-00

1
Out of stock

3

BOLT, HEXAGON

97013-05010-00

1

$0.85

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

DIFFUSER

122-14785-20-00

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

CAP, SILENCER

128-14787-10-00

1
Out of stock

9

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

10

SCREW, OVAL HEAD

92603-06008-00

1
Out of stock

11

PROTECTOR, MUFF 1

167-14718-31-00

1
Out of stock

12

STAY, MUFFLER 1

167-14771-00-00

1
Out of stock

13

BOLT

90101-10054-00

1
Out of stock

14

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

WASHER, PLATE

90201-10127-00

1
Out of stock
