1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

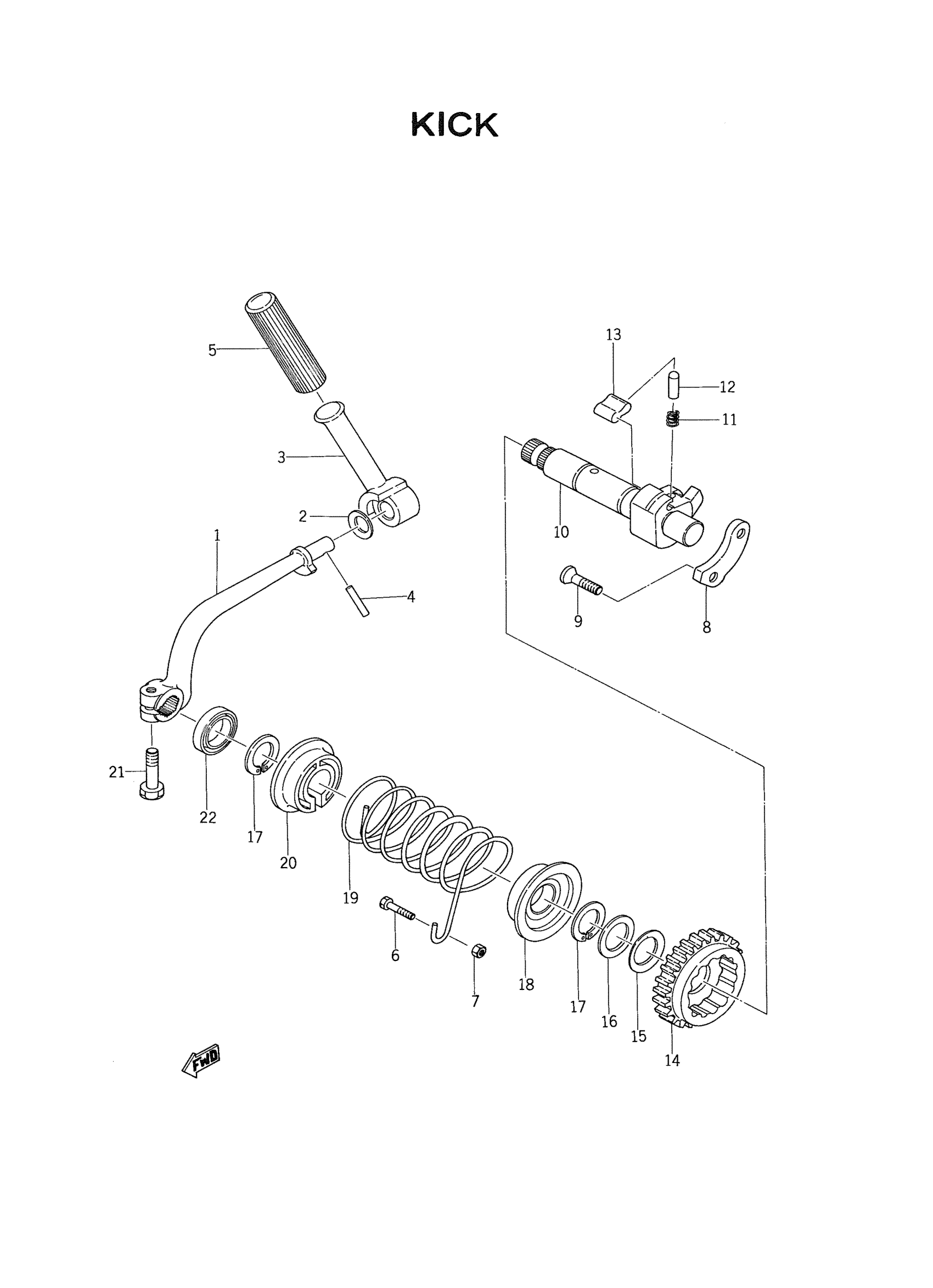

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSY

167-15611-00-00

1
Out of stock

2

WASHER,WAVE

90206-10014-00

1
Out of stock

3

LEVER,KICK

214-15612-09-00

1
Out of stock

4

. PIN, DOWEL

93604-18017-00

1
Out of stock

5

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

6

BOLT

90101-08256-00

1
Out of stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

STOPPER, PAWL

131-15638-00-00

1
Out of stock

9

SCREW, FLAT

98707-06014-00

1
Out of stock

10

AXLE, KICK

132-15661-00-00

1
Out of stock

11

SPRING,COMPRESSION

90501-05020-00

1
Out of stock

12

PIN, STRAIGHT

90250-05006-00

1
Out of stock

13

PAWL, KICK

131-15635-00-00

1
Out of stock

14

GEAR, KICK

132-15641-00-00

1
Out of stock

15

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

16

SHIM

132-15644-00-00

1
Out of stock

17

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

18

GUIDE, KICK SPRING

132-15664-01-00

—
Out of stock

19

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

20

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

OIL SEAL (15X26X6-102)

93109-15001-00

—

$7.42

In stock

23

KICK CRANK ASY

205-15610-00-93

1
Out of stock
