1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Crank Case Diagram

← All diagrams

Find the part on the Crank Case diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

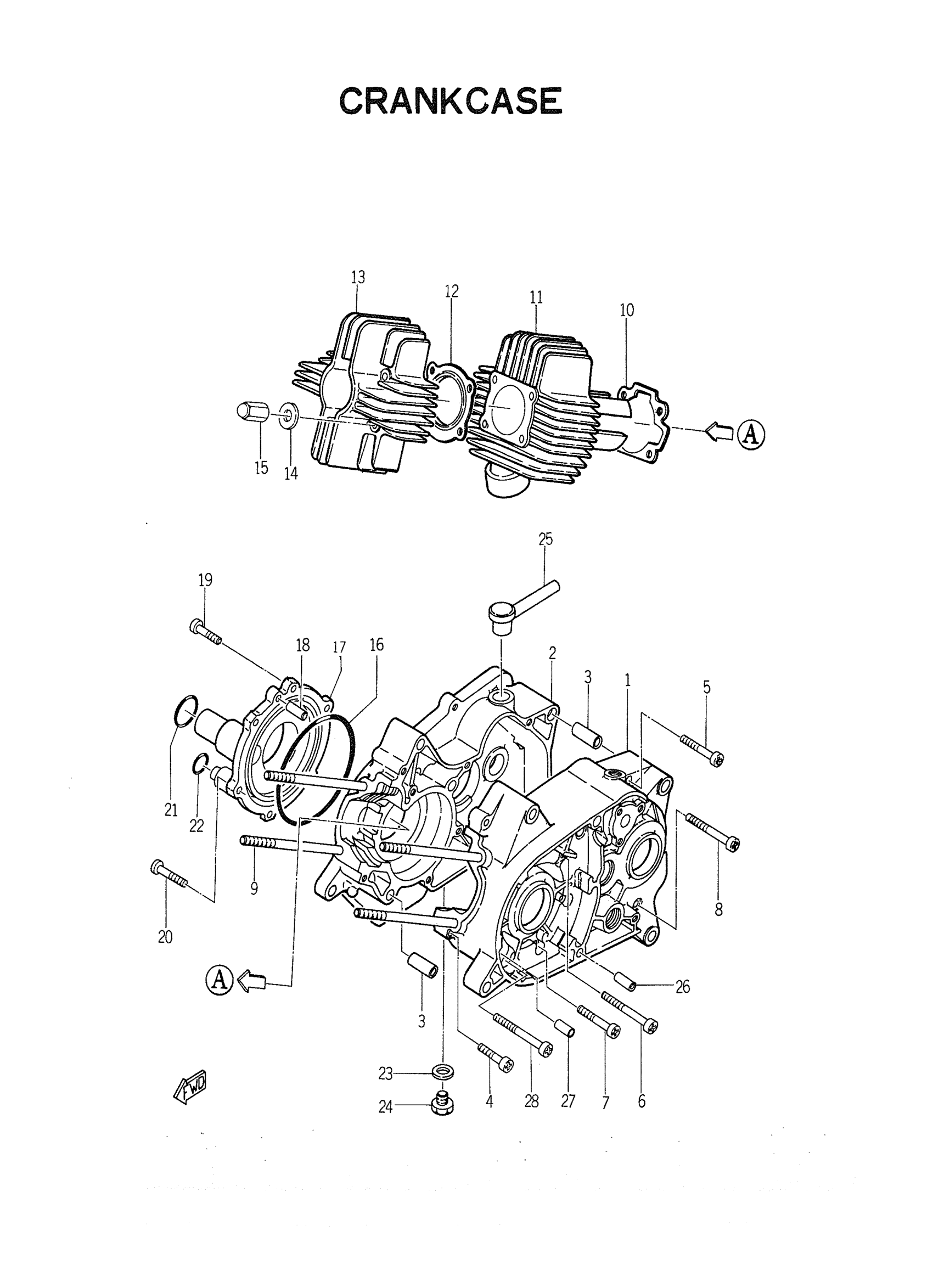

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Crank Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

164-15111-01-00

1
Out of stock

2

CRANKCASE 2

164-15121-01-00

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW PAN HEAD

98580-06565-00

—
Out of stock

7

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

8

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

9

BOLT, STUD 1641136100

90116-07035-00

1
Out of stock

10

GASKET, CYLINDER

131-11351-01-00

1
Out of stock

11

CYLINDER 1

166-11311-00-00

1
Out of stock

12

GASKET, CYLINDER HEAD

531-11181-00-00

—

$15.45

In stock

13

HEAD,CYLINDER 1

205-11111-00-00

1
Out of stock

14

WASHER, PLATE

90201-07077-00

1
Out of stock

15

NUT, CROWN (166-11171-60)

90176-07003-00

1
Out of stock

16

RING,RUBBER

180-13554-00-00

—

$4.35

In stock

16

O-RING

93211-03063-00

1
Out of stock

17

COVER, VALVE

164-13551-01-00

1
Out of stock

17

COVER, VALVE

205-13551-00-00

1
Out of stock

18

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock

19

SCREW, PAN

98507-06014-00

—

$6.18

In stock

20

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock

21

O-RING (122)

93210-23029-00

—

$6.80

In stock

21

O-RING (137)

93210-26033-00

—

$2.57

In stock

22

O-RING (137)

93210-12014-00

—

$5.92

In stock

23

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

24

—

$6.71

In stock

25

BREATHER

206-15371-00-00

1
Out of stock

25

BREATHER

583-15371-00-00

—
Out of stock

26

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

27

PIN, DOWEL

93603-14026-00

—
Out of stock

28

SCREW PAN HEAD

98580-06570-00

—

$17.32

In stock
