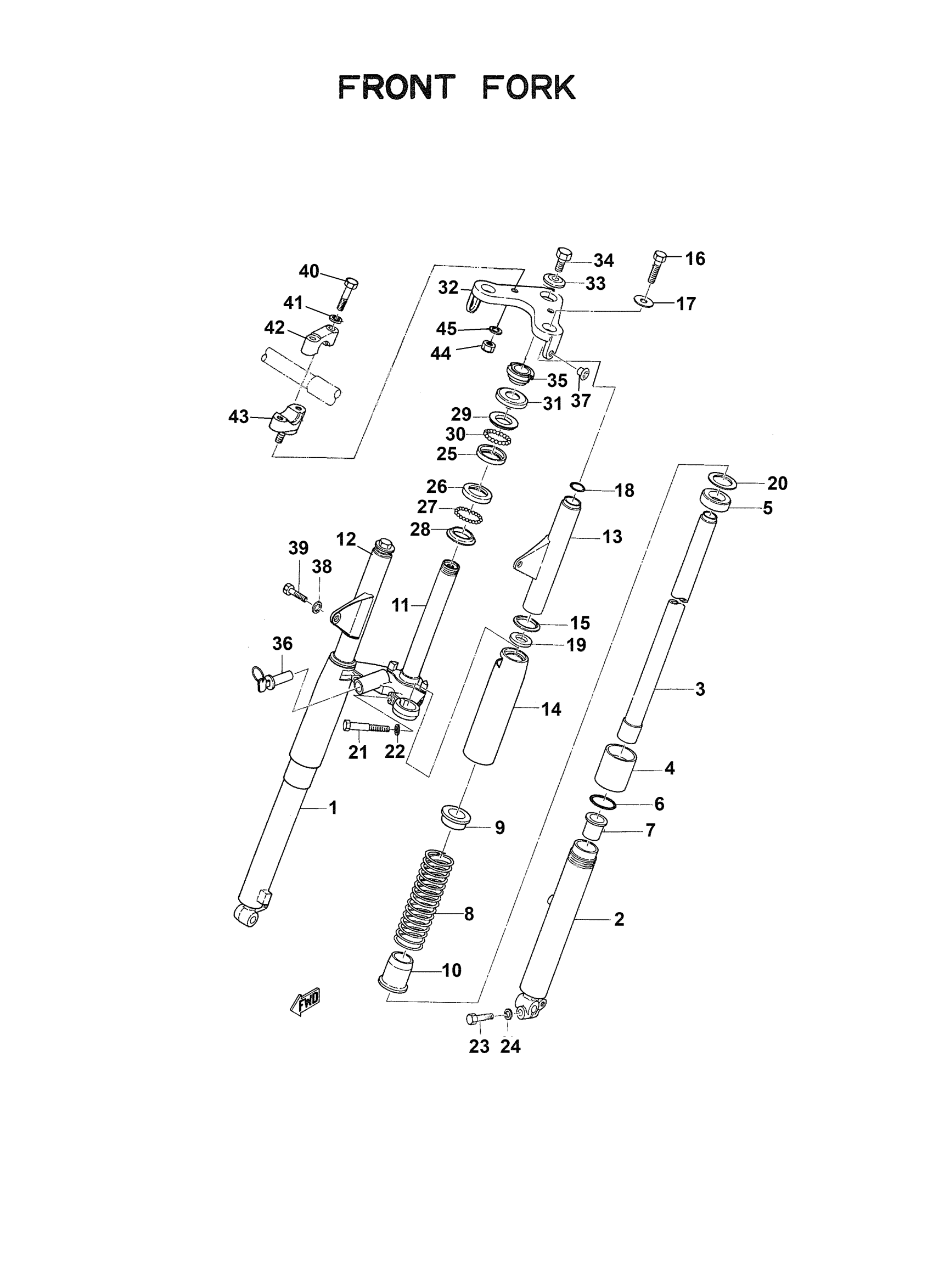

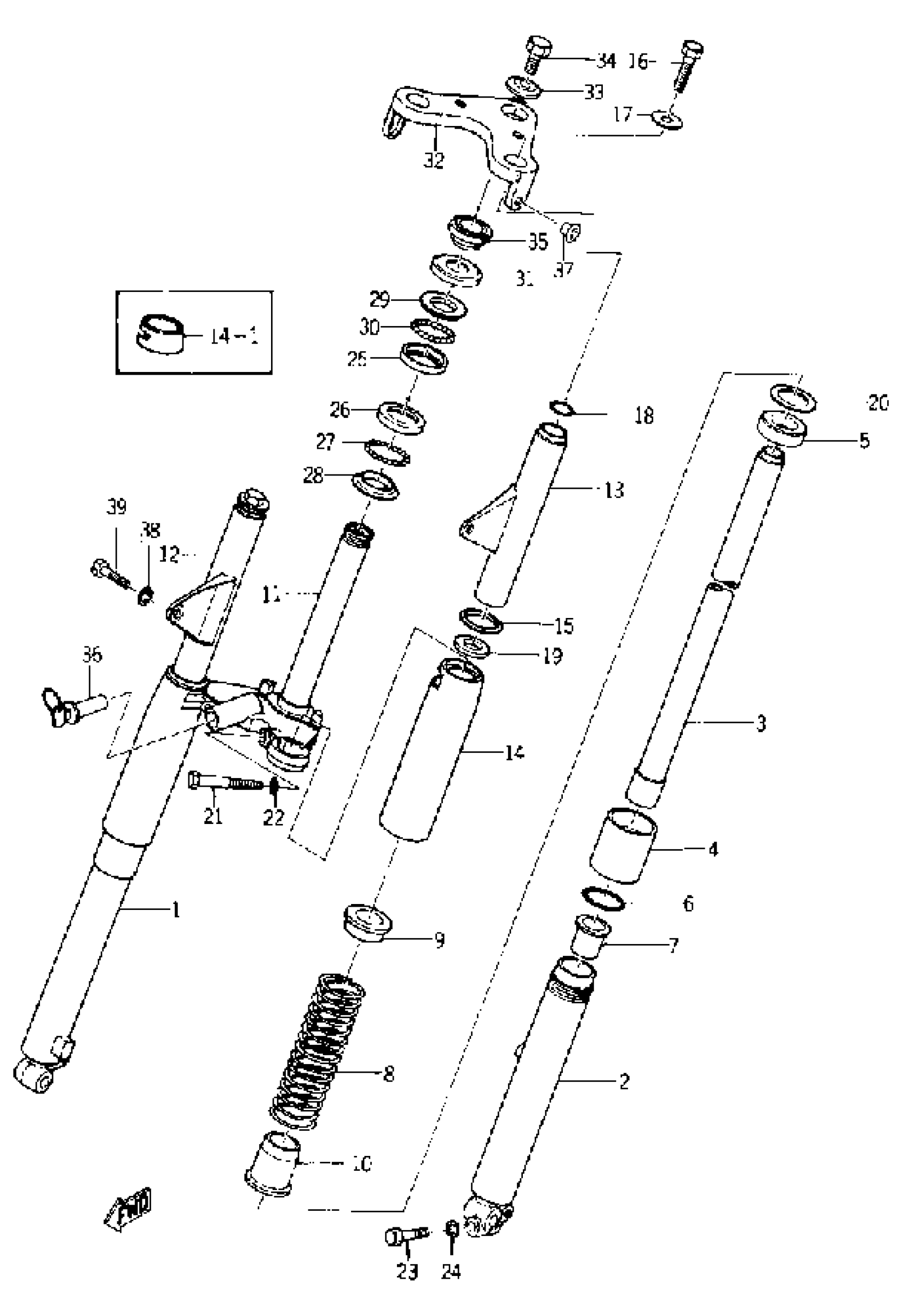

Yamaha YG1T (TRAILMASTER) 124 1963 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(122-23100-00-81)

Unavailable

1

TUBE, OUTER 2

(122-23136-00-81)

Unavailable

1

TUBE, OUTER 2

(124-23136-00-81)

Unavailable

2

TUBE, OUTER 1

(196-23126-40-81)

Unavailable

3

STEERING LOCK ASSEMBLY

(122-23480-01-00)

Unavailable

3

TUBE, INNER 1

(196-23124-40-00)

Unavailable

4

OUTER NUT

(122-23150-00-00)

Unavailable

4

OUTER NUT

(128-23150-00-00)

Unavailable

5

OIL SEAL (5R6)

93110-27010-00

Unavailable

6

. O-RING

122-23147-00-00

Unavailable

7

METAL, SLIDE 1

(357-23125-90-00)

Unavailable

8

SPRING, FRONT FORK

(124-23141-00-00)

Unavailable

9

SEAT, SPRING UPPER

(124-23142-00-00)

Unavailable

10

SEAT, SPRING LOWER

(122-23143-00-00)

Unavailable

11

UNDER BRACKET

(122-23340-00-33)

Unavailable

12

COVER, UPPER 2

(122-23131-00-81)

Unavailable

13

COVER, UPPER 1

(122-23121-00-81)

Unavailable

14

COVER, LOWER 1

(122-23123-00-29)

Unavailable

14

TUBE, OUTER 1

(196-23126-40-81)

Unavailable

15

BOLT, CAP

205-23111-40-00

Unavailable

16

BOLT, CAP

205-23111-40-00

Unavailable

17

WASHER, CAP

207-23112-00-00

Unavailable

18

GASKET

307-23114-00-00

Unavailable

19

PACKING(LAMP STAY)

164-23163-00-00

Unavailable

20

WASHER, OIL SEAL

(124-23146-00-00)

Unavailable

21

BOLT 1

122-23346-02-00

Unavailable

21

BOLT 1

122-23346-02-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

BOLT (682)

97013-08025-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

RACE, BALL 1

BP2-23411-00-00

Unavailable

26

RACE, BALL 1

B6E-23411-00-00

Unavailable

27

BALL

93501-04011-00

Unavailable

28

RACE, BALL 2

B6E-23412-00-00

Unavailable

29

RACE, BALL 2

BP2-23412-00-00

Unavailable

30

BALL

93503-16003-00

Unavailable

31

COVER, BALL RACE

122-23416-00-00

Unavailable

32

CROWN, HANDLE

(122-23435-01-33)

Unavailable

33

WASHER (1YJ)

90209-10160-00

Unavailable

34

BOLT 1222345100

90105-10006-00

Unavailable

35

NUT (122-23453-00)

90179-25051-00

Unavailable

37

UNAVAILABLE IN PRICE BOOK

101-21279-00-

Unavailable

38

WASHER, PLAIN

92990-08200-00

$2.36

39

BOLT, HEXAGON

97013-08020-00

Unavailable
